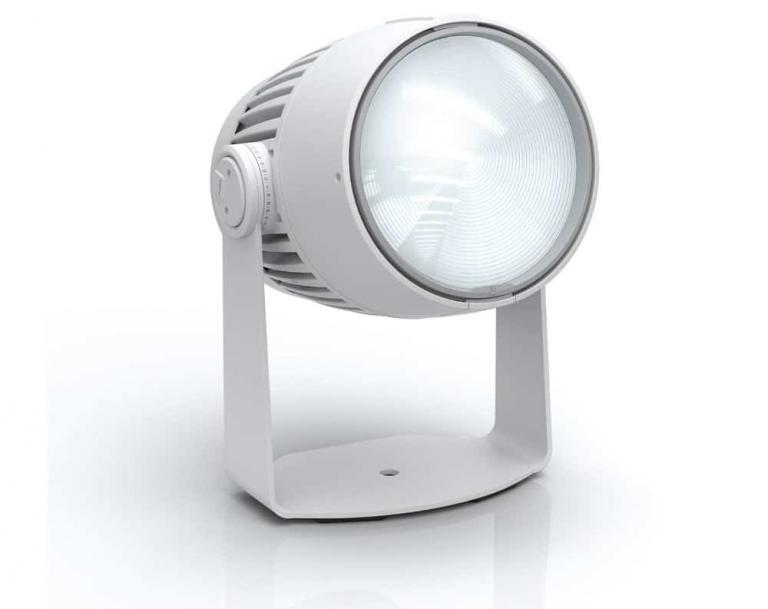

A.SHOW D

5.600K Daylight LED – Powerful Daylight

200W
13.500lm luminous flux
CRI / TLCI 98
IP66 In/Outdoor

1

The Fixture

Daylight Version

Whether architecture, theme parks or cruise ships, the A.SHOW D convinces in every area of application with an extra brightness and white light quality. The spotlight captivates with its homogenous light. Its central 200W daylight LED with 5.600 Kelvin color temperature and a service life of 50.000 hours generates an enormous 13.500lm of luminous flux.

Version

Perfect White

Version

Perfect White

Colors and skin tones are reproduced naturally and unaltered due to the extremely high color rendering of 98 CRI/Ra and 98 TLCI, making the A.SHOW D the perfect tool.

Perfect White

Daylight Version

Perfect White

Colors and skin tones are reproduced naturally and unaltered due to the extremely high color rendering of 98 CRI/Ra and 98 TLCI, making the A.SHOW D the perfect tool.

2

Quick and easy. The lens change

LENSES / R.LOK

Thanks to the specially developed and patented ROXX^® R.LOK technology, the lenses can be changed easily and quickly. This allows the beam angle to be conveniently adjusted, whether from 24°, 36°, 54° or elliptical 21°x27° and 22°x57°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.

An integrated anti-theft device protects against unauthorised removal of the lens.

R.KEY

Lens Code

Lenses

Lenses

Lens Code

R.KEY

Lens Code

A letter code on the lens ring guarantees quick identification of the beam angle when installed.

R.KEY

The adjustment of the inclination and the removal of the headlamp is secured against misuse by the ROXX^® R.KEY (special tool).

Lenses

Lens Code

R.KEY

Lenses/ R.LOK

Thanks to the specially developed and patented ROXX® R.LOK technology, the lenses can be changed easily and quickly. This allows the beam angle to be conveniently adjusted, whether from 24°, 36°, 54° or elliptical 21°x27° and 22°x57°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.

An integrated anti-theft device protects against unauthorized removal of the lens.

Lens Code

A letter code on the lens ring guarantees quick identification of the beam angle when installed.

R.KEY

The adjustment of the inclination and the removal of the headlamp is secured against misuse by the ROXX® R.KEY (special tool).

3

Installation

PG connection panel

For an individual and comfortable installation of the fixtures, the power inputs as well as the DMX input and output are realised via cable glands with PG screw connection and Phoenix connection block.

DMX / 0-10V / RDM

Über zwei IP66 zertifizierte PG-Anschlüsse kann der Scheinwerfer in eine kabelgebunden DMX-Linie eingebunden werden und kommuniziert zudem über bidirektionale RDM-Kommunikation. Zusätzlich steht ein 0-10V Anschluss zur Verfügung mit dem entweder die Lichtintensität des Scheinwerfers über einen 0-10V Dimmer reguliert werden kann oder um das Gerät mit einem Alarm-Kontakt wie einem Wandschalter oder einer Notrufzentrale zu verbinden.

4

Ultra flexible. The accessories

Accessory Holder

The discreet design of the A.SHOW makes it the perfect luminaire even when a stylish appearance is a must. That is why we have placed great emphasis on inconspicuous technical details – for example, the accessory holder is only placed on the luminaire when necessary.

Barndoor

A 360° rotatable 8-bladed barndoor is available for optimal beam control.

Honey Comb

A honeycomb is available to limit stray light and lateral reflections.

Pendant luminaire

The A.SHOW also helps to create a uniform design language as a pendant luminaire. For this purpose, the handle is removed and the mounting points are simply closed with the caps provided. Stylish, isn’t it?

Full Anti-Glare Shield

The Full Anti-Glade Shield eliminates the view of the LED and thus reduces glare and stray light to a minimum.

5

Elektronik & Software

High-resolution dimming

The applied 16-bit technology enables the highest resolution of dimming behaviour. Continuous dimming down to zero without visible jumps is guaranteed.

Dimmer curves

Four selectable dimmer curves with adjustable response are also available.

Flicker-free

Six adjustable PWM frequencies up to 25kHz guarantee a flicker-free camera image even when taking high-speed recordings.

Timer

Via the internal timer function, the stand-alone mode can be conveniently faded in and out after the fixture is switched on, without the need for an external control. Simultaneously, the timer function is available via cable as well as via wireless DMX for master & slave operation.

6

Always well shielded

ROXX^® products are designed for permanent outdoor use and are equipped with additional C5-M corrosion protection and enhanced IP66 device protection thereby providing the crucial extra for a wider range of applications. In addition to architectural or theme park applications, even fixed installations in coastal or offshore areas with high salt exposure can be reliably implemented over long periods of time.

7

User-friendly down to the last detail

The OLED display ensures quick configuration of the headlamps. The backlit and touch sensitive buttons allow safe navigation even in dark surroundings. A convenient overhead installation of the spotlight can be realised through the automatic display flip function. 

Daylight Version

Tageslicht mit einer festen Farbtemperatur von 5.600Kelvin

IP 66

Das Gerät ist vollständig gegen Eindringen von Staub und starkem Strahlwasser aus beliebiger Richtung geschützt

C5-M coating

Erhöhter Korrosionsschutz für eine bedenkenfreie Festinstallation der Scheinwerfer in Küstennähe und Offshore-Bereichen mit hoher Salzbelastung

Dimmer-Kurven

Vier hochauflösende Dimmerkurven und einstellbares Ansprechverhalten zum Anpassen an die jeweilige Anwendung.

Master & Slave

Ist ein Gerät an erster Position der Kette als Master eingestellt, übernimmt es die Steuerung der nachfolgneden “Slave” Scheinwerfer

Verschiedene Abstrahlwinkel

Verschiedene Abstrahlwinkel durch optionale Linsen

Flickerfrei

Sechs einstellbare PWM Frequenzen bis zu 25kHz garantieren einen flickerfreien Betrieb im Kamerabild, selbst bei High-Speed Aufnahmen

Quicklight Funktion

Die Quick-Light Funktion ermöglicht direkten Zugriff auf den Dimmer. So können Scheinwerfer an Ort und Stelle einfach eingerichtet werden, schon bevor ein DMX Signal anliegt

Green Solution

Die lange Lebensdauer der LED und die hohe Energieeinsparung machen dieses Gerät besonders umweltfreundlich

Timer

Über die interne Timerfunktion können die Stand Alone Modi nach dem Einschalten des Scheinwerfers bequem ein- und ausgedimmt werden, ohne das eine externe Steuerung benötigt wird

OLED Display

OLED Display mit vier berührungsempfindlichen Bedienfeldern, Backlight- und Autoflip Funktion für eine bequeme und einfache Konfiguration

RDM fähig

Remote Device Management für bi-direktionale Kommunikation über das DMX-Netzwerk, zum externen programmieren und überwachen.

Temperaturgesteuerter Lüfter

Temperaturgesteuerter Lüfter für einen optimierten und geräuschslosen Betrieb

16-Bit Technologie

16-bit Technologie für hochauflösende Farbmischung und Dimmverhalten

Intertek

Neben den europäischen Richtlinien ist das Produkt zusätzlich ETL zertifiziert und erfüllt somit auch den einschlägigen Sicherheitsnormen und Anforderungen für Nordamerika

Technical Data

Photometrics

LED expected lifetime	50.000 hours
Lightsource	1x200W Daylight
Type of optical system	reflector + interchangable lens plates
LED PWM Frequency	selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz
Beam angles (50%)
	24° (with narrow lens)
	36° (with medium lens)
	54° (with wide lens)
	21°x27° (with elliptical narrow lens)
	22°x57° (with elliptical wide lens)
Maximum Field angles (10%)
	38° (with narrow fresnel lens)
	69° (with medium fresnel lens)
	85° (with wide compound-eye lens)
	41°x51° (with elliptical-narrow lens)
	48°x82° (with elliptical-wide lens)
Color temperature range	fixed 5.600K
CRI / Ra	98
TLCI	98
TM-30-15	Rf 94 / Rg 103
Efficancy	61,55 lm/W
Luminous flux	13.222 lm
illuminance Lux @ 5m (narrow lens)	1.989 lx
illuminance Lux @ 5m (medium lens)	743 lx
illuminance Lux @ 5m (wide lens)	430 lx
illuminance Lux @ 5m (elliptical-narrow lens)	1.340 lx
illuminance Lux @ 5m (elliptical-wide lens)	641 lx

Dimensions & Weight

IP class	IP66
Corrison class	C5-M (ISO 12944)
Body material	Aluminium die-cast
Lens material	Tempered glass front
Net dimensions (w x h x d)	231 x 311 x 258 mm
Physical Head Straigt Up Height	339 mm
Net dimensions inches	9,1 x 12,2 x 10,2 inches
Net weight	5,7 kg (12,6 lbs)
Tilt	360°
Tilt Locking System	Secure locking system due special R.LOK tool (optional), angle indicator

Electrical Data

AC power, max.	90 – 285 V 50/60Hz
AC Power, nominal	100 – 260 V 50/60Hz
Electrical Protection	Overload protection with automatic recover
Max Inrush Current	50A
Max power consumption	220W
Typical power consumption	160W
Power factor	0,95 PF (230 V) / 0,99 PF (100V)
Power Supply Unit	Inbuilt auto-ranging electronic switch-mode

Operation & Controller

DMX Functions	Dimmer, Dimmer Fine, Shutter, Duration, Device Settings
DMX channels	1CH, 2CH, 3CH, 4CH
DMX modes	4
Protocol	CRMX optional
	USITT DMX512A
	RDM ANSI E1.20
	Bluetooth optional
Setting and addressing	OLED graphical display / 4 controls
	RDM ANSI E1.20
Standalone mode	Quick Color, Timer
Wireless DMX	Lumenradio with RDM (optional)
indicator	OLED graphical display
controls	4 touch sensitive, backlighted controls
Strobe	0-20Hz
DMX & 0-10 V I/O	cable bushing thru IP66 rated PG connection, including Phoenix type terminal block
Power Input	cable bushing thru IP66 rated PG connection, including Phoenix type terminal block

Installation

Mounting point	centric M12 hole
Orientation	Any
Rigging possibilities	Hanging or ceiling / pendant mount (Pendant blind caps included)
Safety features	rear mount for safety wire
Minimum distance from flammable materials	0,3 meters (11,8 inch)

Thermal Characteristics

Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	95%
Temperature range, Operating	-20°C to 45°C
Temperature range, Start-up	-20°C to 50°C
Temperature range, Storage	-20°C to 80°C
Thermal Protection	Automatic overtemperature protection

Included / Optional

Included items	2x radiator caps for pendant installation
	2m power cable
Optional Accessories	Multiple Lens Plates (circular & elliptical), Accessory Adapter, 8-Way Barndoor, Honey Comb, Full Anti-Glare Shield, Gel-Frame, R.KEY
Color options	White – RAL 9010 (Standard)
	Black – RAL 9004
	Custom color – any RAL

Compliance

CE – 2014/30/EU: EMC Directive

EN 55103-2

EN 55015

EN 61547

EN 61000-3-2

EN 61000-3-3

EN 55032

CE – 2014/35/EU: Low Voltage Directive

EN 60598-1

EN 60598-2-17

EN 62471

EN 60529

RoHS2 Directive

2011/65/EU

ETL C/US

FCC

UKCA

Order Number

A.SHOW	Code
A.SHOW T Black	11302001
A.SHOW T White	11302002
A.SHOW T Custom	11302003
A.SHOW FC Black	11302101
A.SHOW FC White	11302102
A.SHOW FC Custom	11302103
A.SHOW TW+ Black	11302201
A.SHOW TW+ White	11302202
A.SHOW TW+ Custom	11302203
A.SHOW D Black	11302301
A.SHOW D White	11302302
A.SHOW D Custom	11302303

Accessories	Code
A.SHOW Lens Narrow (grey)	11307001
A.SHOW Lens Medium (grey)	11307101
A.SHOW Lens Wide (grey)	11307201
A.SHOW Lens Elliptical Narrow (grey)	11307301
A.SHOW Lens Elliptical Wide (grey)	11307401
A.SHOW Accessory Holder (white)	11907402
A.SHOW Barndoor (white)	11907502
A.SHOW Honey Comb	11907602
SHOW Gel Frame (black)	11907701
Omega Bracket ST (black)	90900002
SHOW Full Anti-Glare Shield (white)	11308402
SHOW Full Anti-Glare Shield (custom)	11308403
R.KEY	90900004
