A.SHOW FC

Single-Source LED – Intense colors & variable white



  • 230W / 4 color LED
  • 9.000lm luminous flux
  • IP66 In/Outdoor

1

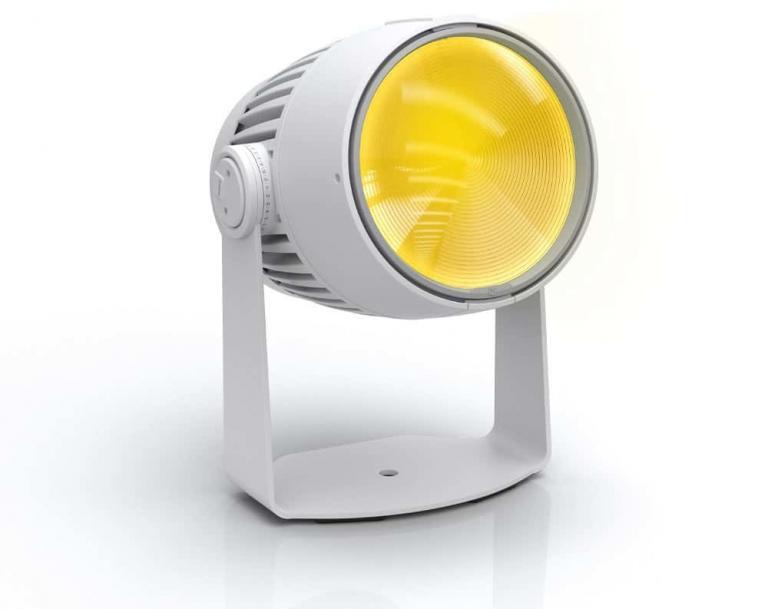

The Fixture



FC Version ROXX® Color Calibration FC Version Whether architecture, theme parks or cruise ships, the A.SHOW FC convinces in every area of application with a very balanced, luminous light without any color shadows, strong and saturated colors, as well as warm pastels. Version Color Range Color Range Color Range Version ROXX® Color Calibration Adding Lime closes the gap between RGB, extends the color spectrum and improves the white light quality. Therefore, the A.SHOW FC enables a great CRI/Ra therefore ensuring natural color reproduction.

The color temperature can be easily adjusted to any camera application using +/- green.
Color Range
ROXX Color Calibration Color Range Version ROXX® Color Calibration ROXX® Color Calibration ensures excellent white tones (CCT 2.000-10.000K), precisely on the black body curve. Similarly, color matching is performed across the entire color spectrum, ensuring uniform colors across all ROXX® fixtures.

The special ROXX® algorithm enables a user-friendly control of the 4 color LED via only three channels, both in RGB or HSI mode.
ROXX® Color Calibration

2

Quick and easy.
The lens change



Linsen LENSES / R.LOK Thanks to the specially developed and patented ROXX® R.LOK technology, the lenses can be changed easily and quickly. This allows the beam angle to be conveniently adjusted, whether from 17°, 35°, 59° or elliptical 16°x24° and 18°x57°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.

An integrated anti-theft device protects against unauthorised removal of the lens.
R.KEY Lens Code Lenses
Color Code Lenses Lens Code R.KEY Lens Code A letter code on the lens ring guarantees quick identification of the beam angle when installed. Linsen R.KEY The adjustment of the inclination and the removal of the headlamp is secured against misuse by the ROXX® R.KEY (special tool). Lenses Lens Code R.KEY

3

Emergency lighting & installation

PG connection panel

For an individual and comfortable installation of the fixtures, the power inputs as well as the DMX input and output are realised via cable glands with PG screw connection and Phoenix connection block.

Emergency lighting

An additional 24V-48V emergency power connection for a redundant power supply is also available. The floodlight detects the incoming power source and automatically switches to emergency lighting using daylight (5.600 Kelvin) if required.

DMX / RDM

The fixture can be integrated into a wired DMX line via two IP66 certified PG connectors and also communicates via bidirectional RDM communication.

4

Ultra flexibel. The accessories

5

Electronics & Software







High-resolution dimming

The applied 16-bit technology enables the highest resolution of dimming behaviour and color mixing. Continuous dimming down to zero without visible jumps or color shifts is guaranteed.

Dimmer curves & Tungsten emulation

Four selectable dimmer curves with adjustable response and redshift function for tungsten emulation are also available.

Flicker-free

Six adjustable PWM frequencies up to 25kHz guarantee a flicker-free camera image even when taking high-speed recordings.

Stand Alone

Elaborate stand-alone modes, including cinema effects, various auto programs, customisable scenes, CCT, LEE adjusted color macros and custom color templates (RGBL) enable great lighting effects without using external lighting controls.

Timer

Via the internal timer function, the stand-alone modes can be conveniently faded in and out after the fixture is switched on, without the need for an external control. Simultaneously, the timer function is available via cable as well as via wireless DMX for master & slave operation.

6

Always well shielded



ROXX® products are designed for permanent outdoor use and are equipped with additional C5-M corrosion protection and enhanced IP66 device protection thereby providing the crucial extra for a wider range of applications. In addition to architectural or theme park applications, even fixed installations in coastal or offshore areas with high salt exposure can be reliably implemented over long periods of time.





7

User-friendly down to the last detail

The OLED display ensures quick configuration of the headlamps. The backlit and touch sensitive buttons allow safe navigation even in dark surroundings. A convenient overhead installation of the spotlight can be realised through the automatic display flip function.



L

Quicklight Function

Quick-light function allows a direct access to dimmer & CCT for easy and fast operation while setting lights.

L

Master & Slave

Once the fixture is set to “Master” and on first postion of the chain, it controls the following “Slave” units.

L

OLED Display

OLED display with four touch-sensitive buttons, backlight- and auto flip function for easy configuration.

ROXX® products are developed and designed in Germany. Always in tight consultation with our customers and experts who will eventually be working with these tools. This ensures innovative, easy-to-use and performance-oriented solutions, which provide added value for our customers.

L

Temperature controlled fan

Temperature controlled fan for optimized and silent operation.

L

Tilt Scale

A scale on the tilt axis allows to prepare the setup already according to plans.

Full Color Version

Multi color LED source delivers smooth pastel- to punchy saturated colors and linear CCT control.

IP 66

The fixture is fully protected against dust and strong water jets from any direction.

ROXX color calibration

ROXX® color calibration guarantees vivid and uniform colors plus excellent whites precisely on the black body curve.

Stand Alone

Extensive stand alone modes for brilliant lighting effects even without the need of external controller.

Dimmer curves

Four high resolution dimming curves and adjustable dimming response to adapt to the respective application.

Master & Slave

Once the fixture is set to “Master” and on first postion of the chain, it controls the following “Slave” units.

Multiple Angles

Multi beam angles due to optional lenses.

Flicker-free

Six selectable PWM frequencies up to 25kHz guarantees flicker free operation in front of camera, even at high-speed recordings.

Quicklight Function

Quick-light function allows a direct access to dimmer & CCT for easy and fast operation while setting lights.

Green Solution

Long life-time of the LED and high energy saving make this product particularly environment-friendly.

Timer

Due the internal timer function the fixtures standalone modes can be easily fade in & out after switching on the device, without the need of external controller.

OLED Display

OLED display with four touch-sensitive buttons, backlight- and auto flip function for easy configuration.

C5-M coating

Increased corrosion protection for fixed installation near the coast and offshore with without hesitation.

RDM enable

Remote Device Management enables bi-directional communication over DMX network, for external programming and monitring functions.

Temperature controlled fan

Temperature controlled fan for optimized and silent operation

Emergency power 24-48V

Integrated 24-48V power socket for emergency light operation.

16-Bit Technology

16-bit technology for high-resolution color mixing and ultra-smooth dimming behaviour.

Intertek

Besides the product compliance for european market this product is also ETL certified and complies to the safety norms and requirements for North-America

Dim to warm

Switchable Dim-To-Warm function to simulate traditional halogen fixtures while dimming down.

Technical Data

Photometrics
LED expected lifetime 50.000 hours
Lightsource 1x230W RGBL
Type of optical system reflector + interchangable lens plates
LED PWM Frequency selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz
Beam angles (50%)
17° (with narrow lens)
35° (with medium lens)
59° (with wide lens)
16°x24° (with elliptical narrow lens)
18°x57° (with elliptical wide lens)
Maximum Field angles (10%)
34° (with narrow fresnel lens)
70° (with medium fresnel lens)
88° (with wide compound-eye lens)
34°x45° (with elliptical-narrow lens)
42°x80° (with elliptical-wide lens)
Color temperature range 2.000K – 10.000K
CRI / Ra 85
TLCI 77
Efficancy (max) 47,61 lm/W
Luminous flux 9.219 lm
illuminance Lux @ 5m (narrow lens) 1.439 lx
illuminance Lux @ 5m (medium lens) 349 lx
illuminance Lux @ 5m (wide lens) 183 lx
illuminance Lux @ 5m (elliptical-narrow lens) 876 lx
illuminance Lux @ 5m (elliptical-wide lens) 372 lx
Dimensions & Weight
IP class IP66
Corrison class C5-M (ISO 12944)
Body material Aluminium die-cast
Lens material Tempered glass front
Net dimensions (w x h x d) 231 x 311 x 258 mm
Physical Head Straigt Up Height 339 mm
Net dimensions inches 9,1 x 12,2 x 10,2 inches
Net weight 5,7 kg (12,6 lbs)
Tilt 360°
Tilt Locking System Secure locking system due special R.LOK tool (optional), angle indicator
Electrical Data
AC power, max. 90 – 285V 50/60Hz
AC Power, nominal 100 – 260V 50/60Hz
Electrical Protection Overload protection with automatic recover
Max Inrush Current 50A
Max power consumption 230W
Typical power consumption 154W
Standby power 6,7W
Power factor 0,92 PF (230 V) / 0,99 PF (100V)
Power Supply Unit Inbuilt auto-ranging electronic switch-mode



Operation & Controller
DMX Functions Dimmer, Dimmer Fine, Shutter, Duration, Hue, Saturation, Red, Red Fine Green, Green Fine, Blue, Blue Fine, Lime, Lime Fine, CCT, Tint, Color Macro, Color Macro Crossfade, Device Settings
DMX channels 3/10CH HSI, 3CH CCT, 3/6/9/11/14CH RGB, 4/8/11/16CH DIRECT
DMX modes 12
Protocol CRMX optional
USITT DMX512A
RDM ANSI E1.20
Bluetooth optional
Setting and addressing OLED graphical display / 4 controls
RDM ANSI E1.20
Standalone mode Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer
Wireless DMX Lumenradio with RDM (optional)
indicator OLED graphical display
controls 4 touch sensitive, backlighted controls
Strobe 0-20Hz
DMX I/O cable bushing thru IP66 rated PG connection, including Phoenix type terminal block
Power Input cable bushing thru IP66 rated PG connection, including Phoenix type terminal block
24V-48V emergency Power In cable bushing thru IP66 rated PG connection, including Phoenix type terminal block



Installation
Mounting point centric M12 hole
Orientation Any
Rigging possibilities Hanging or ceiling / pendant mount (Pendant blind caps included)
Safety features rear mount for safety wire
Minimum distance from flammable materials 0,3 meters (11,8 inch)
Thermal Characteristics
Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 95%
Temperature range, Operating -20°C to 45°C
Temperature range, Start-up -20°C to 50°C
Temperature range, Storage -20°C to 80°C
Thermal Protection Automatic overtemperature protection
Included / Optional
Included items 2x radiator caps for pendant installation
Optional Accessories Multiple Lens Plates (circular & elliptical), Accessory Adapter, 8-Way Barndoor, Honey Comb, Full Anti-Glare Shield, Gel-Frame, R.KEY
Color options White – RAL 9010 (Standard)
Black – RAL 9004
Custom color – any RAL
Compliance
CE – 2014/30/EU: EMC Directive
EN 55103-2
EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
CE – 2014/35/EU: Low Voltage Directive
EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive
2011/65/EU
ETL C/US
FCC
UKCA
Order Number
A.SHOW Code
A.SHOW FC Black 11302101
A.SHOW FC White 11302102
A.SHOW FC Custom 11302103
A.SHOW TW+ Black 11302001
A.SHOW TW+ White 11302002
A.SHOW TW+ Custom 11302003
A.SHOW T Black 11302201
A.SHOW T White 11302202
A.SHOW T Custom 11302203
A.SHOW D Black 11302301
A.SHOW D White 11302302
A.SHOW D Custom 11302303



Accessories Code
A.SHOW Lens Narrow (grey) 11307001
A.SHOW Lens Medium (grey) 11307101
A.SHOW Lens Wide (grey) 11307201
A.SHOW Lens Elliptical Narrow (grey) 11307301
A.SHOW Lens Elliptical Wide (grey) 11307401
A.SHOW Accessory Holder (white) 11907402
A.SHOW Barndoor (white) 11907502
A.SHOW Honey Comb 11907602
SHOW Gel Frame (black) 11907701
Omega Bracket ST (black) 90900002
SHOW Full Anti-Glare Shield (white) 11308402
SHOW Full Anti-Glare Shield (custom) 11308403
R.KEY (white) 90900004
