Benchmark in modern Fresnel lighting
The range includes three perfectly matched models. The ICON F8 with a powerful 800W 6-in-1 LED engine as a true 2K replacement, the ICON F6 with 400W as a true 1K replacement and the compact ICON F4 with 100W as a true 300W replacement — ensuring the right light for every creative challenge.

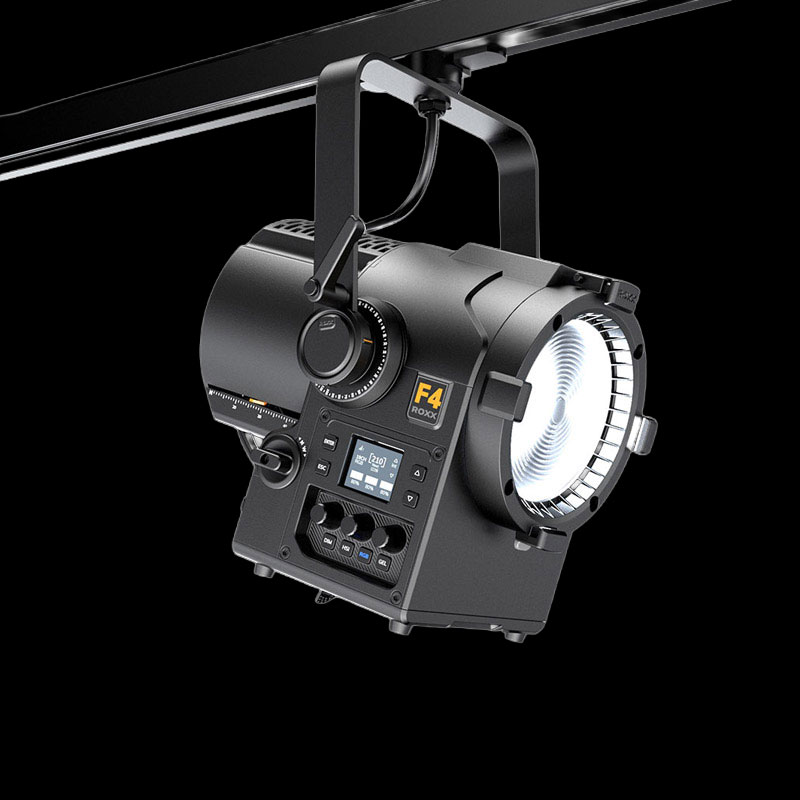

ICON F4 – True 200W Replacement
• 200W 6-in-1 LED delivers a luminous flux of over 2.000 lumens in a compact and lightweight housing
• ROXX ChromaSix LED engine (RGBALC) delivers powerful, saturated to pastel colors
• CRI/Ra up to 98 / TLCI up to 99, TM-30 Rf of 95
• 4” Fresnel lens, delivers authentic Fresnel characteristic
• 10°-50° manual zoom with integrated zoom indicator for fast and accurate focusing
• Fixed front lens for stable center of gravity and compact form factor
• IP65-rated housing with specially capsuled optical lens system to minimize maintenance
• KLSTR technology ready – unique time-saving workflows during device set-up

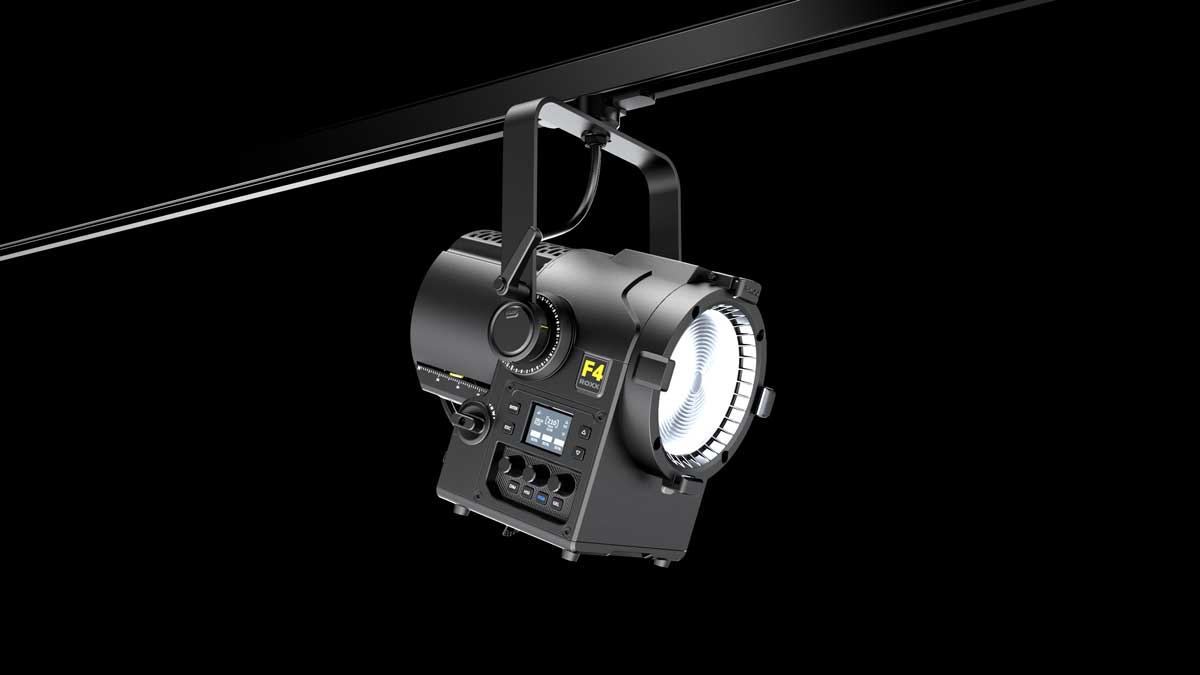

• Optional tracklight adaptor

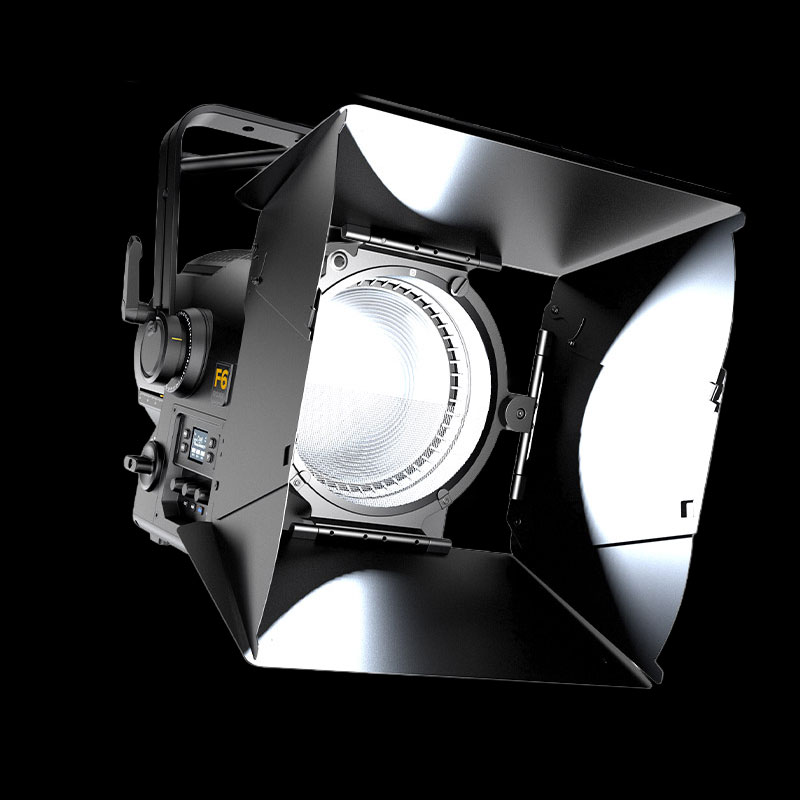

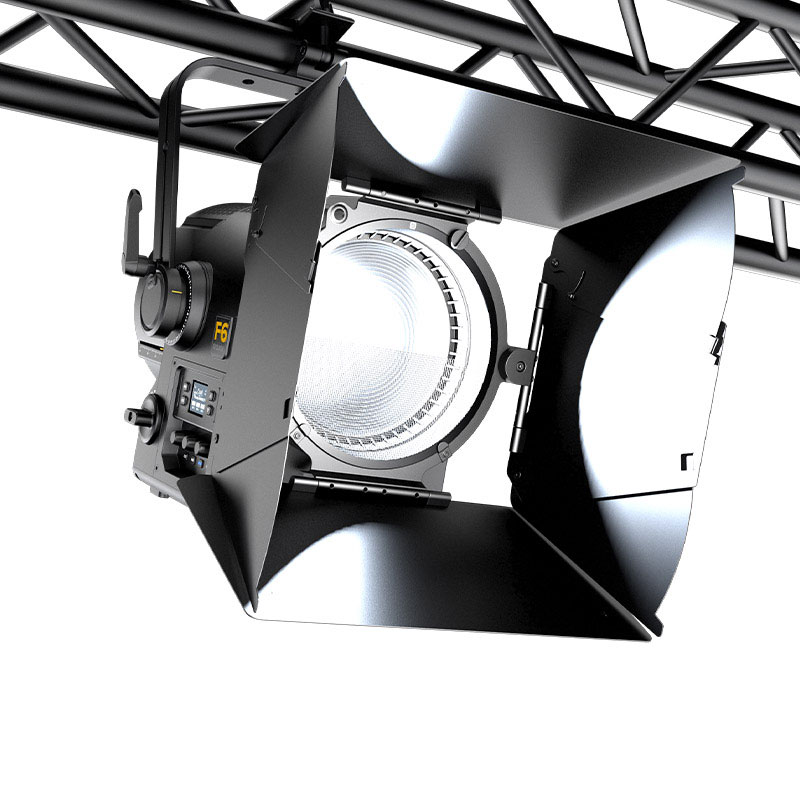

ICON F6 - True 1K Replacement
- 400W 6-in-1 LED delivers an enormous luminous flux of over 12.000 lumens
- ROXX ChromaSix LED engine (RGBALC) delivers powerful, saturated to pastel colors
- CRI/Ra up to 98 / TLCI up to 99, TM-30 Rf of 95
- 6” Fresnel lens, delivers authentic Fresnel characteristic
- 9°-60° manual zoom with integrated zoom indicator for precise and repeatable setups
- Fixed front lens for stable balance and compact dimensions
- integrated reflector
- IP65-rated housing with specially capsuled optical lens system to minimize maintenance
- Quick-release yoke system for tool-free switching between Standard- and PO yoke
- KLSTR technology ready – unique time-saving workflows during device set-up

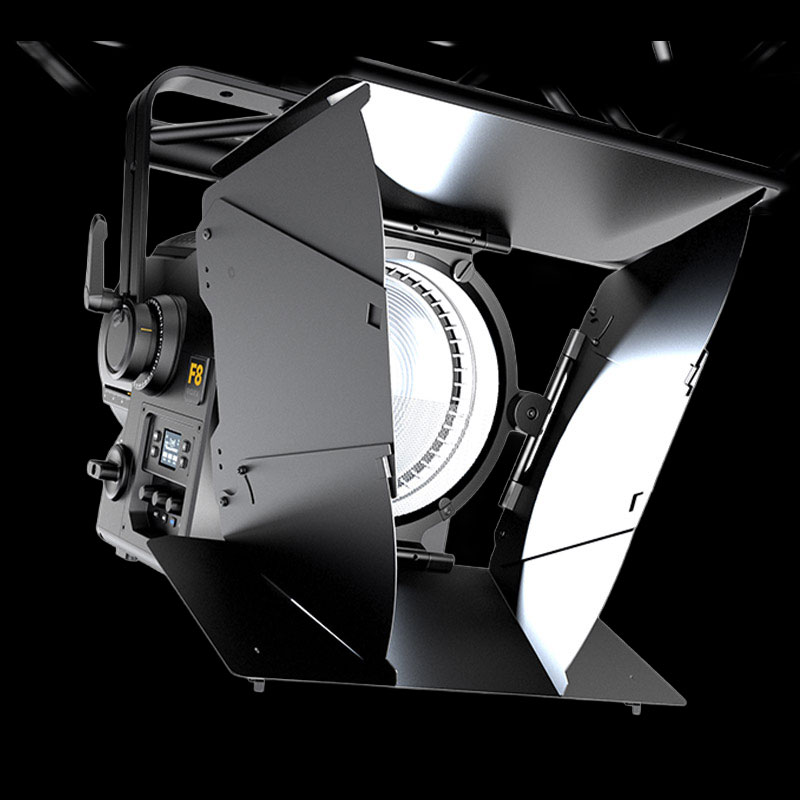

ICON F8 - True 2K Replacement
- 800W 6-in-1 LED delivers enormous luminous flux of up to 20.000 lumens
- ROXX ChromaSix LED engine (RGBALC) delivers powerful, saturated to pastel colors
- CRI/Ra up to 98 / TLCI up to 99, TM-30 Rf of 95
- 8” Fresnel lens, delivers authentic Fresnel characteristic
- 10°-55° manual zoom with integrated zoom indicator for precise and repeatable setups
- Fixed front lens for stable balance and compact design
- integrated reflector
- 18-bit dimming with ultra-smooth fades and tremendous color fidelity
- IP65-rated housing with specially capsuled optical lens system to minimize maintenance
- Quick-release yoke system for tool-free switching between Standard- and PO yoke
- User-friendly TFT display with direct access to all key control modes
- KLSTR technology ready – unique time-saving workflows during device set-up
ROXX ChromaSix LED engine

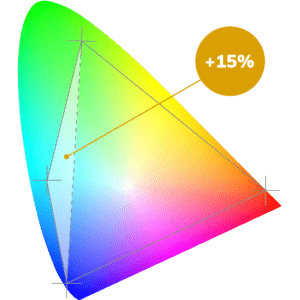

The ROXX ChromaSix LED Engine combines red, green, blue, amber, lime, and cyan to deliver powerful, saturated to pastel colors and a CRI/Ra up to 98 / TLCI up to 99, TM-30Rf of 95, output with exceptional color accuracy. The additional use of amber, lime, and cyan extends the color spectrum by up to 15%, significantly increasing color variety and rendering quality. A centrally bundled 6-color LED architecture ensures a smooth, homogeneous beam with no color shadows.
Near Field Communication (NFC) & KLSTR Technology Ready
Designed for professionals in the lighting industry, the ROXX NFC app offers state-of-the-art control over ROXX devices equipped with Near Field Communication (NFC) technology. With this app, users can manage and configure their devices directly from an iOS or android-compatible device, provided it supports NFC, optimizing workflows and increasing productivity.
All ICON Series fixtures are KLSTR technology ready, enabling a new level of efficiency in DMX-based installations. At least 90 fixtures can be daisy-chained over distances of up to 400 meters, with each luminaire regenerating and putting out a fresh DMX signal. This eliminates cumulative signal degradation and ensures maximum reliability, even in complex setups. In the event of a cable or fixture failure, unaffected sections remain fully operational resulting in zero downtime on set. KLSTR significantly reduces setup time, simplifies troubleshooting, and provides maximum operational security for professional environments.

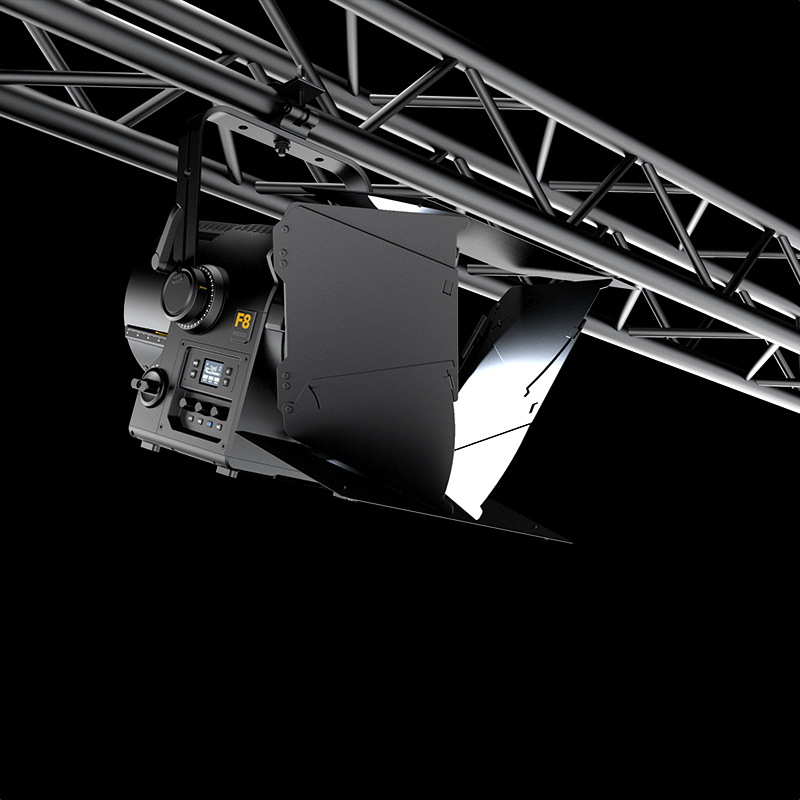

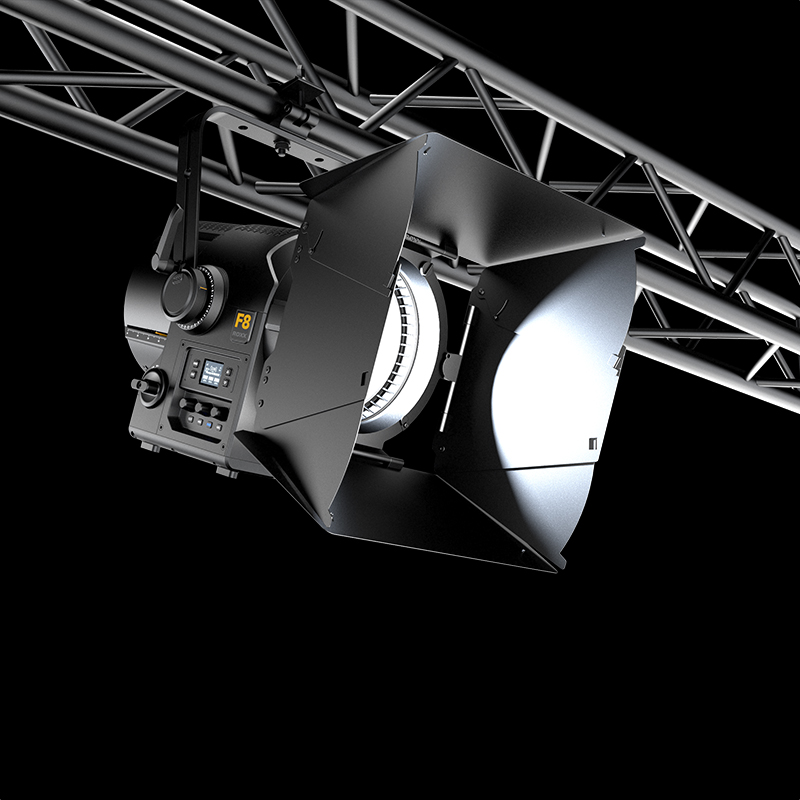

Advanced 8-Way Barndoor

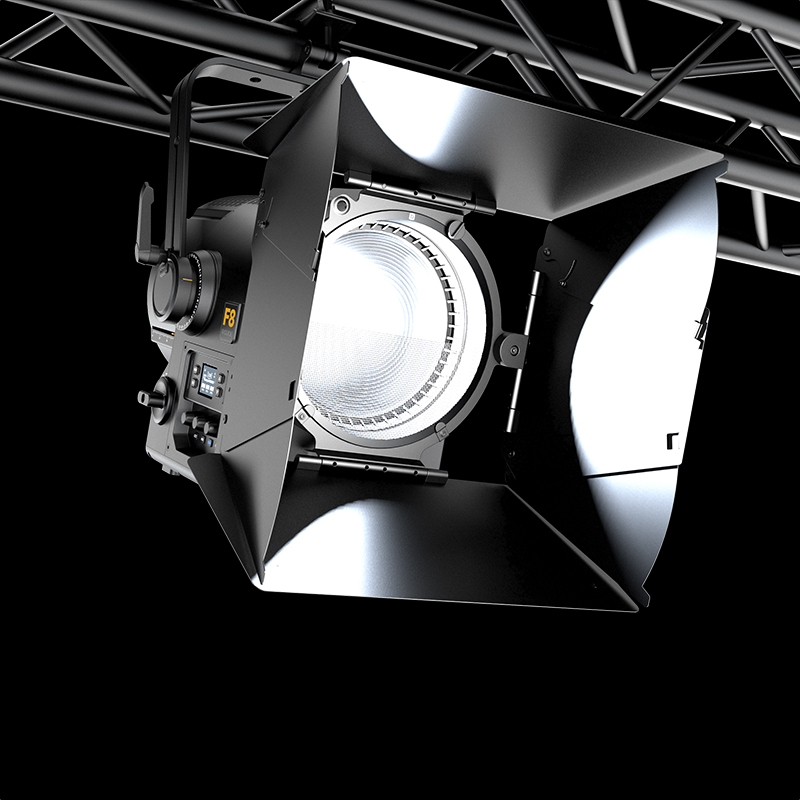

The revolutionary advanced 8-Way Barndoor redefines light shaping. In addition to the classic design with eight blades, two blades can be rotated along the X-axis to correct slanted distortions and transform them into a straight edge, enabling a new level of precision. Whether you need precise light control, subtle shading, or creative shaping, this flexible system adapts to any lighting scenario.
An integrated grid holder further improves control. For example, glare in the front rows of the audience can be avoided by using single or double grids for partial light reduction (grid S 30% D 60%) and sophisticated light gradations – perfect for TV, cinema, or theater applications.
More control. More precision. More creative freedom.
Manual zoom range
Each fixture features a fixed, 100mm, 150mm or 200mm, front lens for a stable center of gravity and compact dimensions, a manual zoom range of up to 9°-60° and an integrated zoom indicator that clearly displays the exact zoom position at all times — making pre-focusing and setup faster, more precise, and fully repeatable.

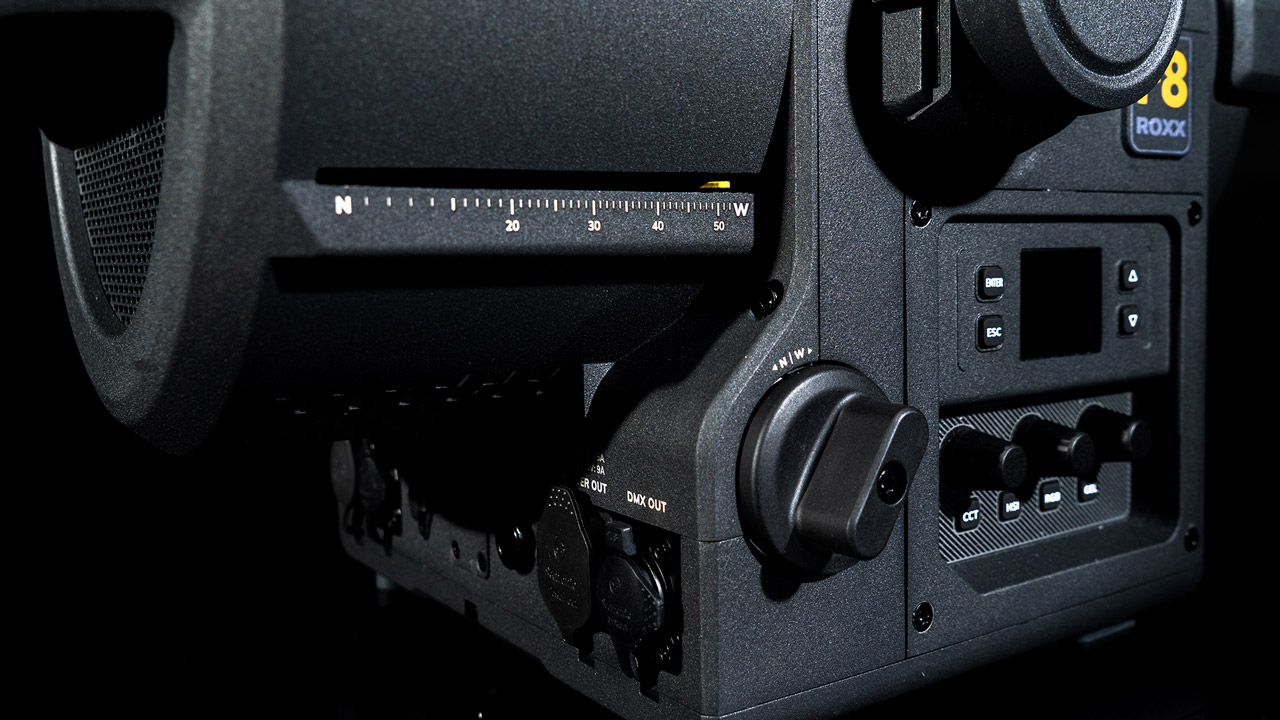

Intuitive control
Control is intuitive and modern with a user-friendly TFT display featuring backlit buttons and direct access to CCT, HSI, RGB, and GELS modes.

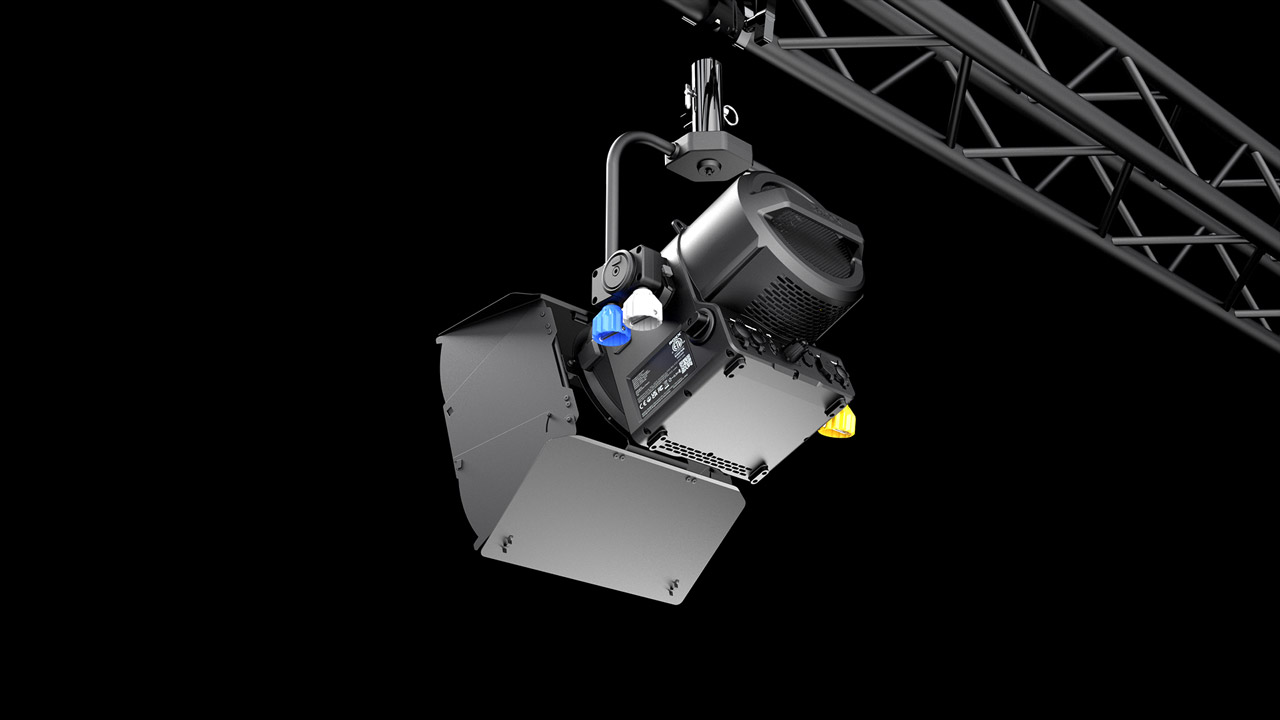

Quick-Release System
A quick-release system for yokes on ICON F6 and F8 allows for effortless changes without any tools – enabling operators to switch between standard and PO yokes in seconds, ensuring maximum flexibility on set. An optional tracklight adapter for ICON F4 greatly expands the range of applications.
TECHNICAL DATA
ICON F4
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 200W RGBALC |
| Type of optical system | Fresnel lens 4″ with manual zoom |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ narrow (50%) | 9,8° |
| Maximum Field angles @ narrow (10%) | 17° |
| Beam angles @ wide (50%) | 50° |
| Maximum Field angles @ wide (10%) | 85° |
| Color temperature range | 2000-10.000K |
| CRI/Ra | up to 98 |
| TLCI | up to 99 |
| Luminous flux @ 5600K (High CRI) narrow / wide | 1100 lm / 2350 lm |
| illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI) narrow / wide | 1110 lx / 110lx |
| Efficancy @ Full (max) | 23,74lm/W |
Dimensions & Weight
| IP class | IP65 |
| IK class | IP08 |
| Body material | Aluminum, Nylon |
| Lens material | Plastic |
| Net dimensions incl.Yoke mm (w x h x d) | 208,05×293,60×223,00 mm |
| Net dimensions incl. Yoke inches (w x h x d) | 8,19×11,56×8,78 inch |
| Net dimensions without Yoke mm (w x h x d) | 163,41×203,60×223,00 mm |
| Net dimensions without. Yoke inches (w x h x d) | 6,43×8,02×8,78 inch |
| Net weight without Barndoors) | tbc |
| Net weight (incl. Barndoors) | tbc |
Electrical Data
| AC Power, max | 100 – 240V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Power Max. Out | tbc |
| Power Linking | tbc |
| Power Factor | tbc |
| Standby Power | tbc |
| Power Thru max. @ 100V | tbc |
| Power Thru max. @ 230V | tbc |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operation & Controller
| DMX channels | 4CH CCT, 7CH CCT, 6CH RGB, 10CH RGB, 18CH RGB, 12CH DIRECT, 14CH DIRECT, 21CH DIRECT, 6CH HSI, 12CH HSI |
| DMX modes | 10 |
| Protocol | USITT DMX512A RDM ANSI E1.20 optional: CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S optional Bluetooth (Low Energy) KLSTR technology ready |
| Setting and addressing | TFTdisplay RDM ANSI E1.20 Near Field Control (NFC) |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
| Wireless DMX | optional: Lumen Radio transmitt & receive function (CRMX) |
| indicator | TFT display |
| controls | 8 backlighted controls |
| Strobe | 0-30Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power I/O | TRUE1 compatible input & link-thru sockets |
| USB Firmware Update | IP65 USB socket |
Installation
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 1x safety eye |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Heatpipe-System, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, AC Operating | -40°C to 45°C |
| Temperature range, Start-Up AC Operating | -20° to 45°C |
| Temperature range, Storage AC only | -40°C to 80°C |
| Temperature range, Battery Operating | -20° to 40°C |
| Temperature range, Start-Up Battery Operating | -20° to 40°C |
| Temperature range, Storage Battery | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | 8-way Barndoor, 2m Power Cable |
| Optional Accessories | Gel Frame, Grids (Double and Single), Tracklight Adaptor |
| Color options | Black – RAL 9004 (Standard), Custom color – any RAL (on request) |
Conformity
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX ICON Series | Code |
| ICON F4 |
15204001
|
| Accessories | Code |
| tba |
ICON F6
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 400W RGBALC |
| Type of optical system | Fresnel lens 6″ with manual zoom |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ narrow (50%) | 9,2° |
| Maximum Field angles @ narrow (10%) | 18,5° |
| Beam angles @ wide (50%) | 60,9° |
| Maximum Field angles @ wide (10%) | 78,5° |
| Color temperature range | 2000-10.000K |
| CRI/Ra | up to 98 |
| TLCI | up to 99 |
| Luminous flux @ 5600K (High CRI) narrow / wide | 3376 lm / 12158 lm |
| illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI) narrow / wide | 3310 lx / 551lx |
| Efficancy @ Full (max) | 29,71lm/W |
Dimensions & Weight
| IP class | IP65 |
| IK class | IP08 |
| Body material | Aluminum, Nylon |
| Lens material | Plastic |
| Net dimensions incl.Yoke mm (w x h x d) | 320 x 405 x 370 mm |
| Net dimensions incl. Yoke inches (w x h x d) | 12,59 x 15,94 x 14,57 inch |
| Net dimensions without Yoke mm (w x h x d) | 238,5 x 276 x 370 mm |
| Net dimensions without. Yoke inches (w x h x d) | 9,39 x 10,97 x 14,57 inch |
| Net weight without Barndoors) | 9kg / 19,84lbs |
| Net weight (incl. Barndoors) | 10,5kg / 23,15lbs |
Electrical Data
| Operating Voltage | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Power Max. Out | 401W @ 230V / 414W @ 100V |
| Power Linking | 5 units @ 230V / 2 units @ 100V |
| Power Factor | Pf 1,0 @ 100V / Pf 0,98 @ 230V |
| Standby Power | 9,8W |
| Power Thru max. @ 100V | 7A (ETL) / 10A |
| Power Thru max. @ 230V | 10A (ETL) / 13A |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operation & Controller
| DMX channels | 44CH CCT, 7CH CCT, 6CH RGB, 10CH RGB, 18CH RGB, 12CH DIRECT, 14CH DIRECT, 21CH DIRECT, 6CH HSI, 12CH HSI |
| DMX modes | 10 |
| Protocol | USITT DMX512A RDM ANSI E1.20 optional: CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S optional Bluetooth (Low Energy) KLSTR technology ready |
| Setting and addressing | TFTdisplay RDM ANSI E1.20 Near Field Control (NFC) |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
| Wireless DMX | optional: Lumen Radio transmitt & receive function (CRMX) |
| indicator | TFT display |
| controls | 8 backlighted controls |
| Strobe | 0-30Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power I/O | TRUE1 compatible input & link-thru sockets |
| USB Firmware Update | IP65 USB socket |
Installation
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 1x safety eye |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Heatpipe-System, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, AC Operating | -40°C to 45°C |
| Temperature range, Start-Up AC Operating | -20° to 45°C |
| Temperature range, Storage AC only | -40°C to 80°C |
| Temperature range, Battery Operating | -20° to 40°C |
| Temperature range, Start-Up Battery Operating | -20° to 40°C |
| Temperature range, Storage Battery | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | 8-way Barndoor, 2m Power Cable |
| Optional Accessories | Gel Frame, Grids (Double and Single), PO Yoke |
| Color options | Black – RAL 9004 (Standard), Custom color – any RAL (on request) |
Conformity
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX ICON F4 | Code |
| ICON F6 |
15206001
|
| Accessories | Code |
| Barndoor, black | 15906101 |
| Half Grid S, black | 15906301 |
| Half Grid D, black | 15906401 |
| Gel Frame, black | 15906501 |
| PO Yoke | 15906201 |
ICON F8
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 800W RGBALC |
| Type of optical system | Fresnel lens 8″ with manual zoom |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ narrow (50%) | 10,8° |
| Maximum Field angles @ narrow (10%) | 21,5° |
| Beam angles @ wide (50%) | 54,7° |
| Maximum Field angles @ wide (10%) | 75,2° |
| Color temperature range | 2000-10.000K |
| CRI/Ra | up to 98 |
| TLCI | up to 99 |
| Luminous flux @ 5600K (High CRI) narrow / wide | 8620 lm / 19411 lm |
| illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI) narrow / wide | 6462 lux / 1021 lux |
| Efficancy @ Full (max) | 33lm/W |
Dimensions & Weight
| IP class | IP65 |
| IK class | IP08 |
| Body material | Aluminum, Nylon |
| Lens material | Plastic |
| Net dimensions incl.Yoke mm (w x h x d) | 380 x 460 x 397 x mm |
| Net dimensions incl. Yoke inches (w x h x d) | 14,96 x 18,11 x 15,63 inch |
| Net dimensions without Yoke mm (w x h x d) | 297 x 333 x 397 mm |
| Net dimensions without. Yoke inches (w x h x d) | 11,69 x 13,11 x 15,63 inch |
| Net weight without Barndoors) | 13 kg / 28,66 lbs |
| Net weight (incl. Barndoors) | 14,75 kg / 32,52 lbs |
Electrical Data
| Operating Voltage | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Power Max. Out | 594W @ 230V / 623W @ 100V |
| Power Linking | 5 units @ 230V / 2 units @ 100V |
| Power Factor | Pf 1,0 @ 100V / Pf 0,98 @ 230V |
| Standby Power | 13W |
| Power Thru max. @ 100V | 5A (ETL) / 8A |
| Power Thru max. @ 230V | 9A (ETL) / 12A |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operation & Controller
| DMX channels | 4CH CCT, 7CH CCT, 6CH RGB, 10CH RGB, 18CH RGB, 12CH DIRECT, 14CH DIRECT, 21CH DIRECT, 6CH HSI, 12CH HSI |
| DMX modes | 10 |
| Protocol | USITT DMX512A RDM ANSI E1.20 optional: CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S optional Bluetooth (Low Energy) KLSTR technology ready |
| Setting and addressing | TFTdisplay RDM ANSI E1.20 Near Field Control (NFC) |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
| Wireless DMX | optional: Lumen Radio transmitt & receive function (CRMX) |
| indicator | TFT display |
| controls | 8 backlighted controls |
| Strobe | 0-30Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power I/O | TRUE1 compatible input & link-thru sockets |
| USB Firmware Update | IP65 USB socket |
Installation
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 1x safety eye |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Heatpipe-System, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, AC Operating | -40°C to 45°C |
| Temperature range, Start-Up AC Operating | -20° to 45°C |
| Temperature range, Storage AC only | -40°C to 80°C |
| Temperature range, Battery Operating | -20° to 40°C |
| Temperature range, Start-Up Battery Operating | -20° to 40°C |
| Temperature range, Storage Battery | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | 8-way Barndoor, 2m Power Cable |
| Optional Accessories | Gel Frame, Grids (Double and Single), PO Yoke |
| Color options | Black – RAL 9004 (Standard), Custom color – any RAL (on request) |
Conformity
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX ICON Series | Code |
| ICON F6 |
15206001
|
| Accessories | Code |
| Barndoor, black | 15908101 |
| Half Grid S, black | 15908301 |
| Half Grid D, black | 15908401 |
| Gel Frame, black | 15908501 |
| PO Yoke | 15908201 |
