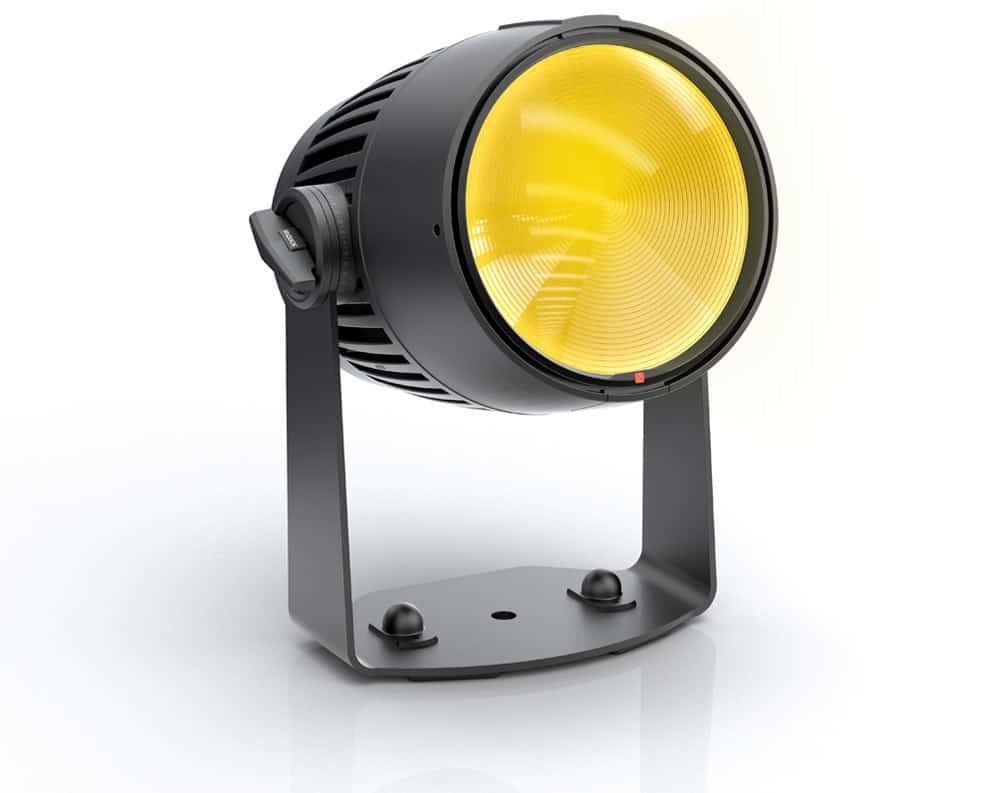

E.SHOW FC

Single-Source LED – Intense colors & variable white

230W / 4 color LED
9.000lm luminous flux
IP65 In/Outdoor

1

The Fixture

FC Version

Whether on stage, at trade-fairs or corporate events, the E.SHOW FC is convincing in every area of application with a very balanced, luminous light without color shadows, strong and saturated colors as well as high white light quality.

Color Range

Version

Mission

ROXX^® Color Calibration

Thorsten Sattler Head of Sales

Mission

"We are convinced that there are many lamps that do their job well. However, we firmly believe that it is possible to improve on many things and, above all, to develop a luminaire that is actually multifunctional".

Color Range

Version

Mission

ROXX® Color Calibration

Color Range

Version

Mission

ROXX^® Color Calibration

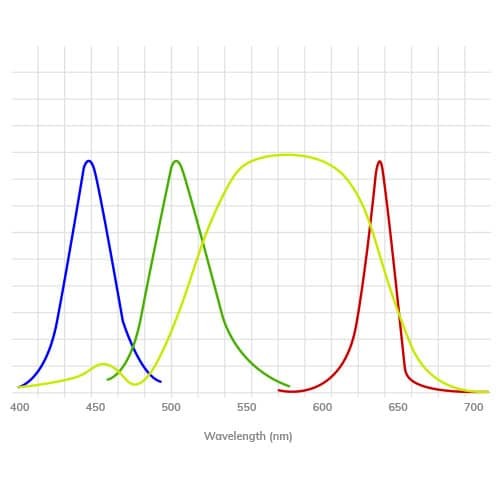

Adding Lime closes the gap between RGB, extends the color spectrum and improves the white light quality. Therefore, the E.SHOW FC enables a great CRI/Ra, therefore ensuring a natural color reproduction.

The color temperature can be easily adjusted to any camera application using +/- green.

Color Range

Color Range

Version

Mission

ROXX^® Color Calibration

ROXX^® color calibration ensures excellent white tones (CCT 2.000-10.000K), precisely on the black body curve. Similarly, color matching is performed across the entire color spectrum, ensuring uniform colors across all ROXX^® fixtures.

The special ROXX^® algorithm enables a user-friendly control of the 4 color LED via only three channels, both in RGB or HSI mode.

ROXX^® Color Calibration

FC Version

Whether stage, trade fair or corporate events the E.SHOW FC convinces in every application area with a very balanced, high lumen light without color shadows and strong, saturated colors as well as high white light quality.

Extended color gamut

The addition of Lime fills the gap between RGB, expands the color spectrum and improves white light quality. Thus, the E.SHOW FC enables a CRI/Ra of 90 and a TLCI of 85, providing natural color rendering.

The color temperature can be easily adjusted to any camera application using the +/green function and Magentashift.

ROXX Color Calibration

ROXX® color calibration ensures excellent white tones (CCT 2,500-10,000K), precisely on the black body curve. Likewise, color matching is performed across the entire range, ensuring uniform colors across all ROXX® fixtures.

The special ROXX® algorithm allows a user-friendly control of the 4-color LED via only 3 channels, both in RGB or HSI mode.

2

Quick and easy. The lens change

There is nothing to show here!

Slider with alias Slider-Linsen-EShow-FC-engl not found.

Linsen / R.LOK

Der Linsenwechsel gelingt dank der speziell entwickelten und patentierten ROXX R.LOK® – Technologie einfach, schnell und ohne Werkzeug. Damit lässt sich der Abstrahlwinkel bequem anpassen, ob 17°, 35°, 59° oder elliptisch 16°x24° und 18°x57°. Durch die 360° Slot-Rotation lassen sich die elliptischen Linsen zudem stufenlos ausrichten.

Color Code

Ein Farb- und Buchstabencode auf dem Linsenring garantiert im installierten Zustand ein schnelles identifizieren des Abstrahlwinkels. Im Touring-Case erleichtert es ein schnelles Auffinden der gewünschten Linse.

Bumper

Der gummierte Linsenring dient zum geschützten Abstellen des Scheinwerfers auf der Gerätevorderseite, ohne dass es zu Kratzern auf der Gehäusefront oder dem Boden kommt.

3

Everything under control, App / Wireless

Smart control via ROXX.APP

The integrated Bluetooth interface allows direct control of the spotlights via tablet or phone with the ROXX.APP without the need for additional hardware.

More about ROXX.APP

Wireless DMX

ROXX^® integrates the latest wireless DMX technology from the Swedish manufacturer Lumenradio and is thus already betting on the soon-to-be-available DMX Mesh™ technology, bringing the knowledge and advantages of mesh networking to the lighting industry.

The CRMX transceiver module integrated in our luminaires realises both wireless DMX reception and its own transmission option, so that a signal is received via radio and passed on via cable, or alternatively via a cable.The CRMX transceiver module integrated into our fixtures provides both wireless DMX reception and transmission, so that a signal can be received via radio and transmitted via cable, or alternatively received via cable and transmitted via radio to other fixtures. At the same time, full bi-directional communication via RDM is supported in receive mode.

DMX / RDM

Via two IP65-certified 5pin XLR sockets, the fixture can be integrated into a wired DMX line and also communicates via bidirectional RDM communication.

4

Ultra flexible. The accessories

Zubehörhalter

The discreet design of the E.SHOW makes it the perfect luminaire even where a pleasing appearance is a must. That is why we have placed great emphasis on inconspicuous technical details – for example, the accessory holder is only placed on the luminaire when needed and otherwise disappears into the case.

Barndoor

A 360° rotatable 8-position barn door is available for optimal beam control.

Honey Comb

A honey comb is available to limit stray light and lateral reflections.

DoPchoice Snapbag®

For absolutely even illumination of subjects in camera applications, ROXX^® E.SHOW allows direct connection of a foldable softbox from the established manufacturer DoPchoice, which was specially developed for the spotlight.

Pendant light

As a pendant luminaire, the E. SHOW also helps to create a uniform design language. For this purpose, the bracket is removed and the mounting points are simply closed with the caps provided. Chic, isn’t it?

Full Anti-Glare Shield

The Full Anti-Glare Shield eliminates the view to the LED and thus reduces glare and stray light to a maximum.

5

Elektronics & Software

High resolution dimming

The 16-bit technology used enables the highest resolution of dimming behaviour and colour mixing. Continuous dimming down to zero without visible jumps or colour shifts is guaranteed.

Dimmer Curves & Tungsten Emulation

Four selectable dimmer curves with adjustable response and redshift function for tungsten emulation are also available.

Flicker-free

Six adjustable PWM frequencies up to 25kHz guarantee a flicker-free camera image, even with high-speed recordings.

Stand Alone

Sophisticated stand-alone modes, including Cinema Effects, various autoprograms, customisable scenes, CCT, LEE customised colour macros, custom colours (RGBL), and custom colour templates enable great lighting effects even without using external lighting controls.

Timer

Via the internal timer function, the stand-alone modes can be conveniently faded in and out after switching on the fixture, without the need for external control. At the same time, the timer function is available both via cable and via wireless DMX for master and slave operation.

6

Always well shielded

An IP65 rating is just what you need to protect your product from dust and rain. Our products are extensively tested for compliance with these standards to make our floodlights multifunctional, safe and durable in any situation.

7

User-friendly down to the last detail

The OLED display ensures quick configuration of the headlights. The backlit and touch-sensitive buttons allow safe navigation even in dark surroundings. A convenient overhead installation of the headlamps can be realised by the automatic display flip function.

Full Color Version

Multicolour LED enables strong solid and pastel colours, as well as linear control over colour temperature

IP 65

The unit is fully protected against ingress of dust and water jets from any direction

Roxx Farbkalibrierung

Roxx^® Colour Calibration guarantees vivid and uniform colours, as well as excellent white tones precisely on the Plank’s curve

Dim to warm

Switchable Dim-To-Warm function to simulate a classic halogen spotlight when dimming down

Dimmer-Kurven

Four high-resolution dimming curves and adjustable response to suit the application.

Master & Slave

If a unit in the first position of the chain is set as master, it takes over the control of the following “slave” fixtures.

Different beam angles

Different beam angles through optional lenses

Stand Alone

Sophisticated stand-alone modes enable great lighting effects, even without using external lighting controls

Flickerfrei

Six adjustable PWM frequencies up to 25kHz guarantee flicker-free operation in the camera image, even with high-speed recordings

Quicklight Function

The Quick Light function allows direct access to dimmer & CCT. This makes it easy to set up fixtures on the spot, even before a DMX signal is applied.

Wireless Master & Slave

The fixture has a wireless master & slave function. This means that standalone programmes can also be passed on via wireless DMX.

Green Solution

The long service life of the LED and the high energy savings make this unit particularly environmentally friendly

Timer

Using the internal timer function, the stand-alone modes can be conveniently dimmed on and off after the spotlight is switched on, without the need for an external control.

OLED Display

OLED display with four touch-sensitive control panels, backlight and autoflip function for convenient and easy configuration

ROXX App

The integrated Bluetooth interface enables direct control of the headlights via tablet or phone using the ROXX app, without the need for additional hardware.

RDM enabled

Remote Device Management for bi-directional communication via the DMX network, for external programming and monitoring.

Temperature controlled fan

Temperature-controlled fan for optimized and silent operation

FCC

In addition to the European directives, the product is also tested and certified according to the specifications of the Federal Communications Commission (FCC)

W-DMX

A factory-installed wireless DMX receiver & transmitter from Lumenradio (CRMX) ensures secure radio transmission of DMX data. The receive mode is fully RDM capable

16-Bit Technologie

16-bit technology for high-resolution colour mixing and dimming behaviour

Intertek

In addition to the European directives, the product is also ETL certified and thus also meets the relevant safety standards and requirements for North America.

Technical data

Photometric data

LED expected lifetime	50.000 hours
Lightsource	1x230W RGBL
Type of optical system	reflector + interchangable lens plates
LED PWM Frequency	selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz
Beam angles (50%)
	19° (with narrow lens)
	36° (with medium lens)
	59° (with wide lens)
	17°x24° (with elliptical narrow lens)
	19°x57° (with elliptical wide lens)
Maximum Field angles (10%)
	36° (with narrow fresnel lens)
	72° (with medium fresnel lens)
	88° (with wide compound-eye lens)
	35°x46° (with elliptical-narrow lens)
	43°x81° (with elliptical-wide lens)
Color temperature range	2.000K – 10.000K
CRI / Ra	85
TLCI	77
Efficancy (max)	47,61 lm/W
Luminous flux	9.219 lm
illuminance Lux @ 5m (narrow lens)	1.439 lx
illuminance Lux @ 5m (medium lens)	349 lx
illuminance Lux @ 5m (wide lens)	183 lx
illuminance Lux @ 5m (elliptical-narrow lens)	876 lx
illuminance Lux @ 5m (elliptical-wide lens)	372 lx

Dimensions & Weight

IP class	IP65
Gehäusematerial	Aluminium-Druckguß
Linsenmaterial	Vorderseite aus gehärtetem Glas
Nettoabmessungen (w x h x d)	261 x 311 x 258 mm
Net dimensions inches	10,3 x 12,2 x 10,1 inches
Physical Head Straigt Up Height	339 mm
Net weight	5,7 kg (12,6 lbs)
Tilt	360°
Tilt Locking System	Locking system with angle indicator

Electrical data

AC power, max.	90 – 285V 50/60Hz
AC Power, nominal	100 – 260V 50/60Hz
Electrical Protection	Overload protection with automatic recover
Max Inrush Current	50A
Max power consumption	220W
Typical power consumption	154W
Standby power	6,7W
Max power thru @ 100 V	8A
Max power thru @ 230 V	8A
Power factor	0,92 PF (230 V) / 0,99 PF (100V)
Power Supply Unit	Inbuilt auto-ranging electronic switch-mode
Power Linking	4 units @ 120 V; 8 units @ 230 V

Operation & Controller

DMX channels	3/10CH HSI, 3CH CCT, 3/6/9/11/14CH RGB, 4/8/11/16CH DIRECT
DMX modes	12
Protocol	CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
	USITT DMX512A
	RDM ANSI E1.20
	Bluetooth (Low Energy)
Setting and addressing	OLED graphical display / 4 controls
	RDM ANSI E1.20
Standalone mode	Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer
Wireless DMX	Lumenradio with RDM (CRMX)
indicator	OLED graphical display
controls	4 touch sensitive, backlighted controls
Strobe	0-20Hz
DMX I/O	IP65 XLR 5-pin male/female
Power I/O	TRUE1 compatible input & link-thru sockets

Installation

Mounting point	1 x two quarter-turn locking points for optional Omega Bracket, centric M12 hole
Orientation	Any
Rigging possibilities	Hanging or ceiling / pendant mount (Pendant blind caps included)
Safety features	rear mount for safety wire
Minimum distance from flammable materials	0,3 meters (11,8 inch)

Thermal Characteristics

Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	95%
Temperature range, Operating	-20°C to 45°C
Temperature range, Start-up	-20°C to 50°C
Temperature range, Storage	-20°C to 80°C
Thermal Protection	Automatic overtemperature protection

Scope of delivery / accessories

Included items	2x radiator caps for pendant installation
	2 m power cable
Optional Accessories	Multiple Lens Plates (circular & elliptical), Snapbag™, Snapgrid™ 30°, 40°, 50°, Accessory Adapter, 8-Way Barndoor, Honey Comb, Full Anti-Glare Shield, Gel-Frame, Omega Bracket with quater-turn fasteners, Touring Cases
Color options	Black – RAL 9004 (Standard)
	White – RAL 9010
	Custom color – any RAL

Conformity

CE – 2014/30/EU: EMC Directive

EN 55103-2

EN 55015

EN 61547

EN 61000-3-2

EN 61000-3-3

EN 55032

CE – 2014/35/EU: Low Voltage Directive

EN 60598-1

EN 60598-2-17

EN 62471

EN 60529

RoHS2 Directive

2011/65/EU

ETL C/US

FCC

UKCA

Order numbers

E.SHOW	Code
E.SHOW FC Black	11202101
E.SHOW FC White	11202102
E.SHOW FC Custom	11202103
E.SHOW TW+ Black	11202001
E.SHOW TW+ White	11202002
E.SHOW TW+ Custom	11202003
E.SHOW T Black	11202201
E.SHOW T White	11202202
E.SHOW T Custom	11202203
E.SHOW D Black	11202301
E.SHOW D White	11202302
E.SHOW D Custom	11202303

Accessories	Code
E.SHOW Lens Narrow (black)	11207001
E.SHOW Lens Medium (black)	11207101
E.SHOW Lens Wide (black)	11207201
E.SHOW Lens Elliptical Narrow (black)	11207301
E.SHOW Lens Elliptical Wide (black)	11208201
E.SHOW Accessory Holder (black)	11907401
E.SHOW Barndoor (black)	11907501
E.SHOW Honey Comb (black)	11907601
SHOW Gel Frame (black)	11907701
E.SHOW Omega Bracket ST (black)	90900002
SHOW Full Anti-Glare Shield (black)	11308401
SHOW Full Anti-Glare Shield (custom)	11308403
SHOW Snapgrid 40° DoPchoice (black)	11208501
SHOW Snapbag by DoPchoice (black)	11908301
E.SHOW Case 4 (black)	11907801
E.SHOW Case 6 (black)	11907901
E.SHOW Case 8 (black)	11908001
