CLUSTER S2

HIGH-POWER, PIXEL-MAPPABLE HYBRID STROBE/WASH
Nach dem Erfolg der CLUSTER LED-Blinder hat ROXX die CLUSTER-Familie nun mit der Einführung des S2 weiter ausgebaut. Der S2 ist ein fortschrittliches, pixelmappbares Stroboskop und Washlight, das zwei sich ergänzende Effekte in einem Gerät vereint und für extrem leistungsstarke und vielseitige Anwendungen entwickelt wurde. Dank des fortschrittlichen und werkzeuglosen Clustermechanismus kann der ROXX S2 mit allen Produkten der CLUSTER-Serie kombiniert werden, um Lichtdesignern neue kreative Möglichkeiten in horizontalen und vertikalen Konfigurationen zu bieten und eignet sich für kleine bis große Veranstaltungsorte und Stadien

- High-power, pixel-mappable hybrid strobe / washlight
- Das mittlere Stroboskop ahmt das traditionelle Aussehen des Xenon-Blitzlichts nach.
- Full color mixing & Vollständige Farbmischung und abstimmbares Weiß mit hohem CRI
- Vier zusätzliche einzelne Strobe-Linien erzeugen einzigartige Effekte und geben einen Extra
boost für High-Power Strobe Anwendungen - Große Anzahl integrierter Muster
- IP65 zertifiziert für Indoor- & Outdoor-Anwendungen

Der CLUSTER S2 verfügt über eine große Anzahl von eingebauten Mustern und bietet dem Benutzer eine schnelle und einfache Möglichkeit, atemberaubende Effekte zu erzeugen, wenn kein Medienserver verfügbar ist oder die Installation eine schnelle Lösung erfordert.
ROXX bietet auch eine große Auswahl an magnetischen, einfach anzuwendenden Zubehörfiltern. Der Blackface-Filter ist besonders bei TV-Anwendungen nützlich, da er die Geräte im ausgeschalteten Zustand optisch im Bühnenbild verschwinden lässt. Die beiden elliptischen Filter formen den Lichtstrahl entweder vertikal oder horizontal mit einem Frosteffekt und bieten dem Anwender noch mehr Effektmöglichkeiten. Der ROXX CLUSTER S2 verfügt über die Schutzart IP65, was den idealen Einsatz im Außenbereich garantiert.

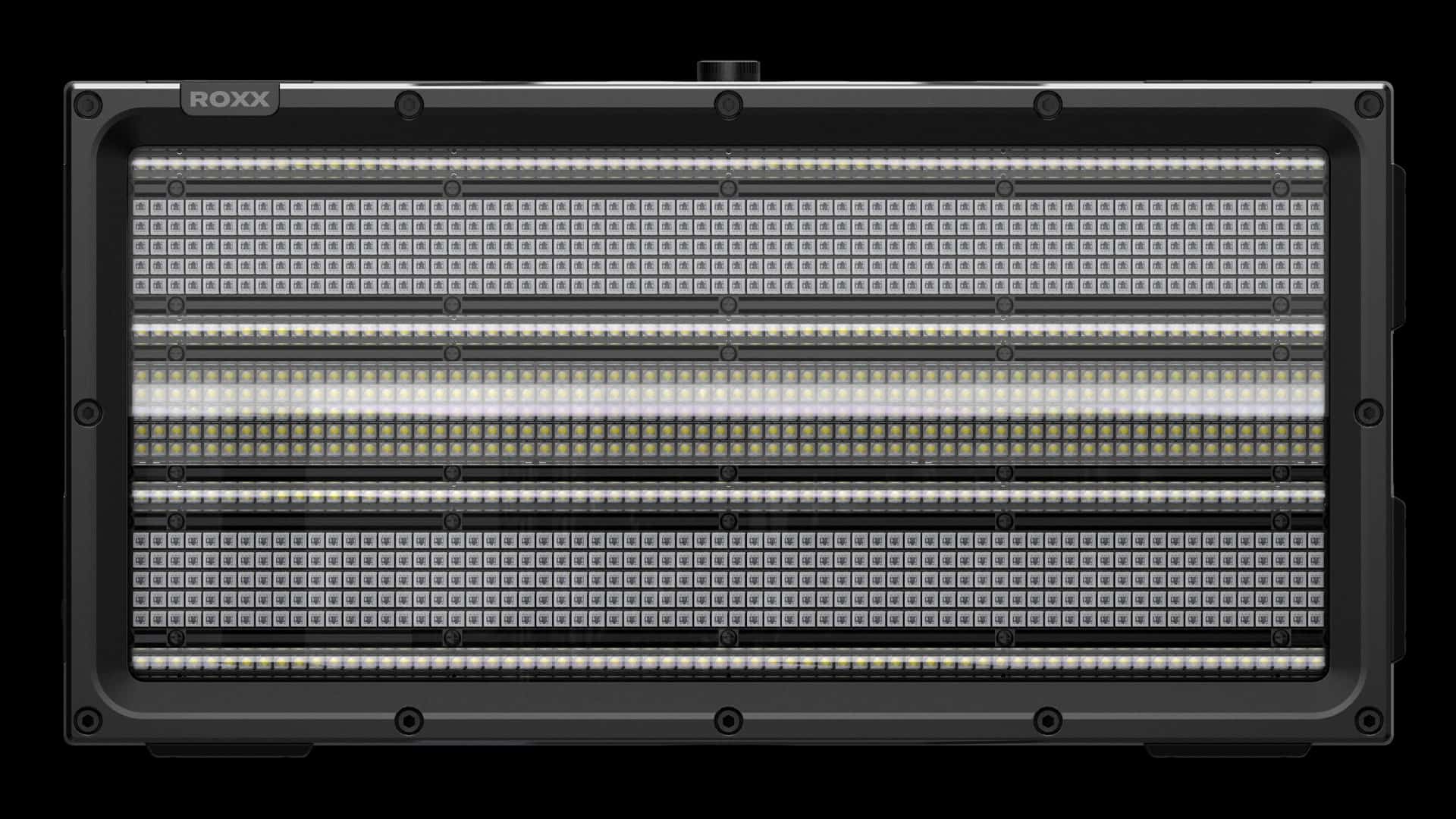

LICHT-KONZEPT – CLUSTER S2
High-Power Center Strobe Line


RGB Panels


Single High-Power Strobe lines


CLUSTER S2 – FEATURES
Mit unserem ROXX Cluster System und den gleichmäßigen Abständen der einzelnen LED-Zeilen können durchgehende Effekte über mehrere Geräte hinweg dargestellt werden. Auf diese Weise verschmelzen die Geräte in horizontaler und vertikaler Ausrichtung zu einem großen Ganzen.
Die 4 einzelnen, dünnen Strobe-Linien können auch zur Darstellung von Zahlen, Buchstaben und Grafiken verwendet werden.





CLUSTER S2 – MOUNTING
Es gibt mehrere Montageoptionen – Camlock-Halterungen an der Ober- und Rückseite ermöglichen die Verwendung von Omega-Halterungen, Yokes können an M12-Befestigungspunkten an allen Seiten angebracht werden, oder das interne C-Lok-System kann für nahtlose Verbindungen verwendet werden. Pre-Link-Magnete an der Oberseite und an den Seiten helfen bei der Ausrichtung der Vorrichtungen und ermöglichen eine „Einhand“-Bedienung für eine sichere Verriegelung.
Ein speziell entwickelter Montagebügel wird für die nahtlose Verbindung mehrerer Blinders verwendet, um Lücken zu vermeiden, die durch die Verspannung der Traversenstruktur durch variable, verschiebbare Montagepositionen entstehen.

CLUSTER rigging bracket

Continous rigging throughsliding mounting positions

Tilt Scale

Mehrere Befestigungspunkte:
- 3x Camlock mit ¼ Dreh-Adapter
- 3x M 12mm / ½“
- 1x TV Spigot


Dank des fortschrittlichen und werkzeuglosen Clustermechanismus kann ROXX S2 mit allen Produkten der CLUSTER-Serie kombiniert werden, um Lichtdesignern neue kreative Möglichkeiten in horizontalen und vertikalen Konfigurationen zu bieten und ist für kleine bis große Veranstaltungsorte und Stadien geeignet
CLUSTER S2 – Zubehör

ROXX bietet auch eine große Auswahl an magnetischen, leicht anzubringenden Zubehörfiltern. Der Smoked Clear Filter ist besonders für TV-Anwendungen geeignet, da er die Geräte im ausgeschalteten Zustand optisch im Bühnenbild verschwinden lässt. Die beiden elliptischen Filter formen den Lichtstrahl entweder vertikal oder horizontal mit einem Frosteffekt und bieten dem Anwender noch mehr Effektmöglichkeiten.
- FX Frame
- FX Filter Smoked Clear
- FX Filter Elliptical Horizontal
- FX Filter Elliptical Vertical
CLUSTER S2

Photometrics
LED expected lifetime | 50.000 hours |
Lightsource | 612x CW LED´s (7000K), 680x RGB LED´s |
Type of optical system | native, elliptical lens |
LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
Beam angles @ Full (50%) | 66° |
Maximum Field angles @ Full (10%) | 108° |
Color temperature range | 2000-10.000K |
CRI/Ra @ Full | 88 |
Efficancy @ Full (max) | 48,07 lm/W |
Luminous flux @ Full | 57.750 lm (1200W) |
Luminous flux @ Full (illumination mode) | 14.807lm (305W) |
Luminous flux @ Center Strobe (Boost Mode) | 70.661lm (1135W) |
Luminous flux @ 4x Single Strobes (Boost Mode) | 35.582lm (982W) |
Luminous flux @ 2x RGP Panels (Boost Mode) | 22.685lm (853W) |
Luminous flux @ Center Strobe (Illumination Mode) | 20.260lm (300W) |
Luminous flux @ 4x Single Strobes (Illumination Mode) | 14.480lm (300W) |
Luminous flux @ 2x RGP Panels (Illumination Mode) | 7.920lm (300W) |
illuminance Lux @ 3m / 9,84ft (@ Full) | 4460lx / 414fcd |
illuminance Lux @ 3m / 9,84ft (@ Center Strobe ) | 3500lx / 325fcd |
illuminance Lux @ 3m / 9,84ft (@ 4x Single Strobes) | 2560lx / 238fcd |
illuminance Lux @ 3m / 9,84ft (@ Center Strobe + 4x Single Strobes) | 4045lx / 376fcd |
illuminance Lux @ 3m / 9,84ft (@ 2x RGB Panels) | 1075lx / 100fcd |
Maße & Gewicht
IP class | IP65 |
IK class | IK08 |
Body material | Aluminum, Nylon |
Lens material | Tempered glass front |
Net dimensions without Yoke (w x h x d) | 400 x 200 x 191mm |
Net dimensions inches | 15,75 x 7,87 x 7,52 inches |
Net weight (incl. Yoke) | 12,6 kg (27,78lbs) |
Tilt | 360° |
Tilt Locking System | Locking system with toothing and angle indicator |
Elektrische Daten
AC Power, max | 90 – 285V 50/60Hz |
AC Power, nominal | 100 – 240V 50/60Hz |
Electrical protection | Overload protection with automatic recover |
Max power consumption | 1250W |
Constant power consumption (Illumination Mode) | 320W |
Power Max. Out | 6,24A @ 230V / 6,14A @ 120V |
Power Linking @ Max Power Consumption (Boost Mode) | 1 unit @ 230V / 0 unit @ 120V |
Power Linking @ Constant Power Consumption (Illumination Mode) | 7 units @ 230V / 3 units @ 120V |
Power Factor | 0.998 PF (230V) / 0.997 PF (120V) |
Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operator & Controller
DMX channels | Simple Mode 15CH, Easy Mode 39CH, Standard Mode 72CH (default mode), Pure Mode 112CH Single Pixel 8 Bit with Strobefunction, Pure Mode 209CH Single Pixel 16 Bit with Strobefunction, Full Access Mode 177CH 8 Bit single Pixel with Pattern, Full Access Extended Mode 274CH 16 Bit with Pattern |
DMX modes | 6 |
Protocol | |
USITT DMX512A | |
RDM ANSI E1.20 | |
Art-Net | |
sACN | |
Setting and addressing | OLED graphical display / 4 controls |
RDM ANSI E1.20 | |
Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
Wireless DMX | n.a. |
indicator | OLED graphical display |
controls | 4 touch sensitive, backlighted controls |
Strobe | 0-30Hz |
DMX I/O | IP65 XLR 5-pin male/female |
Ethernet I/O | IP65 RJ45 Ethernet male/female |
Power In | TRUE1 compatible input & link-thru sockets |
USB Firmware Update | IP65 USB socket |
Installation
Mounting point by Yoke (included) | 3x 13mm / 1/2″ holes, 1x centric TV Spigot attachement, 3x integrated Camlocks for Omega Brackets |
Mounting point on fixture | 1/4 turn Omega Bracket on top and rear side |
Mounting point with otional Rigging Bracket | 2x 13mm / 1/2″ holes for Clamp fixation |
Orientation | Any |
Rigging possibilities | Hanging or ceiling / pendant mount |
Safety features | 2x rear mount for safety wire |
Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermische Eigenschaften
Cooling | Active, Forced Air, Temperature-regulated |
Humidity (max.) | 95% |
Temperature range, Operating | -40°C to 45°C |
Temperature range, Start-Up | -20° to 45°C |
Temperature range, Storage | -40°C to 80°C |
Thermal Protection | Automatic overtemperature protection |
Lieferumfang / Zubehör
Included items | Yoke 4.1, 2m Power Cable, Puk |
Optional Accessories | Yoke 2.2, Yoke 4.3, Yoke Floor Extension, Rigging Bracket, Omega Bracket ST |
Color options | Black – RAL 9004 (Standard) |
Custom color – any RAL (on request) |
Compliance
CE – 2014/30/EU: EMC Directive |
EN 55103-2 |
EN 55015 |
EN 61547 |
EN 61000-3-2 |
EN 61000-3-3 |
EN 55032 |
CE – 2014/35/EU: Low Voltage Directive |
EN 60598-1 |
EN 60598-2-17 |
EN 62471 |
EN 60529 |
RoHS2 Directive |
2011/65/EU |
ETL C/US |
FCC |
UKCA |
Bestellnummern
CLUSTER | Code |
S2 | 13305001 |
Accessories | Code |
FX Distance Frame | 13908101 |
FX Filter Smoked Clear | 13908001 |
FX Filter Elliptical Horizontal | 13907801 |
FX Filter Elliptical Vertical | 13907901 |
Yoke 2.2 | 13907001 |
Yoke 4.1 | 13907601 |
Yoke 4.3 | 13907101 |
Floor Extension | 13907201 |
Rigging Bracket | 13907411 |
Omega Bracket | Omega Bracket 90900002 |
- Manuell
- DMX Chart
- Pattern Chart
- Pixel Chart
- Fixture Libraries
- Photometrics
- Lichtverteilungskurven
- Technische Zeichnung
- UK-Declaration of Conformity
- EU-Declaration of Conformity (DoC)
- Datenblatt
- Ausschreibungsunterlagen
- Medien
- Firmware Updates
Soon available!
Soon available!

Soon available!
Soon available!

IP 65
The fixture is fully protected against dust and water jets from any direction.

Shift to warm
Switchable Shift-To-Warm function to simulate traditional halogen fixtures while dimming down.

Green Solution
ROXX CLUSTER Blinders consuming 60% less power comparing to classic DWE Blinders. Due to it´s LED lifetime of 50.000 hours it replaces the need of installing tungsten lamps (once blown) at the rate of 500+ times.

Dimming curves
Four high resolution dimming curves and adjustable dimming response to adapt to the respective application.

Stand Alone
Extensive stand alone modes for brilliant lighting effects even without the need of external controller.

Magnetic Pre-link
The magnetic pre-link system helps to align ROXX fixtures and allows „one-handed“ operation for secure locking.

Flicker-free
Six selectable PWM frequencies up to 25kHz guarantees flicker free operation in front of camera, even at high-speed recordings.

Quicklight Function
Quick-light function allows a direct access to dimmer & CCT for easy and fast operation while setting lights.

C-LOK
The patented C-LOK system allows ROXX® devices to be connected together quickly and conveniently without tools.Scalable from a single vertical / horizontal line to massive matrix-like arrays.

OLED Display
OLED display with four touch-sensitive buttons, backlight- and auto flip function for easy configuration.

Temperature controlled fan
Temperature controlled fan for optimized and silent operation.

Maste & Slave
Once the fixture is set to “Master” and on first postion of the chain, it controls the following “Slave” units.

RDM enable
Remote Device Management enables bi-directional communication over DMX network, for external programming and monitring functions.

FCC
Besides the product compliance for european market this product is also FCC certified and complies to the requirements of the Federal Communications Commission.

Color Calibration
ROXX® color calibration guarantees vivid and uniform colors plus excellent whites precisley on the black body curve.

16-Bit Technology
16-bit technology for high-resolution color mixing and ultra-smooth dimming behaviour.

Intertek
Besides the product compliance for european market this product is also ETL certified and complies to the safety norms and requirements for North-America.

Art-Net / sACN
The fixture is compatible with Art-Net and sACN protocols. DMX-512/ RDM data is transmitted via an Ethernet connection.
