NEO | FURTHER
8° to 80° beam angle for high illuminance at any distance.
NEO | WHITER
CRI and TLCI over 85 across the white spectrum for accurate color reproduction.
NEO | BRIGHTER
24 x 40W RGBL LEDs generate 38.525lx @ 5m, calibrated to 5.600K.
ILLUMINATE YOUR WORLD WITH
Crafted with precision, the fixture features a specially developed 8° TIR lens, ensuring high illuminance even over extended distances while guaranteeing seamless color mixing for captivating displays. Enhance your lighting setup further with optional magnetic filters, offering a range of circular and elliptical beam angles, along with a smoked clear filter tailored for impeccable camera applications.
NEO boasts a CRI and TLCI higher than 85 across the entire white color spectrum, ensuring accurate color reproduction that breathes life into your surroundings. Four controllable segments provide unparalleled customization, empowering you to tailor your lighting to suit any scenario.
Built to withstand the elements, NEO has a certified IP65 rating, making it suitable for both indoor and outdoor use. The additional DC input allows for easy connection to standardized battery packs, transforming the fixture into a mobile powerhouse for on-the-go lighting needs.
Near Field Communication (NFC)
NEO integrates a NFC chip (Near Field Communication) and allows in conjunction with ROXX NFC App to address and configure the fixtures wirelessly even when the fixture power is not present. This innovative feature revolutionizes your daily work processes, making light setup faster, easier, and more satisfying than ever before.

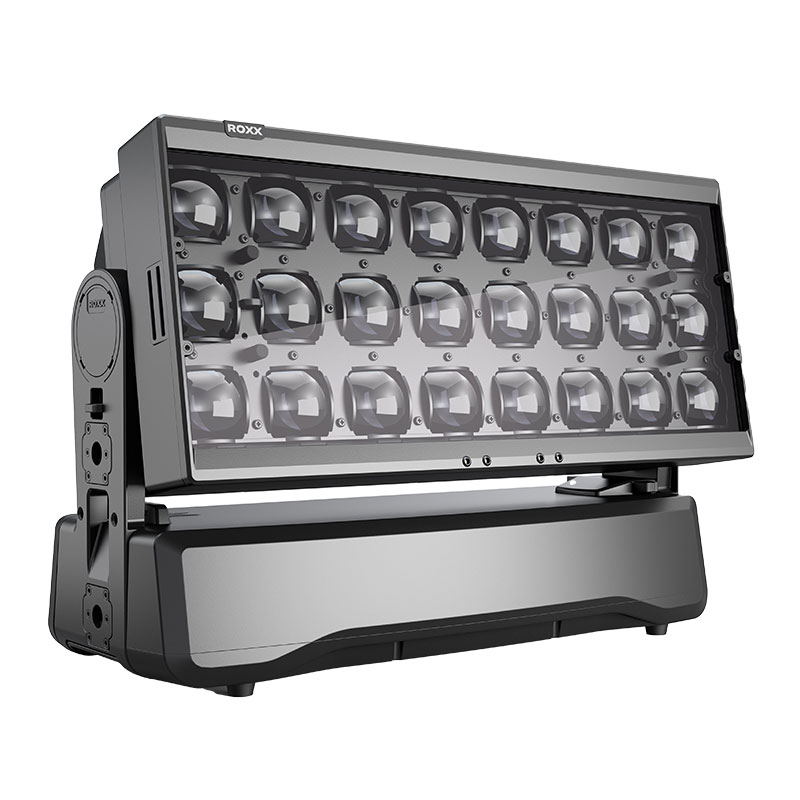

HIGH POWER IN-/OUTDOOR WASHLIGHT
- 24 x 40W RGBL LED´s create enormous 38.525lx @ 5m (5600K calibrated)
- The specially developed 8° TIR lens enables high illuminance even at long distances and guarantees homogeneous color mixing
- Optional magnetic filters enable various circular and elliptical beam angles, as well as a smoked clear filter for perfect camera applications
- CRI & TLCI higher than 85 over the entire white color range
- Four controllable segments
- IP65 rated for Indoor & Outdoor use
- Integrated CRMX transceiver and Bluetooth module for wireless DMX setup according to industry standard and direct control via ROXX app
- Integrated Near Field Communication (NFC) enables addressing and configuration of fixtures wirelessly and even when fixture power is not present.
Magnetic 8-way barndoor
Thanks to a newly developed clasp, the magnetic 8-way barndoor can be easily assembled and disassembled with 2 hands in a matter of seconds.
There is an additional locking option for the door panel to protect against unauthorised removal, as well as the option of locking with the aid of a tool, so no safety is required.
The 8-way barndoor of the NEO and the available magnetic filters are stackable, so they can be used together.
Magnetic Filters
Optional magnetic filters enable various circular and elliptical beam angles, as well as a smoked clear filter for perfect camera applications
User-friendly 2″ TFT display
The user-friendly 2” TFT display, complemented by backlighted buttons, provides direct access to dimmer, CCT, gels, app control and CRMX functions, simplifying operation for users of all levels.
Angled upwards display
In the floor application, the display is angled upwards for particularly user-friendly handling.
Enormous output for high illuminance and long distances
- The specially developed copper heatpipe cooling system guarantees stable luminous intensity even at high ambient temperatures
- Linear CTC control from 2000K – 10.000K
- User-friendly 2” TFT display with backlighted buttons, and direct access for dimmer, CCT, gels, App control und CRMX functions
- Integrated handles on head and Yoke allow the device to be carried comfortably
- Multiple mounting locations for creative rigging options & floor mount
- 16-bit dimming control for smooth, perfect fades
- Adjustable PWM frequencies up to 25kHz guarantee flicker-free camera operation
Technical Data
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 24x 40W RGBL |
| Type of optical system | TIR lens |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ Full (50%) | 8° (native) |
| Maximum Field angles @ Full (10%) | 15° (native) |
| Color temperature range | 2.000K – 10.000K |
| CRI/Ra @ 5600K | 85 |
| TLCI @ 5600K | 85 |
| Luminous Flux @ Full (RAW) | 27.225 lm (918W) |
| Luminous Flux @ 5.600K (Normal CRI) | 26.183 lm (721,5W) |
| Luminous Flux @ 5.600K (High CRI) | 16.627 lm (389,4W) |
| Illuminance Lux @ 5m / 16,4ft (@Full) | 38.525 lx / 3.579 fcd |
| Illuminance Lux @ 5m / 16,4ft (@ 5.600K Normal CRI) | 36.865 lx / 3.425 fcd |
| Illuminance Lux @ 5m / 16,4ft (@ High CRI) | 23.124 lx / 2.148 fcd |
| Efficancy @ Full (max) | 29,7 lm/W |
Dimensions & Weight
| IP class | IP 65 |
| IK class | IK08 |
| Body material | Aluminum, Nylon |
| Lens material | Tempered glass front |
| Net dimensions (w x h x d) | 545 x 340 x 210 mm |
| Net dimensions inches (w x h x d) | 21,46 x 13,39 x 8,27 inches |
| Net weight (including Yoke) | 15,4kg / 33,95 lbs |
| Tilt | 220° |
| Tilt Locking System | Locking system including angle indicator |
Electrical Data
| AC power, max. | 90 – 285V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical Protection | Overload protection with automatic recover |
| Max. power consumption (Boost Mode) | 1100W |
| Standby power | 11,2W |
| Power Max. Out | 11A @ 230V / 6A @ 100V |
| Power Linking | 3x units @ 230V / 1x unit @ 100V |
| Power factor | PF 0.993@ 100V / PF 0.977@ 230V |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
| DC Power In | 24-34V |
Operation & Controller
| DMX channels | 3CH CCT, 3CH RGB, 6CH RGB, 8CH RGB, 19CH RGB, 23CH RGB, 4CH DIRECT, 9CH DIRECT, 21CH DIRECT, 26CH DIRECT, 17CH HSI, 16CH PURE, 29CH PURE, 28CH FULL ACCESS, 44CH FULL ACCESS |
| DMX modes | 15 |
| Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S USITT DMX512A RDM ANSI E1.20 Bluetooth Low Energy (BLE) |
| Setting and addressing | 2.0″ TFTdisplay / 10 controls Near Field Control (NFC) RDM ANSI E1.20 |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color, Timer |
| Wireless DMX | Lumen Radio transmitt & receive function (CRMX) |
| indicator | 2.0″ TFT display |
| controls | 10 backlighted controls |
| Strobe | 0-30Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power I/O | TRUE1 compatible input & link-thru sockets |
| USB Firmware Update | IP65 USB socket |
Installation
| Mounting point on fixture bottom side | 3x 1/4 turn Omega Bracket |
| Mounting point on fixture Yoke side | 1x 1/4 turn Omega Bracket |
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 1x bottom mount for fixtures safety wire / 2x Yoke mount for accessory safety wires |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Forced Air, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, Operating | -40°C to 45°C |
| Temperature range, Start-up | -20°C to 45°C |
| Temperature range, Storage | -40°C to 80°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | 2 m power cable |
| Optional Accessories | Multiple magnetic filters (circular / elliptical, smoked-clear), 8-Way Barndoor, Omega Bracket ST |
| Color options | Black – RAL 9004 (Standard) |
| Custom color – any RAL (on request) |
Conformity
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX NEO | Code |
| ROXX NEO | 14202001 |
| Accessories | Code |
| Omega Bracket ST | 90900002 |
| 8-Way Barndoor | 14905901 |
| Filterframe 10° very narrow | 14905101 |
| Filterframe 15° narrow | 14905201 |
| Filterframe 40° medium | 14905301 |
| Filterframe 80° wide | 14905401 |
| Filterframe 60°x10° Horizontal | 14905501 |
| Filterframe 10°x60° Vertical | 14905601 |
| Filterframe Smoked Clear | 14905701 |
| Casetec Case 4fach | 14906041 |
| Amptown Case 4fach | 14906011 |
