ROXX K36

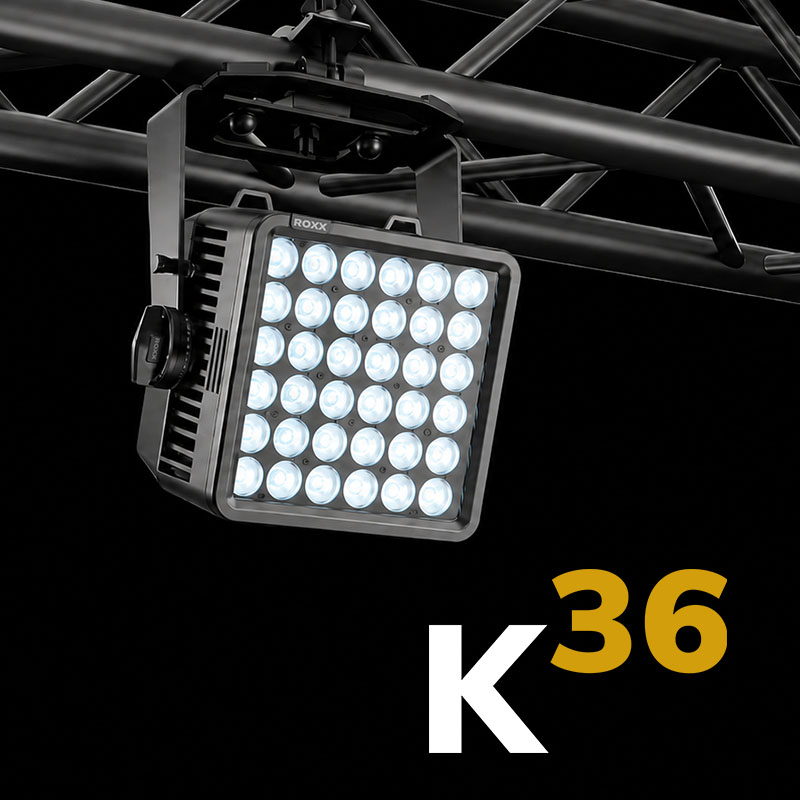

The ROXX K36 is the ideal solution for applications requiring long throw, stable light output, and camera-ready performance – from stadium lighting and large event venues to broadcast productions.
With the K36, ROXX introduces a powerful and compact luminaire specifically designed for sports venues, event locations, and large-scale productions. Precise beam control, high output, and a rugged construction ensure reliable performance at the highest level.
Equipped with 36 high-performance single white LEDs (5600 K), the K36 delivers an impressive illuminance of up to 24,000 lx at 5 m while maintaining excellent light quality. Its specially developed TIR optics with an ultra-narrow 8° beam angle provide exceptional throw distance, making the fixture the ideal solution for long-throw applications such as stadiums, arenas, and large outdoor events.
KEY Vertical Mount (optional)
A standout feature is the ability to connect two K36 fixtures in seconds using the optional KEY Vertical Mount. The tool-free connection virtually doubles the output density without increasing the required footprint – perfect for applications where maximum light output is needed in limited installation space.
Modern dimming technology
Thanks to advanced 16-bit dimming technology and adjustable PWM frequencies of up to 25 kHz, the K36 is ideally suited for camera-sensitive environments and guarantees flicker-free operation, even during high-speed recordings.
A versatile tool for professional use
Its robust IP65-rated construction, integrated carrying handles, and flexible mounting options make the K36 a versatile tool for professional indoor and outdoor applications. An intelligent accessory concept featuring magnetic filters and an optional 8-way barndoor provides maximum control over the beam and further enhances the fixture’s flexibility.
TECHNICAL DATA
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 36 x 6,7W 5600K |
| Type of optical system | TIR lens |
| LED PWM Frequency | selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz |
| Beam angles (50%) | 8,1 ° (Nativ) 21,7° (Narrow) 29,2° (Medium) 51,7 ° (Wide) |
| Maximum Field angles (10%) | 13,1° (Nativ) 44,1° (Narrow) 56,8° (Medium) 96,8° (Wide) |
| Efficancy @ Full (max) | 66 lm / W |
| CRI/Ra | 88,5 |
| TLCI | 90 |
| TM-30-15 | Rf 88,5 / Rg 99,1 |
| Luminous flux | 17.160 lm |
| illuminance Lux @ 5m (native) | 23.186 lx |
| illuminance Lux @ 5m (narrow lens) | 2.638 lx |
| illuminance Lux @ 5m (medium lens) | 1.615 lx |
| illuminance Lux @ 5m (wide lens) | 586 lx |
Dimensions & Weight
| IP class | IP65 |
| IK class | IP08 |
| Body material | Aluminum, Nylon |
| Lens material | Plastic |
| Net dimensions in mm (w x h x d) | 285 x 310 x 235mm |
| Net dimensions in inches (w x h x d) | 11,2 x 12,2 x 9,3 inches |
| Net weight | 7,84 kg (17,3 lbs) |
Electrical Data
| AC Power, max | 90 – 285V 50/60Hz |
| AC Power, nominal | 100 – 260V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Max Inrush Current | 50A |
| Max power consumption | 274W |
| Standby power | 6,7W |
| Max power thru @ 100 V | 19A (ETL) / 12A |
| Power Thru max. @ 230V | 10A (ETL) / 13A |
| Power factor | 0,92 PF (230 V) / 0,99 PF (100V) |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
| Power Linking | 4 units @ 120 V; 9 units @ 230 V |
Operation & Controller
| DMX channels | 1/2/3/4CH |
| DMX modes | 4 |
| Protocol | USITT DMX512A RDM ANSI E1.20 |
| Setting and addressing | OLED graphical display / 4 controls RDM ANSI E1.20 |
| Standalone mode | Quick Light |
| indicator | OLED graphical display |
| controls | 4 buttons |
| Strobe | 0-20Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power I/O | TRUE1 compatible input & link-thru sockets |
Installation
| Mounting point on fixture yoke | 1x 1/4 turn Omega Bracket |
| Orientation | Any |
| Rigging possibilities | hanging with yoke or stacked using the KEY vertical mount |
| Safety features | 2x eyelet for fixtures safety wire |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Forced Air, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, Operating | -20°C to 45°C |
| Temperature range, Start-Up | -20° to 50°C |
| Temperature range, Storage | -20°C to 80°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | 2m power cable |
| Color options | Black – RAL 9004 (Standard) |
| Optional accessories: | Magnetic filters 20°, 30°, 40°, 60° |
| 8-way Barndoor | |
| KEY Vertical Mount |
Conformity
| CE - 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE - 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX K36 | Code |
| K36 |
| Accessories | Code |
| KEY M Filter 30 (N) | 16906301 |
| KEY M Filter 40 (M) | 16906501 |
| KEY M Filter 60 (W) | 16906401 |
| KEY M Barndoor | 16906101 |
| KEY Vertical Mount | 16906601 |
| KEY Omega Bracket | 90900002-2 |
