The new ICON F8 expands the ICON series with a 800W luminaire with perfect whites and brilliant colors. The new IP65-certified spotlight with its specially developed 6-colour LED chip has an enormous output of up to 6.462 lx @5m at a beam angle of 10°. For big shows, large exhibitions and studio applications, where up to now costly and maintenance-intensive discharge lamps were used.

ICON F8 – True 2K Replacement

• 800W 6-in-1 LED delivers enormous luminous flux of up to 20.000 lumens
• ROXX ChromaSix LED engine (RGBALC) delivers powerful, saturated to pastel colors
• CRI/Ra up to 98 / TLCI up to 99, TM-30 Rf of 95
• 8” Fresnel lens, delivers authentic Fresnel characteristic
• 10°-55° manual zoom with integrated zoom indicator for precise and repeatable setups
• Fixed front lens for stable balance and compact design
• integrated reflector
• 18-bit dimming with ultra-smooth fades and tremendous color fidelity
• IP65-rated housing with specially capsuled optical lens system to minimize maintenance

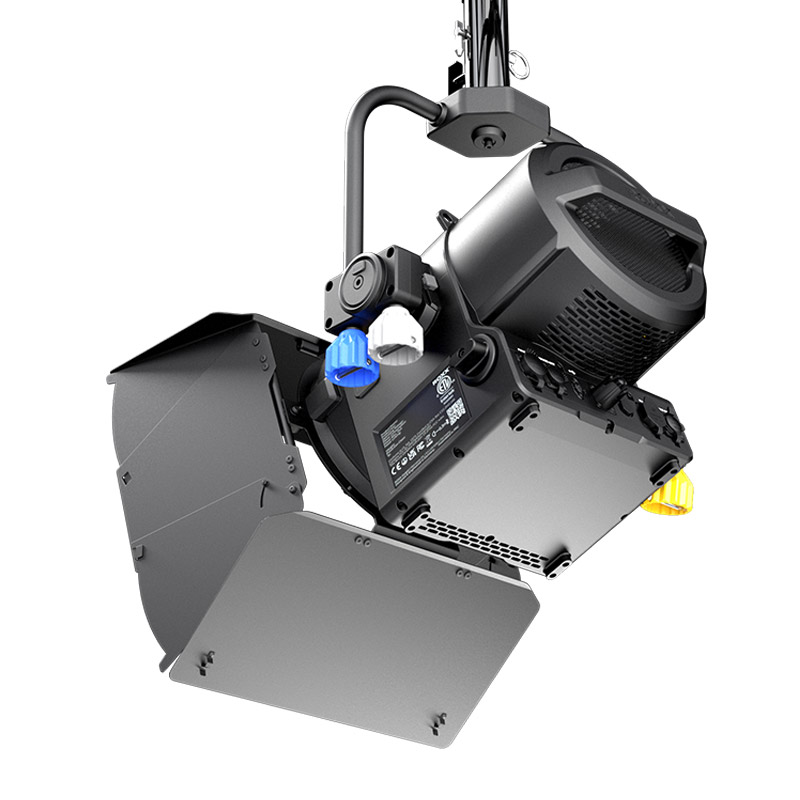

• Quick-release yoke system for tool-free switching between Standard- and PO yoke
• KLSTR technology ready – unique time-saving workflows during device set-up

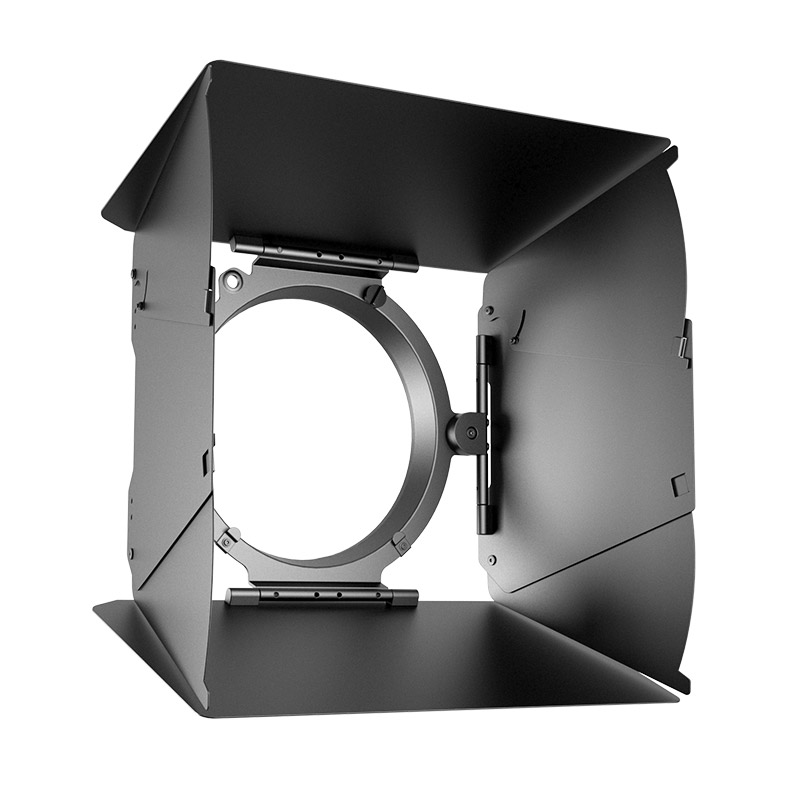

The revolutionary advanced 8-Way Barndoor redefines light shaping. In addition to the classic design with eight blades, two blades can be rotated along the X-axis to correct slanted distortions and transform them into a straight edge, enabling a new level of precision. That’s why we have registered a patent, legally protecting the Advanced Barndoor!

Whether you need precise light control, subtle shading, or creative shaping, this flexible system adapts to any lighting scenario and the best part is, the advanced barndoor is included when purchasing the fixture.

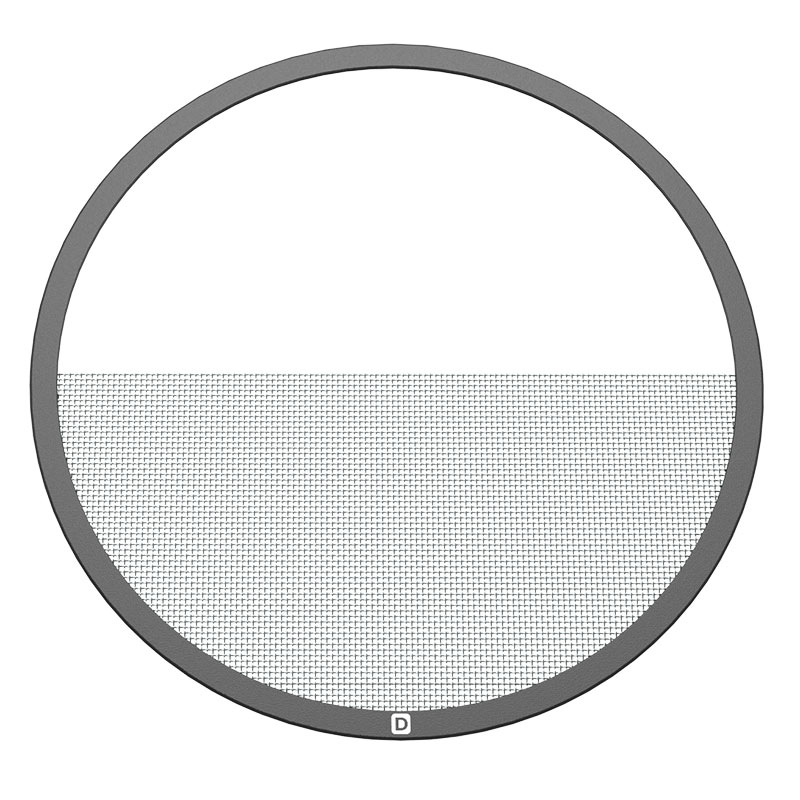

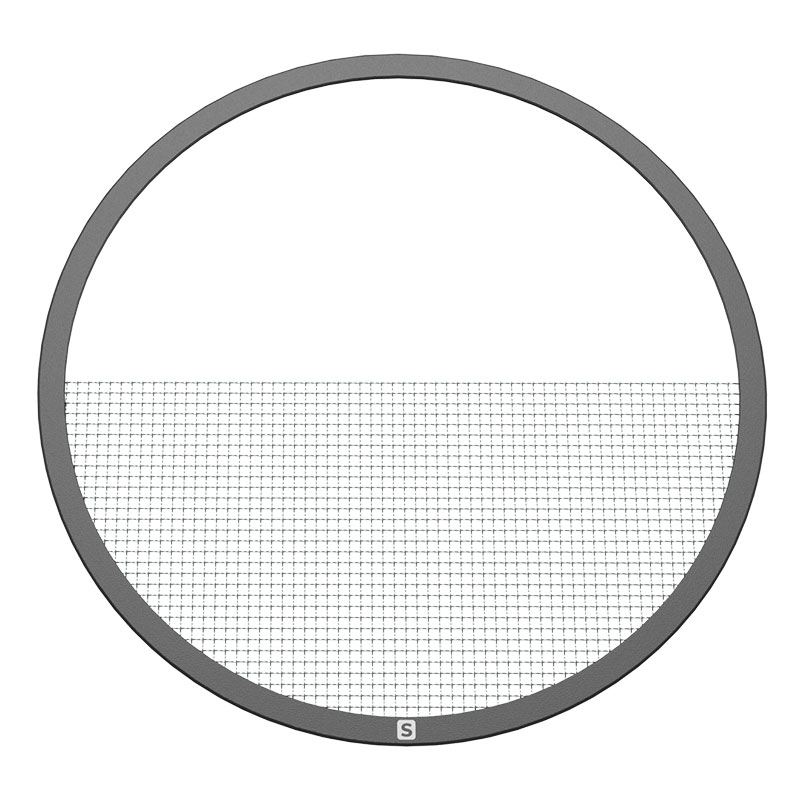

An integrated grid holder further improves control.  For example, glare in the front rows of the audience can be avoided by using single or double grids for partial light reduction (grid S 30% D 60%) and sophisticated light gradations – perfect for TV, cinema, or theater applications.

More control. More precision. More creative freedom.

Thanks to their IP65-rated housing and a specially designed sealed lens system, ICON fixtures are protected against water, dust, haze, and fog residues. This ensures consistent performance in both indoor and outdoor use while minimizing long-term maintenance costs.

Each fixture features a fixed, 100mm, 150mm or 200mm, front lens for a stable center of gravity and compact dimensions, a manual zoom range of up to 9°-60° and an integrated zoom indicator that clearly displays the exact zoom position at all times — making pre-focusing and setup faster, more precise, and fully repeatable.
