FEATURES
SMALL BUT MIGHTY
With up to 33.000lx @ 3m and 12.000lx @ 5m (both at 5.600K), it is the most powerful battery-operated washlight at its size.
ADVANCED WIRELESS TECHNOLOGY
Enjoy a built-in CRMX transceiver for professional wireless DMX, NFC for fast setup and addressing, and Bluetooth connectivity for direct control via the intuitive ROXX.APP.
OPTIONAL BATTERY PACK
NEO lite can be equipped with an optional high-capacity battery pack, providing up to 24 hours of cable-free operation with a fast-charging time.

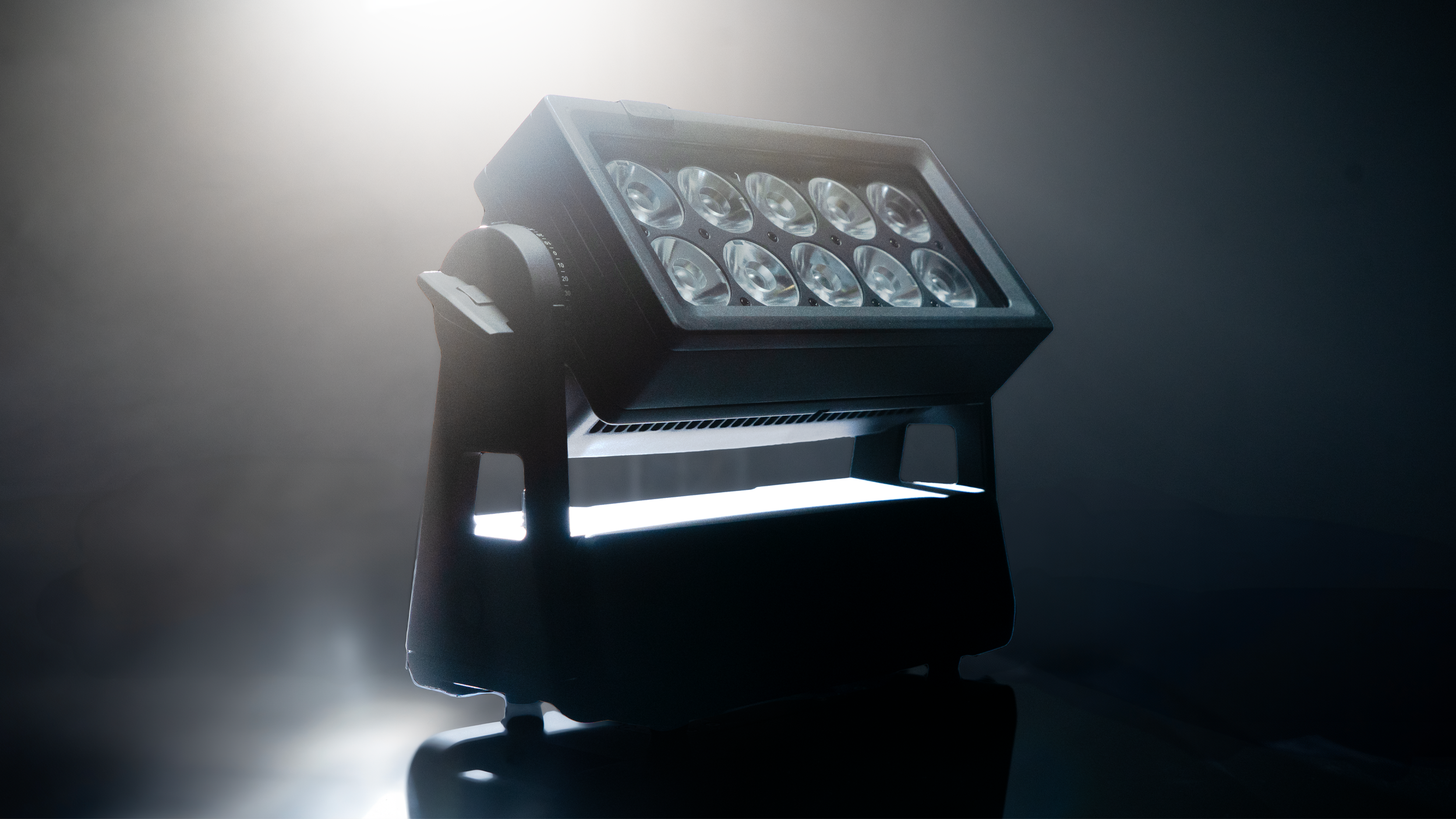

PERFORMANCE THAT SETS STANDARDS – OVER 9.000 LUMENS, AT ALL TIME.

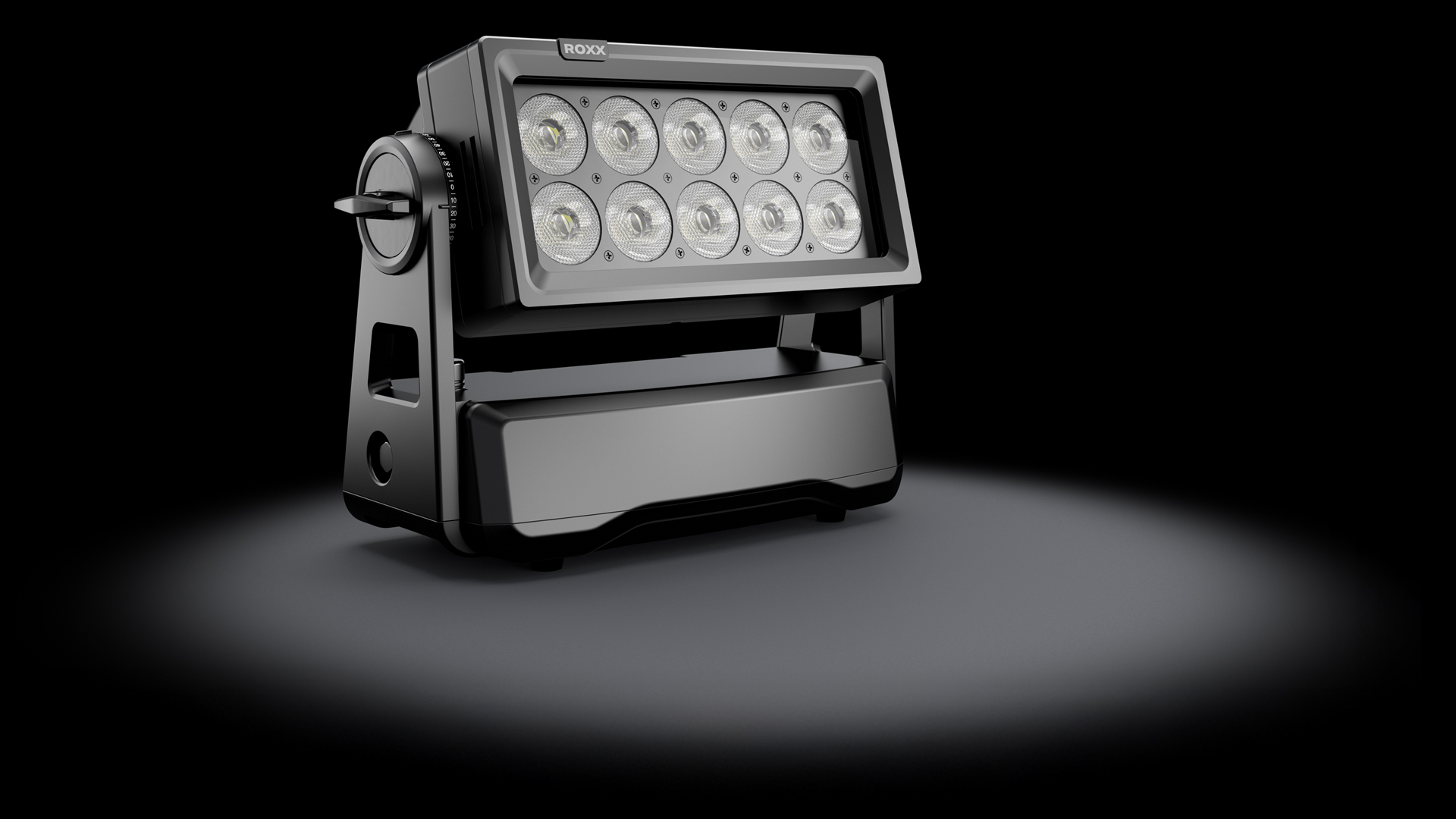

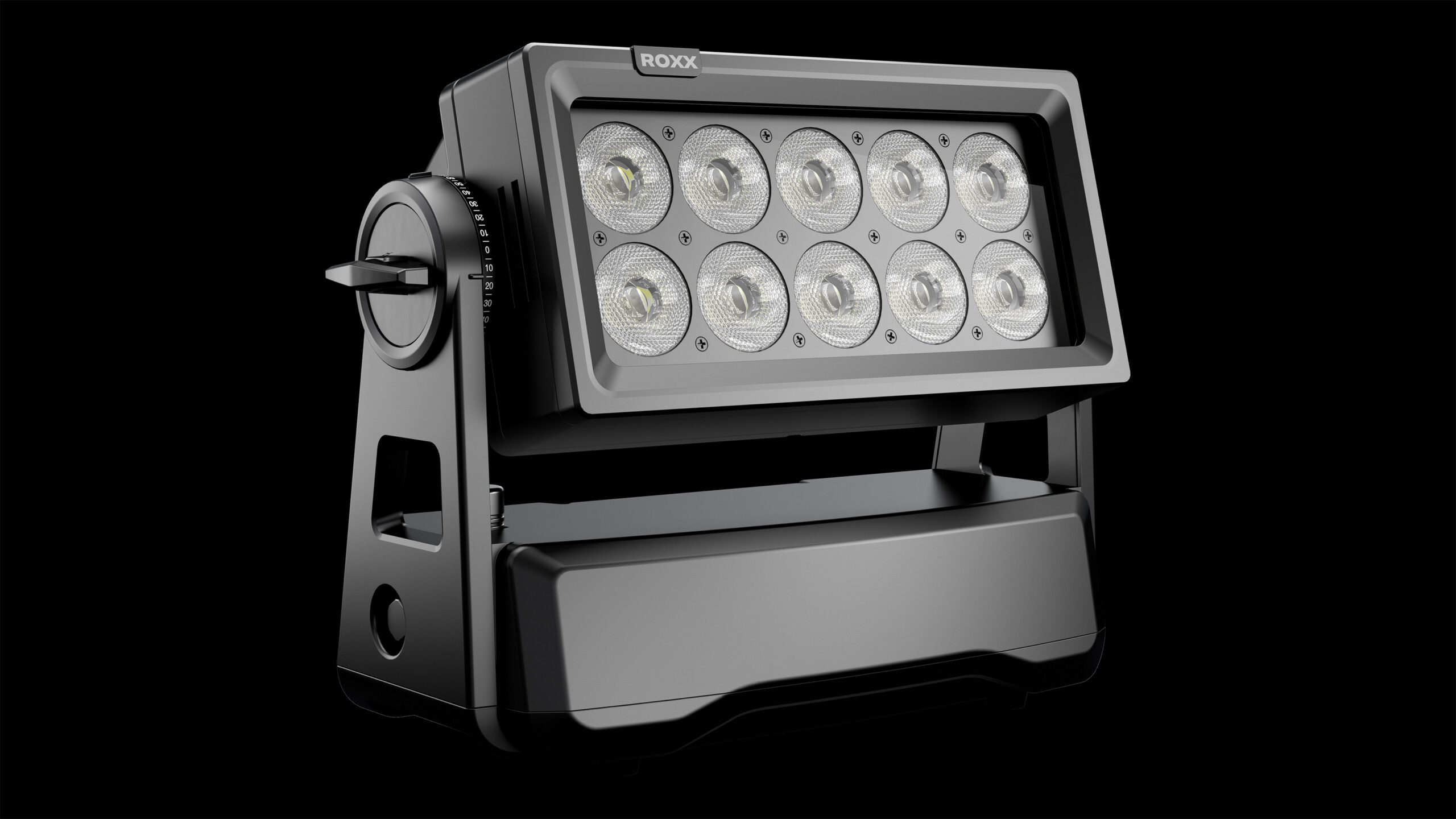

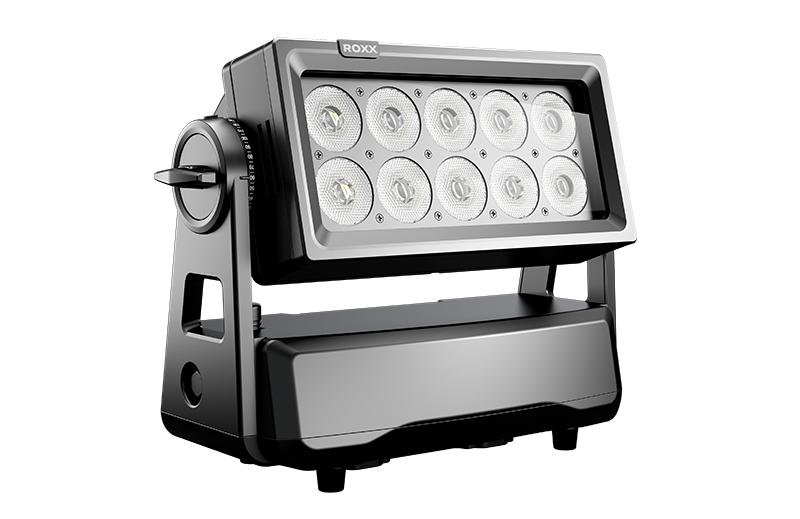

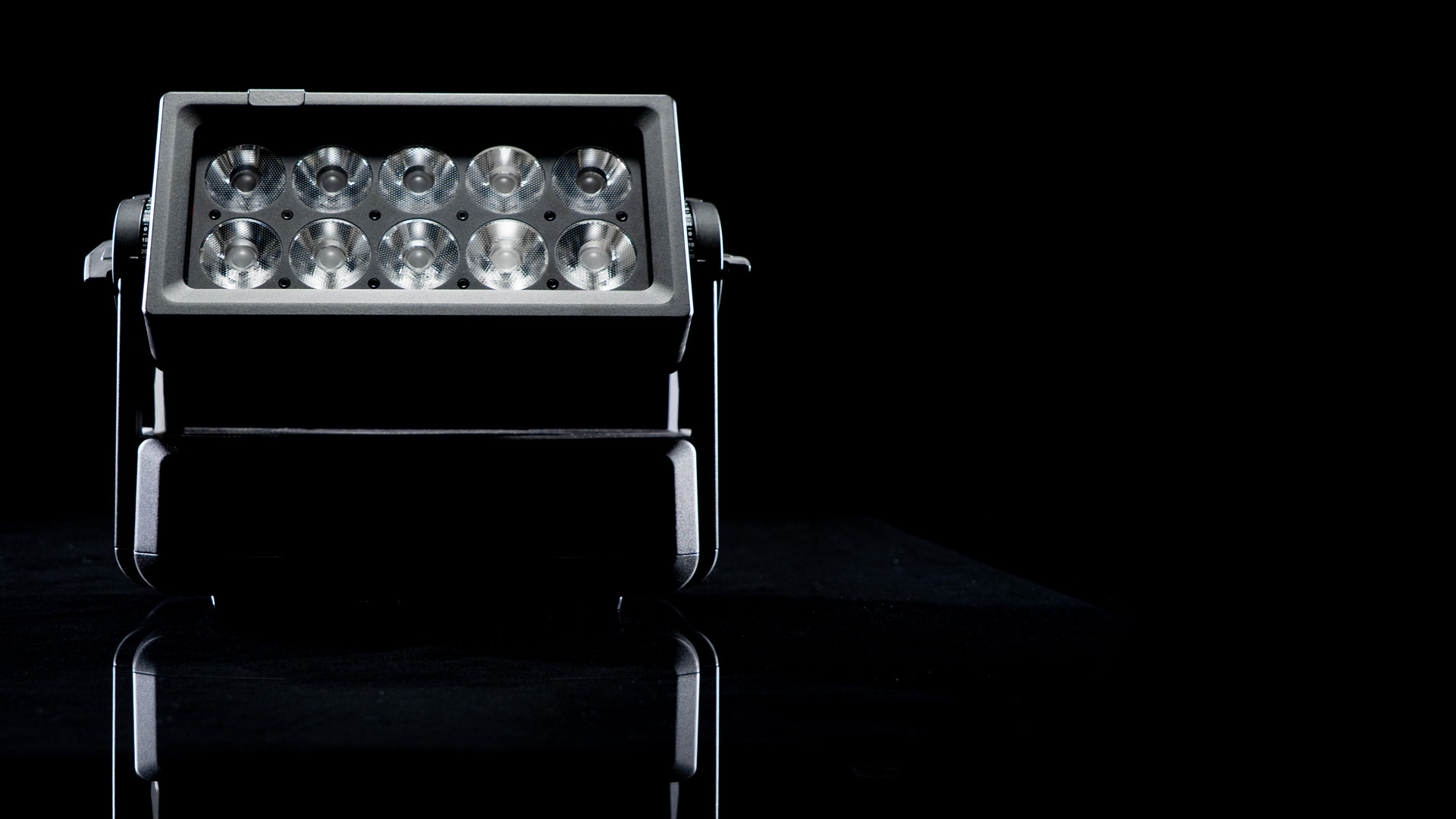

Equipped with 10 × 20W RGBL LEDs, NEO lite generates an impressive luminous flux of over 9.000 lumens and delivers full power even when running on batteries – without compromise.
Whether connected to the mains or used on the go: this exceptional brightness makes the product unique on the market and the first choice for anyone who expects maximum performance even when traveling. With up to 33.000lx @ 3m and 12.000lx @ 5m (both at 5.600K), it is the most powerful battery-operated washlight at its size.

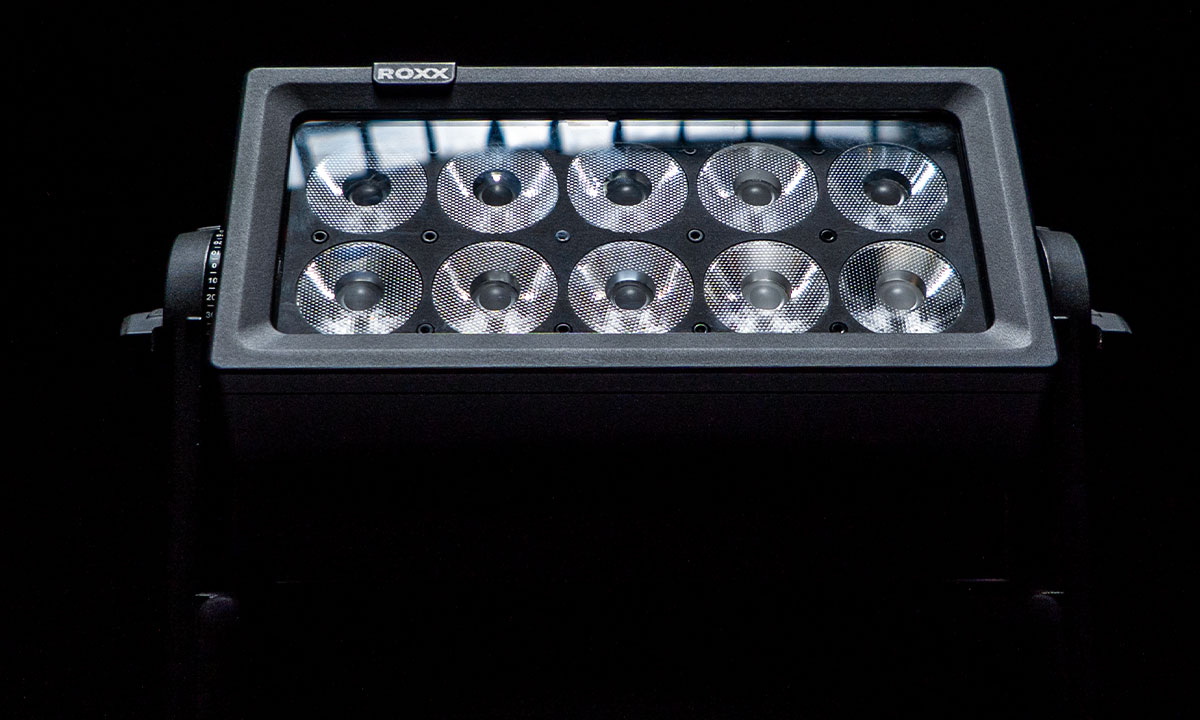

Its precisely engineered TIR lens produces a sharp 8.0° beam, while optional magnetic filters allow tool-free adjustments up to circular 80° or elliptical angles, unlocking maximum creative flexibility.

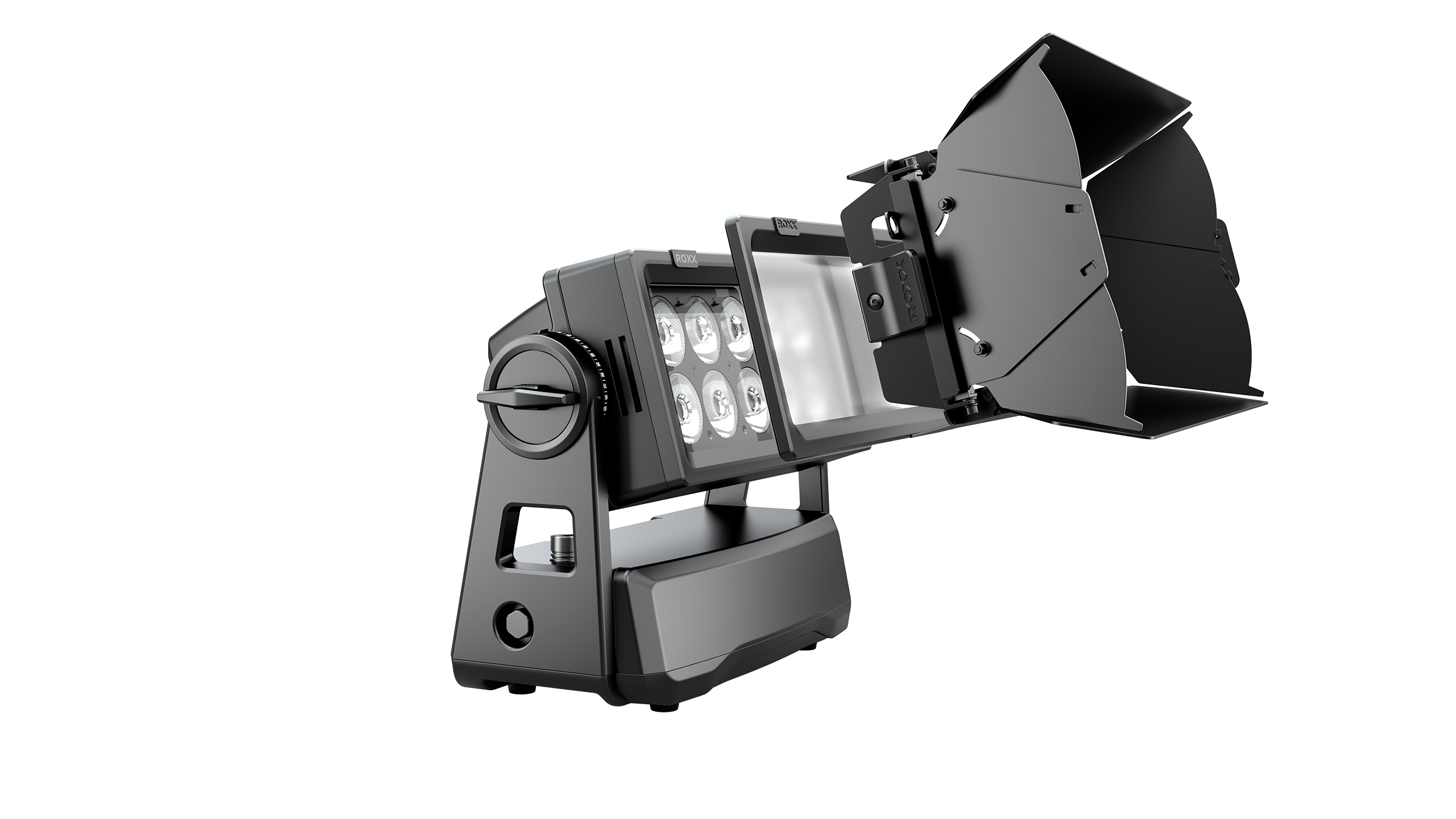

Magnetic Barndoor & Filters
For maximum flexibility, optional magnetic filters (10°, 15°, 40°, 80°, 10×60°, 60×10°) and an 8-way barndoor extend the creative possibilities. The rugged IP65 / IK08 housing, crafted from aluminium and nylon with a tempered glass front lens, ensures durability in both indoor and outdoor usage.
- 10x20W RGBL LEDs provide a light intensity of 33.000lx at 3m and 12.000lx at 5m (both at 5.600K)
- Luminous flux of more than 9.000lm @ Full (RAW/AC & battery)
- Linear CTC control from 2.000K – 10.000K
- The precisely engineered TIR lens produces a sharp 8.0° beam
- Only 7.4kg without a battery and 8.9kg with one
- Optional magnetic filters enable various circular and elliptical beam angles for perfect camera applications
- High CRI & TLCI of up to 85 for accurate color rendering

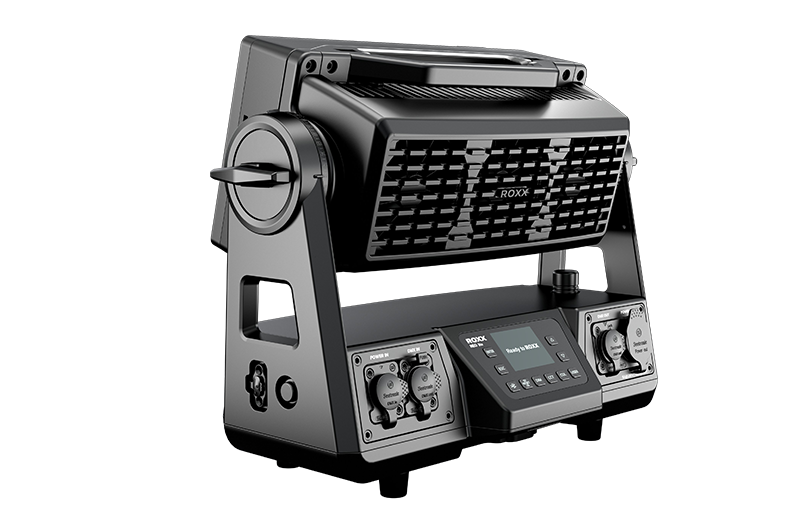

- The specially developed copper heatpipe cooling system guarantees stable luminous intensity even at high ambient temperatures
- IP65 rated for Indoor & Outdoor use
- Integrated CRMX transceiver and Bluetooth module for wireless DMX setup according to industry standard and direct control via ROXX app
- Integrated Near Field Communication (NFC) enables addressing and configuration of fixtures wirelessly and even when fixture power is not present

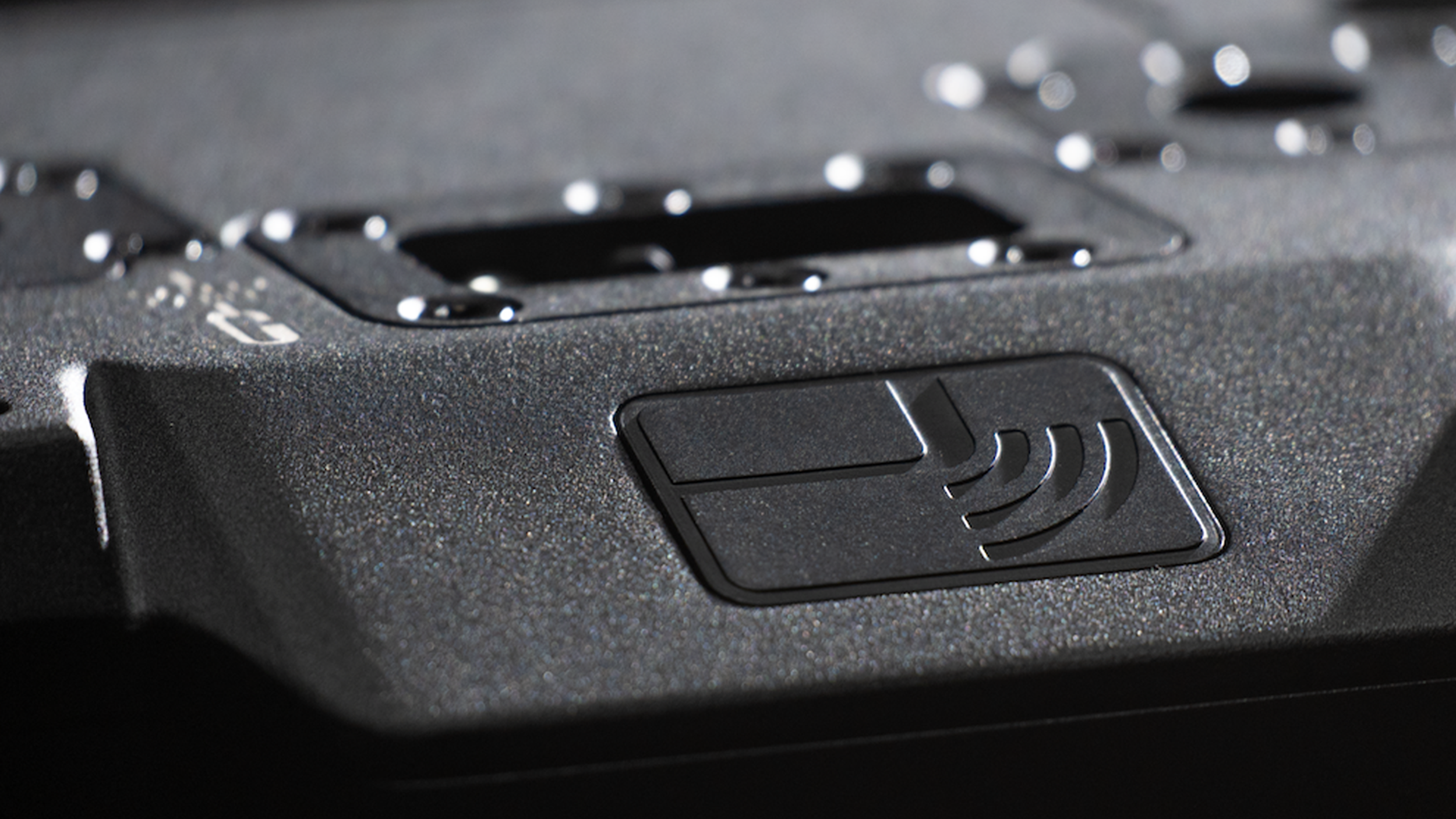

Near Field Communication (NFC)
NEO lite also integrates advanced wireless technology: a built-in CRMX transceiver, Bluetooth, to be ROXX.APP ready, and NFC for a seamless setup, addressing, and control via the intuitive ROXX NFC app – even without power connected. The 2″ TFT display with 10 backlit controls offers direct access to dimmer, CCT, color modes, and wireless settings, streamlining operation for professionals on the go.

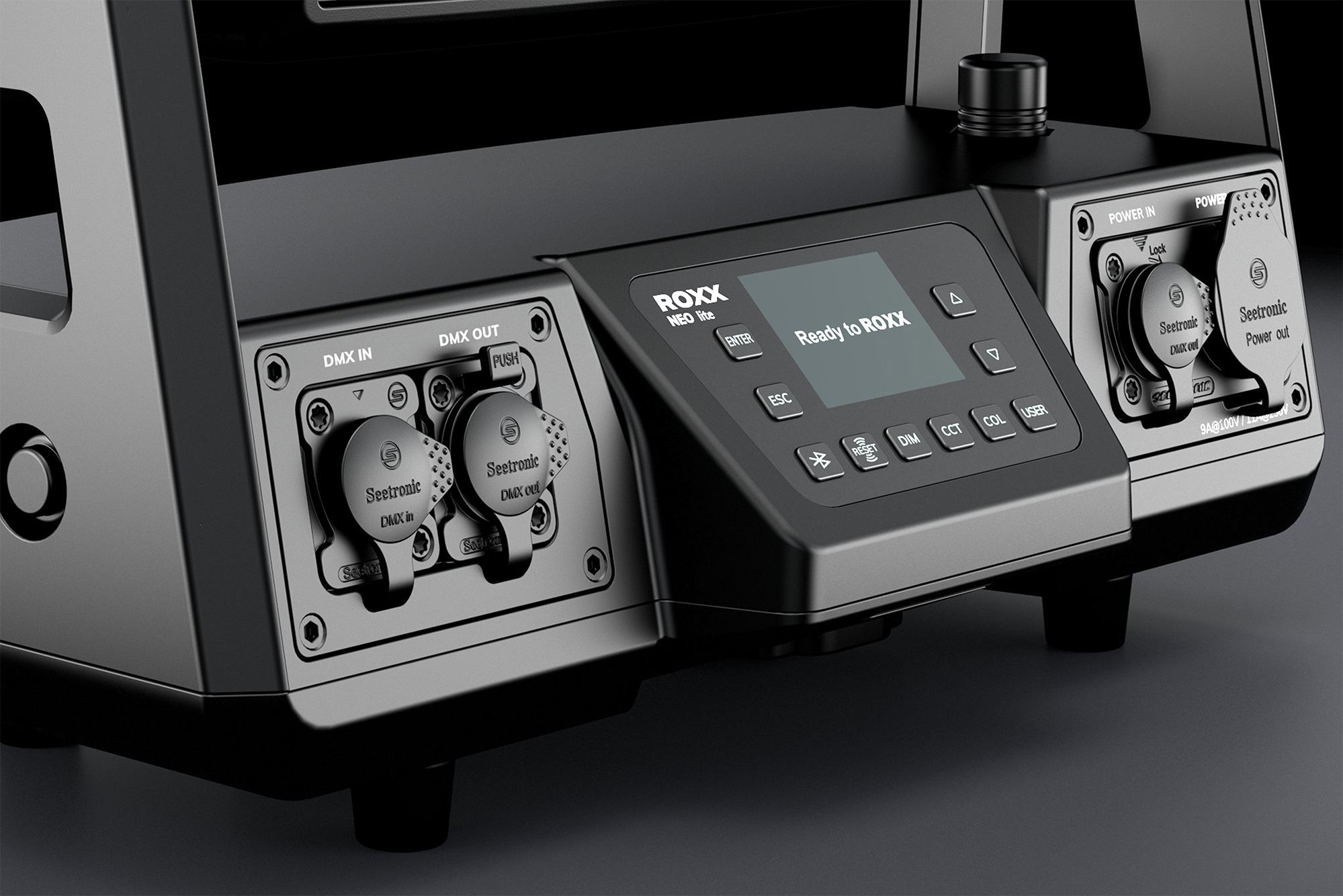

User-friendly 2″ TFT display
The user-friendly 2” TFT display, complemented by backlighted buttons, provides direct access to dimmer, CCT, gels, app control and CRMX functions, simplifying operation for users of all levels.
In floor-mounted applications, the display is angled upwards, allowing for easy visibility and adjustment without the need to bend or reposition the fixture. This thoughtful design ensures quick and intuitive handling, even in challenging setups.
Technical Data
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 10x 20W RGBL |
| Type of optical system | TIR lens |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ Full (50%) | 8.0° (native) |
| Maximum Field angles @ Full (10%) | 15.0° (native) |
| Color temperature range | 2000-10.000K |
| CRI/Ra | of up to 85 |
| TLCI | of up to 85 |
| Luminous flux @ Full (RAW / AC & Battery) | 9030 lm |
| Luminous flux @ 5600K (Normal CRI) | 8432 lm |
| Luminous flux @ 5600K (High CRI) | 5210 lm |
| illuminance Lux @ 5m / 16,4ft (@ Full / RAW / AC & battery) | 12761 lux |
| illuminance Lux @ 5m / 16,4ft (@ 5600K Normal CRI) | 11844 lux |
| illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI) | 7213 lux |
| Efficancy @ Full (max) | 43 lm/W |
Dimensions & Weight
| IP class | IP 65 |
| IK class | IK08 |
| Body material | Aluminum, Nylon |
| Lens material | Tempered glass front |
| Net dimensions (w x h x d) | 367,5 x 261,5 x 174,5 mm |
| Net dimensions inches (w x h x d) | 14,47 x 10,45 x 6,87 inch |
| Net weight (incl. battery) | 8.9kg/19,62lbs |
| Net weight (without battery) | 7.4kg/16.31lbs |
| Tilt | 188° |
| Tilt Locking System | Mechanical locking system |
Electrical Data
| AC Power, max | 100 – 240V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Power Max. Out | 215W @ 230V (0.96A) / 228W @ 100V (2.29A) |
| Power Linking | 11 units @ 230V / 5 units @ 100V |
| Power Factor | 0,995 |
| Standby Power | 7W |
| Power Thru max. @ 100V | 9A (ETL) / 12A |
| Power Thru max. @ 230V | 11A (ETL) / 14A |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operation & Controller
| DMX Modes | 12 |
| Channels | 3CH CCT, 3CH RGB, 6CH RGB, 8CH RGB, 11CH RGB, 15CH RGB, 4CH DIRECT, 8CH DIRECT, 9CH DIRECT, 12CH DIRECT, 17CH DIRECT, 12CH HSI |
| Protocol | USITT DMX512A |
| RDM ANSI E1.20 | |
| CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S | |
| Bluetooth (Low Energy) | |
| Setting and addressing | 2.0″ TFTdisplay / 10 controls |
| RDM ANSI E1.20 | |
| Near Field Control (NFC) | |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
| Wireless DMX | Lumen Radio transmitt & receive function (CRMX) |
| indicator | 2.0″ TFT display |
| controls | 10 backlighted controls |
| Strobe | 0-30Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power In | TRUE1 compatible input & link-thru sockets |
| USB Firmware Update | IP65 USB-C socket / USB update box |
Installation

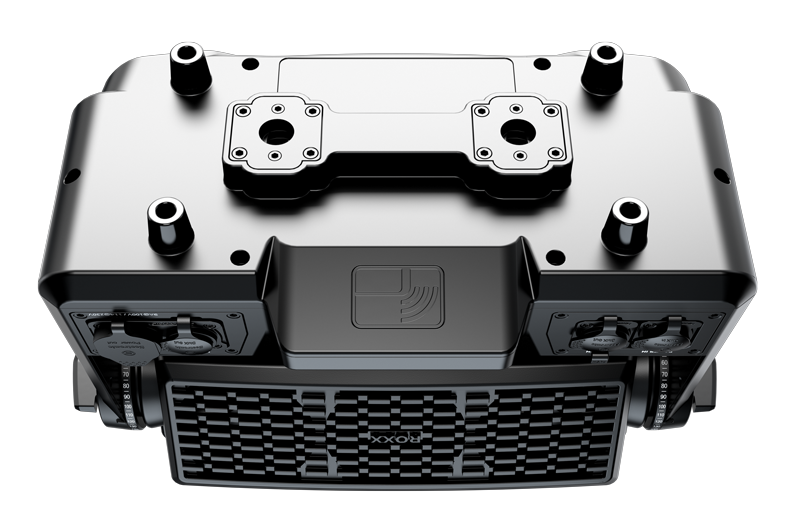

| Mounting point on fixture bottom side | 2x 1/4 turn Omega Bracket |
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 2x head-mount (handle) for accessory safety wires |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Forced Air, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, AC Operating | -40°C to 45°C |
| Temperature range, Start-Up AC Operating | -20° to 45°C |
| Temperature range, Storage AC only | -40°C to 80°C |
| Temperature range, Battery Operating | -20° to 40°C |
| Temperature range, Start-Up Battery Operating | -20° to 40°C |
| Temperature range, Storage Battery | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
Battery
| Battery Typical Capacity | 14Ah / 302,4Wh (24x Lithium-Ionen including BMS) |
| Lifetime | 70% after 300 cycles |
| Battery Run Time | up to 24 hours |
| Charging Time (nominal) | 4 1/2 hours |
Included / Optional
| Included items | 2m Power Cable |
| Optional Accessories | Battery Kit, magnetic filters (circular, elliptical-horizontal), 8-Way Barndoor, Omega Bracket ST |
| Color options | Black – RAL 9004 (Standard) |
| Custom color – any RAL (on request) |
Conformity
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX NEO lite | Code |
| ROXX NEO lite | 14200501 |
| Accessories | Code |
| NEO lite Battery Kit | 14908300 |
| NEO lite Filters (Very Narrow 10°) | 14907001 |
| NEO lite Filters (Narrow 15°) | 14907101 |
| NEO lite Filters (Medium 40°) | 14907201 |
| NEO lite Filters (Wide 80°) | 14907301 |
| NEO lite Filters (Horizontal 60°x10°) | 14907401 |
| NEO lite Filters (Vertical 10°x60°) | 14907501 |
| 8-Way Barndoor | 14907601 |
| Omega Bracket ST | 90900002-2 |
| Casetec Case 6x NEO lite Upside down | TBA |
| Casetec Case 6x NEO lite Head up | TBA |
| Amptown Case 6x NEO lite | TBA |
