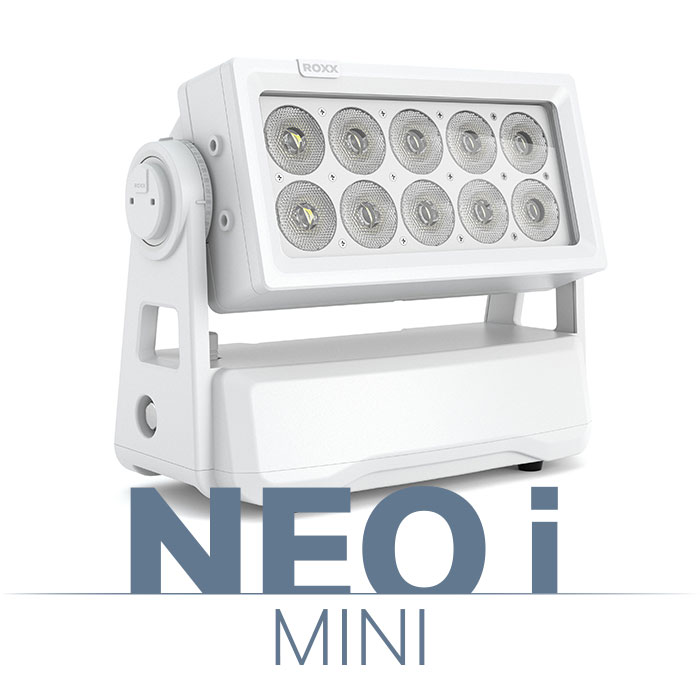

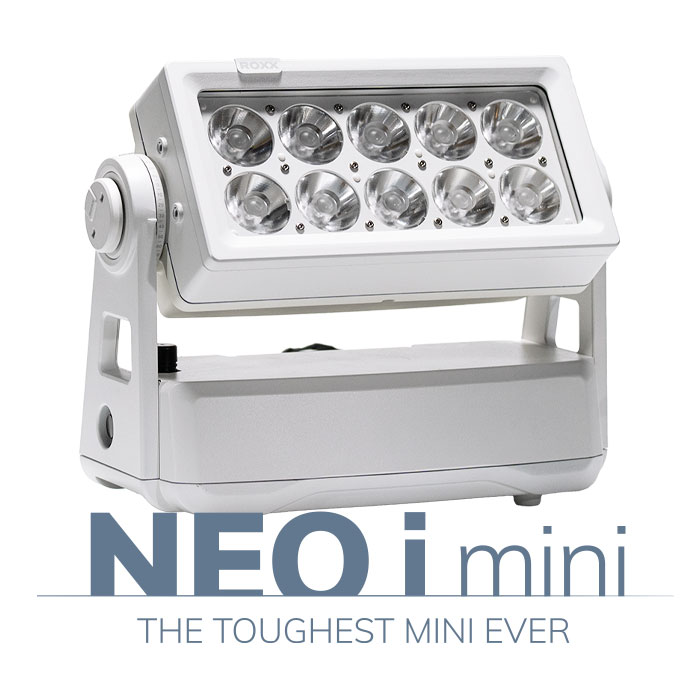

Small in size, extreme in resilience.

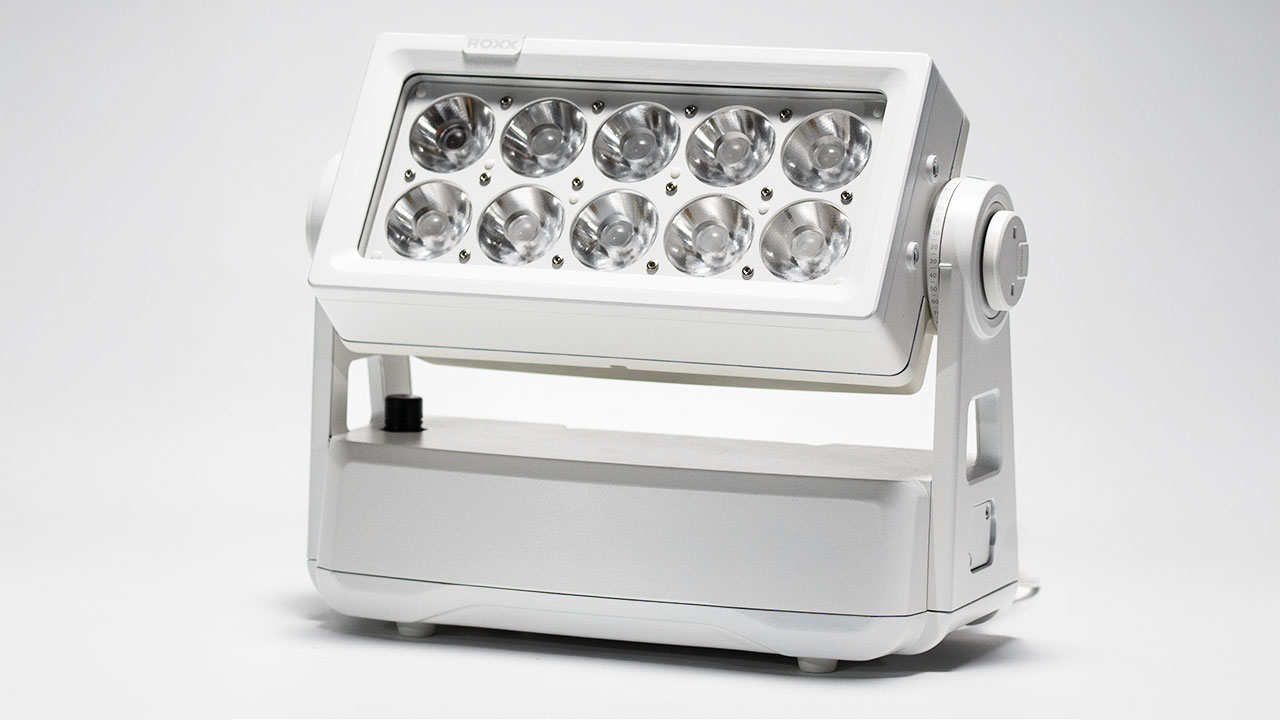

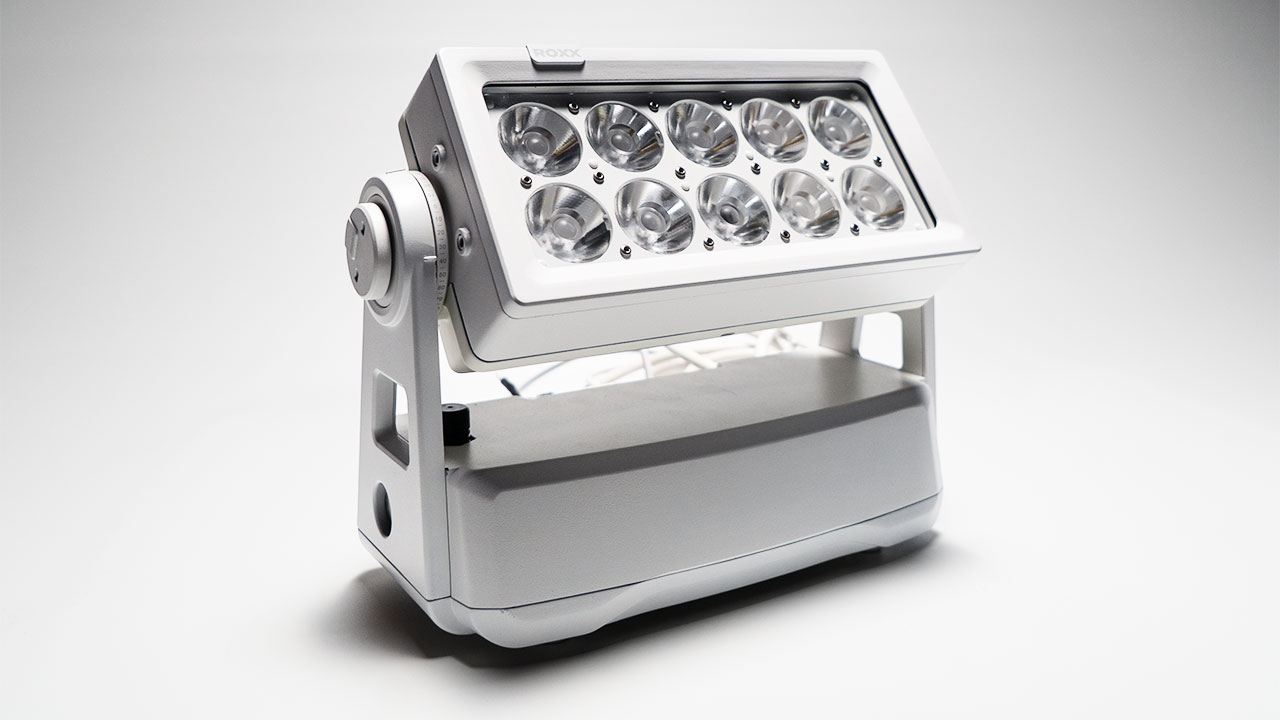

Combining the powerful performance of the NEO mini with the robust design of the NEO i, the NEO i mini is built for permanent outdoor and architectural installations. Despite its compact size and low weight of just 8.5 kg, it delivers impressive output via 10 high-power RGBL LEDs, featuring a sharp 9° beam angle for precise and punchy illumination. It offers stunning color rendering and smooth dimming in any environment.
INCREDIBLE OUTPUT WHILE LIGHTWEIGHT
10 high-power RGBL LEDs, featuring a sharp 9° beam angle for precise and punchy illumination, while the device itself remains compact and weighs just 8.5 kg.
PERFECTLY PROTECTED
With an IP66 rating, C5-M corrosion protection, and stainless steel hardware, it is engineered to withstand even the harshest conditions.
HIGH CRI & TLCI
High CRI & TLCI of up to 85 for accurate color rendering.
With an IP66 rating, C5-M corrosion protection, and stainless steel hardware, it is engineered to withstand even the harshest conditions. The fixture is configured wirelessly via the ROXX NFC App, eliminating the need for a display or manual interface. A range of optional accessories, such as glare shields and mounting plates, ensures maximum flexibility for permanent installations.
Optional accessories
Full Anti-Glare Shield
Half Anti-Glare Shield
ROXX Guard
ROXX Grid
Wall Mount Floor
Wall Mount 90°
Omega Bracket STi
Internal Filterframes
Optional pre-installed filters enable various circular and elliptical beam angles.

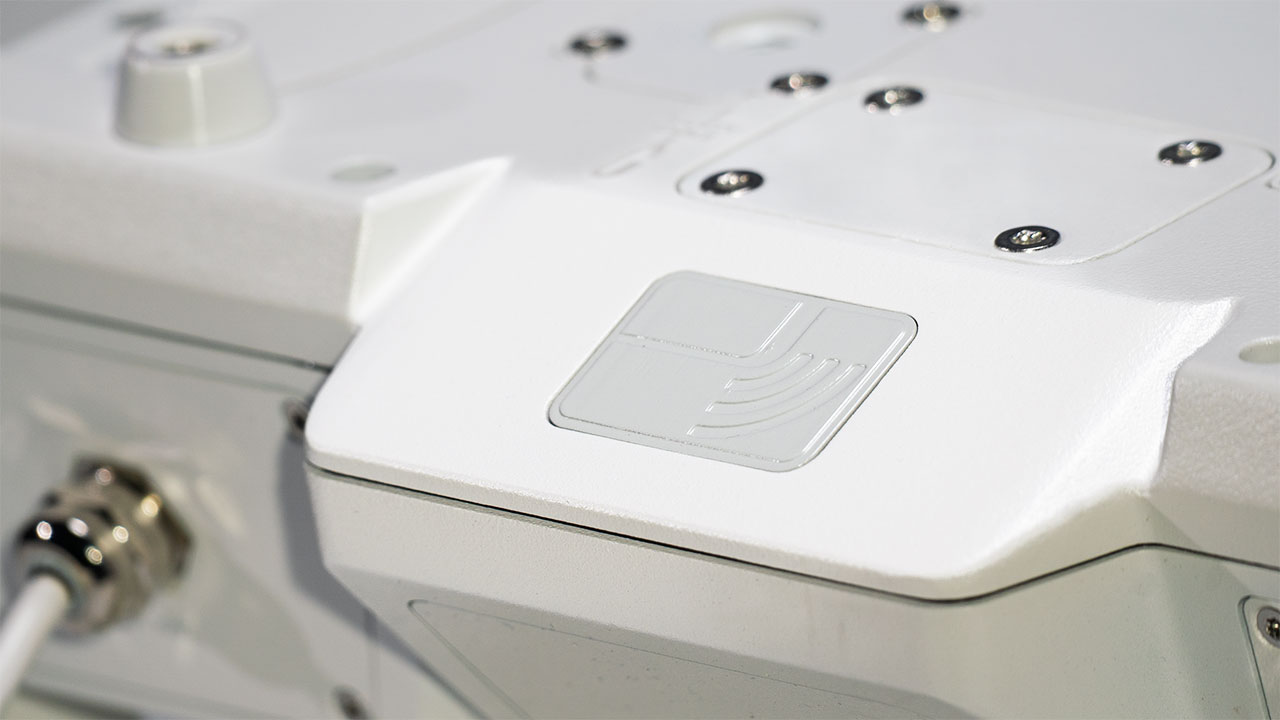

Near Field Communication
ROXX NFC App – Seamless control for professional lighting
Designed for professionals in the lighting industry, the ROXX NFC app offers state-of-the-art control over ROXX devices equipped with Near Field Communication (NFC) technology. With this app, users can manage and configure their devices directly from an iOS or android-compatible device, provided it supports NFC, optimizing workflows and increasing productivity.
One of the app’s standout features is the ability to patch multiple devices in seconds. An innovative multi-patch routine can drastically reduce setup time and make the entire process faster and more efficient. This speed not only saves valuable time, but also reduces labor costs, allowing more focus on the creative aspects of lighting design.
Technical Data
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 10x 60W RGBL |
| Type of optical system | TIR lens |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ Full (50%) | 8° (native) |
| Maximum Field angles @ Full (10%) | 16° (native) |
| Color temperature range | 2000-10.000K |
| CRI/Ra @ 5600K | 85 |
| TLCI @ 5600K | 74 |
| Luminous flux @ Full (RAW) | 20.681 lm (677,6W) |
| Luminous flux @ 5600K (Normal CRI) | 20.210lm (533,1W) |
| Luminous flux @ 5600K (High CRI) | 14.699lm (299,8 W) |
| illuminance Lux @ 5m / 16,4ft (@ Full) | 22.739lx |
| illuminance Lux @ 5m / 16,4ft (@ 5600K Normal CRI) | 22.297lx |
| illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI) | 15.863lx |
| Efficancy @ Full (max) | 49 lm/W |
Dimensions & Weight
| IP class | IP 66 |
| IK class | IK09 |
| Body material | Aluminum, Nylon, Stainless Steel |
| Lens material | Tempered glass front |
| Net dimensions (w x h x d) | 367,5 x 261,5 x 174,5 mm |
| Net dimensions inches (w x h x d) | 14,47 x 10,30 x 6,87 inches |
| Net weight (including Yoke) | 7,7 kg/16,97 lbs |
| Tilt | 220° |

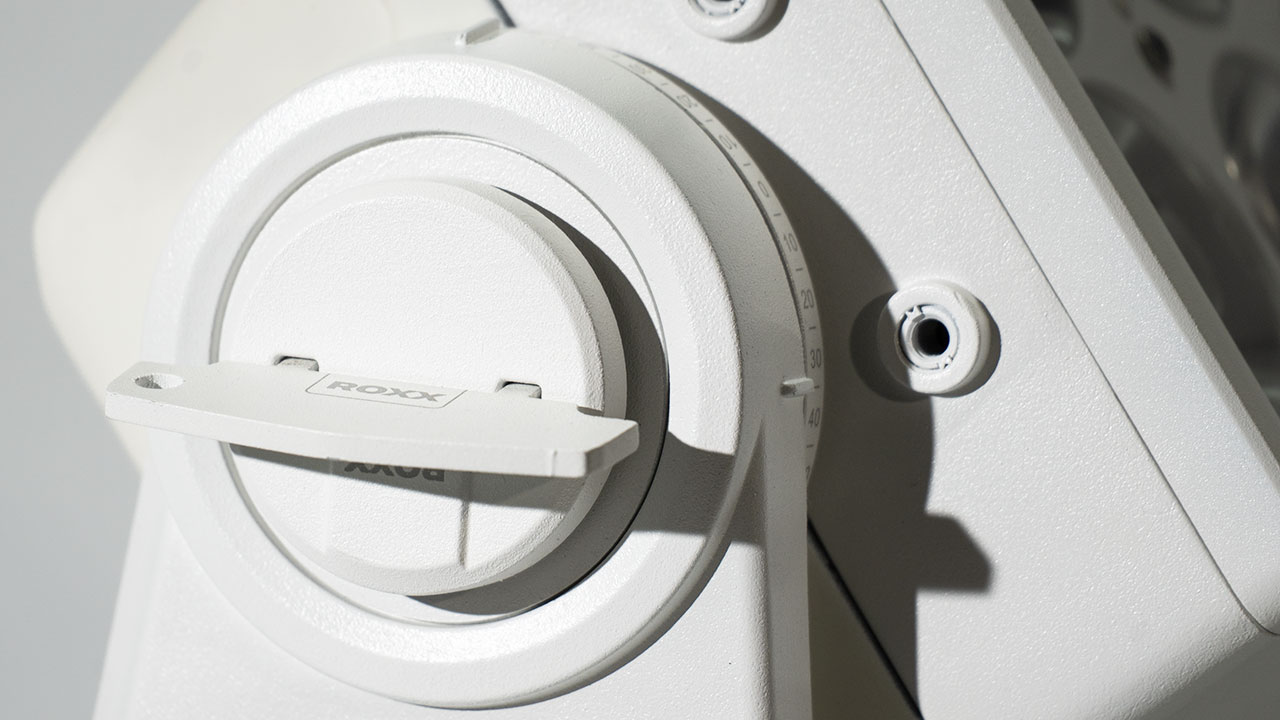

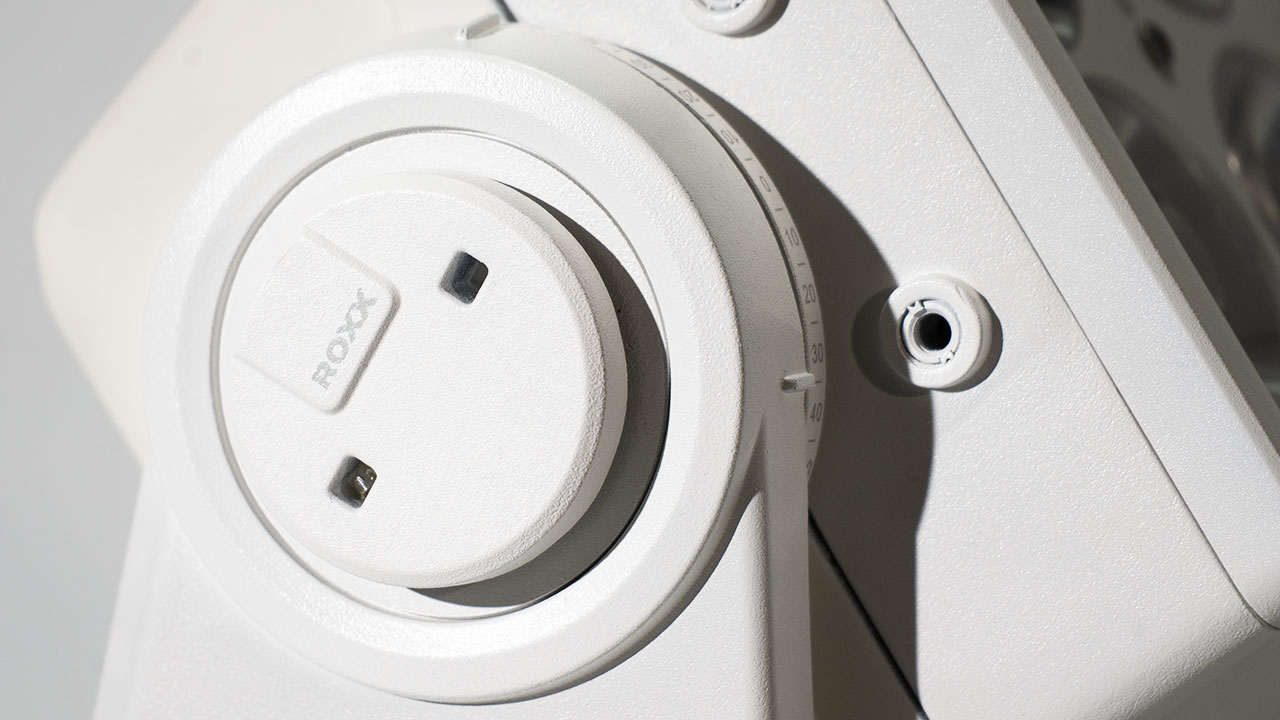

| Tilt Locking System | Locking system including angle indicator |
Electrical Data
| AC Power, max | 90 – 285V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Max. power consumption | 674W @ 100V / 644W@ 230V |
| Standby Power | 13,4W |
| Power Thru max. @ 100V | 5A (ETL) / 8A |
| Power Thru max. @ 230V | 9A (ETL) / 12A |
| Power Linking | 3 units @ 230V / 1 unit @ 120V |
| Power Factor | PF0.996 @ 100V / PF0.979 @ 230V |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operation & Controller
| DMX channels | 3CH CCT, 3CH RGB, 6CH RGB, 8CH RGB, 11CH RGB, 15CH RGB, 4CH DIRECT, 8CH DIRECT, 9CH DIRECT, 12CH DIRECT, 17CH DIRECT, 12CH HSI |
| DMX modes | 12 |
| Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S USITT DMX512A RDM ANSI E1.20 Bluetooth Low Energy (BLE) |
| Setting and addressing | Near Field Control (NFC) RDM ANSI E1.20 |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
| Wireless DMX | Lumen Radio transmitt & receive function (CRMX) |
| indicator | none |
| controls | none |
| Strobe | 0-30Hz |

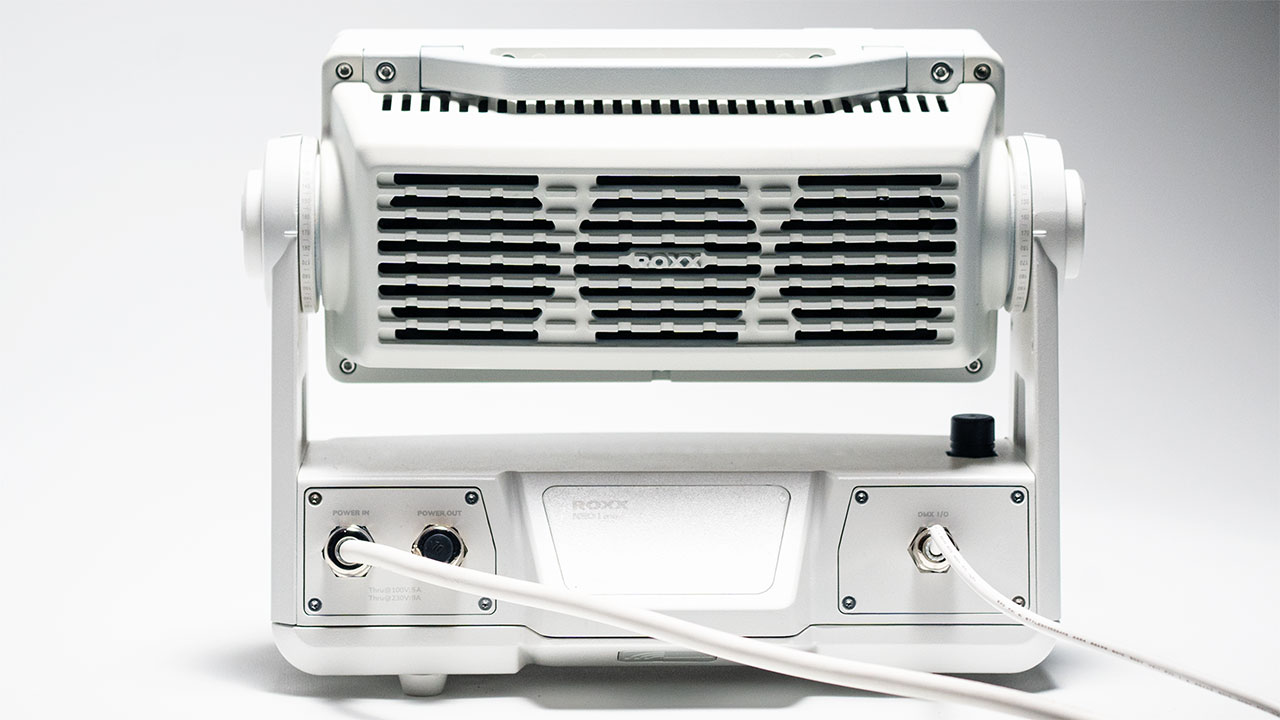

| DMX I/O | PG9 incl. 3m meter cable for DMX In and DMX Thru |
| Power In | PG11 incl. 3m Power cable with open ends & cable end-ferrules |

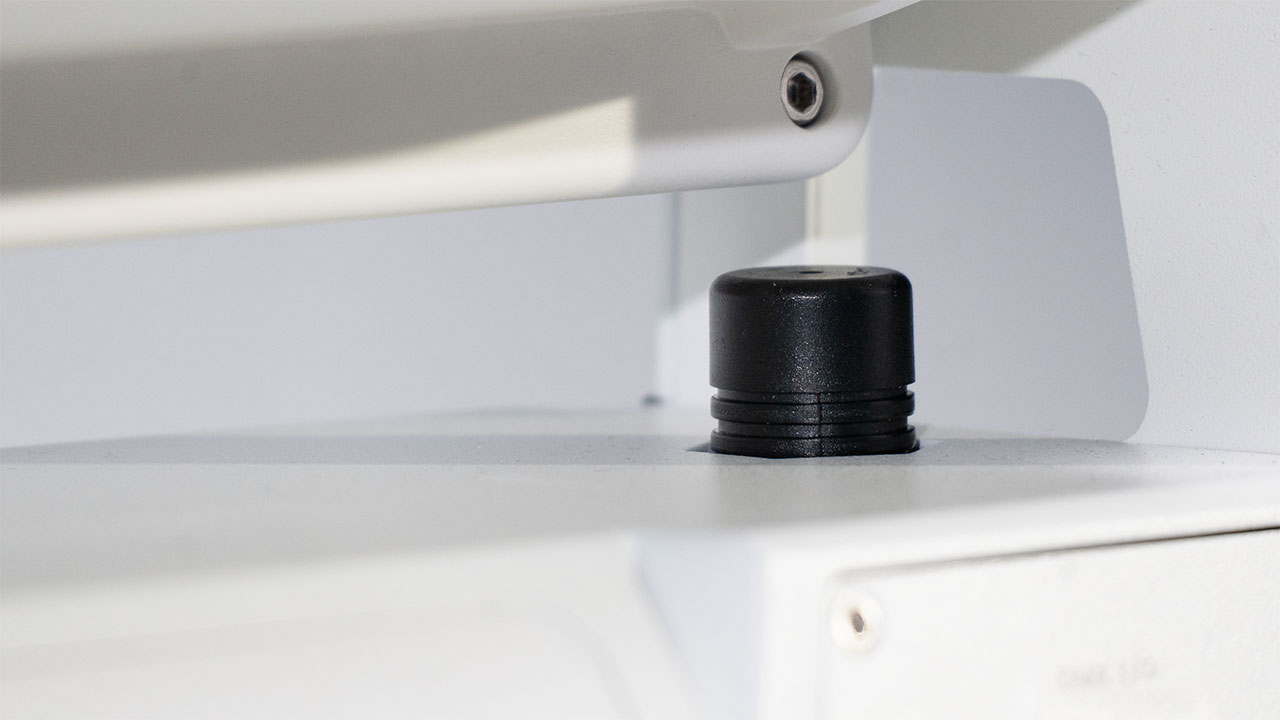

| Power Out | PG11 incl. sealing cap |
Installation
| Mounting point on fixture bottom side | 1x 1/4 turn Omega Bracket |
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 1x bottom mount for fixtures safety wire / 2x Yoke mount for accessory safety wires |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Forced Air, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, Operating | -40°C to 45°C |
| Temperature range, Start-up | -20°C to 45°C |
| Temperature range, Storage | -40°C to 80°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | none |
| Optional Accessories | Multiple in-built filters (circular / elliptical), Half Anti-Glare Shield, Full Anti-Glare Shield, Grid, Rock Guard, Floor Mounting Plate, Wall Mounting Plater, Omega Bracket STi |
| Color options | White – RAL 9010 C5H coated (Standard), Black – RAL9004 C5H coated |
| Custom color – any RAL (on request) |
Conformity
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX NEO mini | Code |
| ROXX NEO i mini | 14301002 |
| Accessories | Code |
| Omega Bracket STi | 90900025 |
| NEO i mini Filterframe 10° very narrow | 14907024 |
| NEO i mini Filterframe 15° narrow | 14907124 |
| NEO i mini Filterframe 40° medium | 14907224 |
| NEO i mini Filterframe 80° wide | 14907324 |
| NEO i mini Filterframe 60°x10° Horizontal | 14907424 |
| NEO i mini Filterframe 10°x60° Vertical | 14907524 |
| NEO i mini ROXX Guard | 14908002 |
| NEO i mini ROXX Grid | 14908102 |
| NEO i mini ROXX Anti-Glare-Shield, Half | 14907802 |
| NEO i mini ROXX Anti-Glare-Shield, Full | 14907902 |
| NEO i mini Casetec Case 6 pcs. (Head Up) | 14907741-B |
| NEO i mini Casetec Case 6 pcs. (Upside Down) | 14907741 |
| NEO i mini Amptown Case 6 pcs. | 14907711 |
