FEATURES

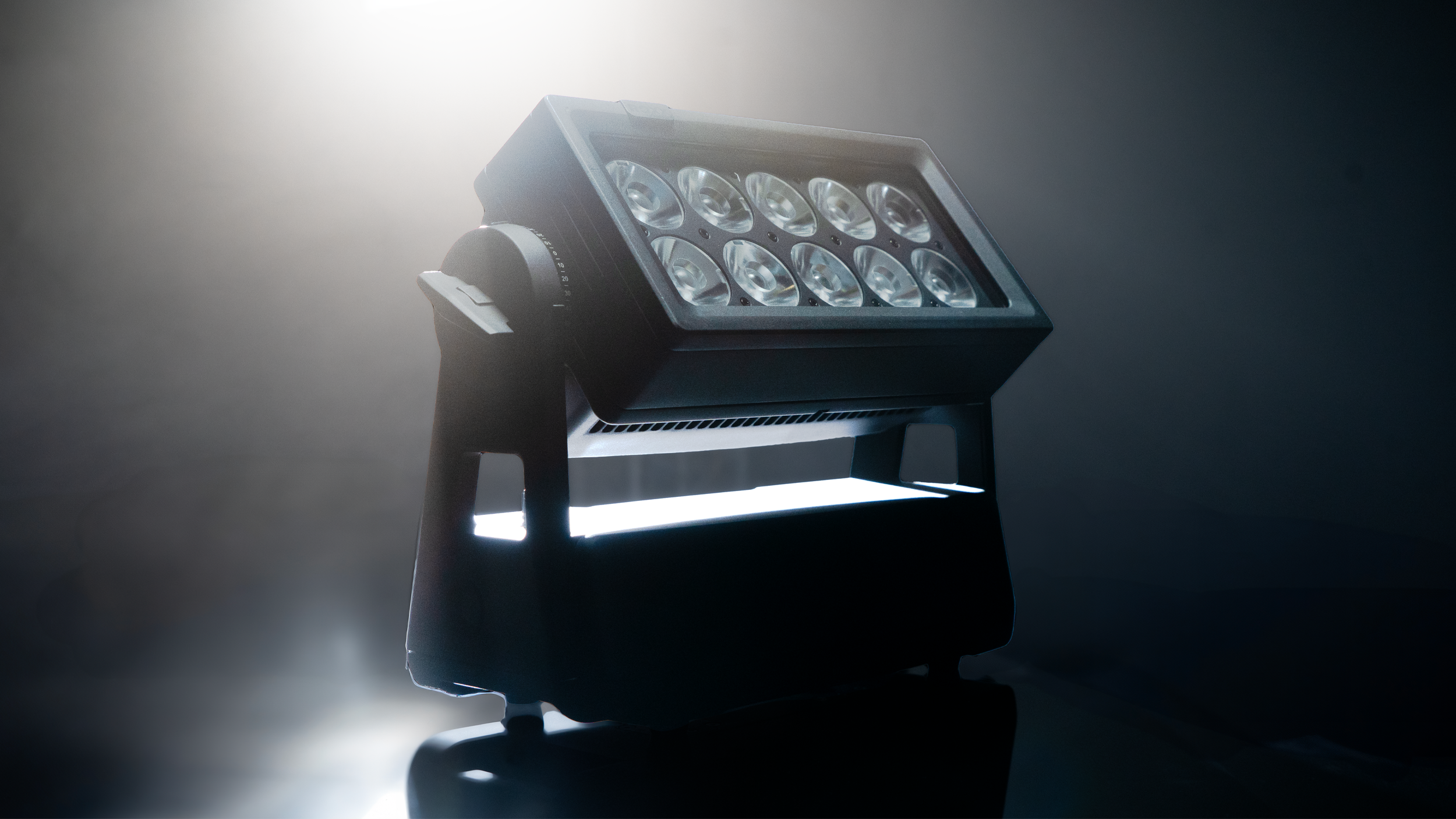

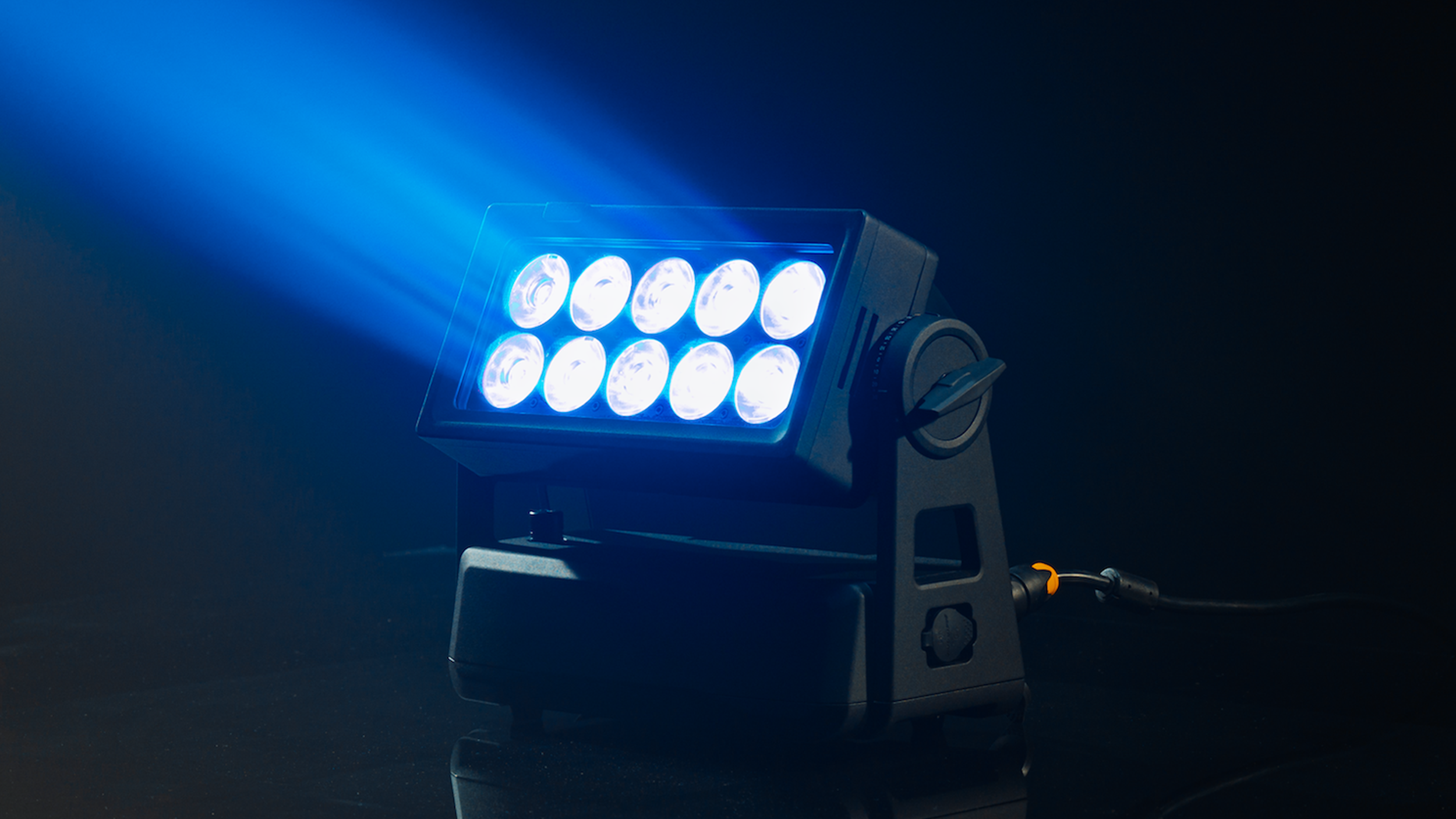

INCREDIBLE OUTPUT WHILE LIGHTWEIGHT
10x60W LED’s deliver more than 20.000lm, while the device itself remains compact and weighs just 7.5 kg.
COPPER HEATPIPE COOLING SYSTEM
The specially developed copper heatpipe cooling system guarantees stable luminous intensity even at high temperatures.
HIGH CRI & TLCI
High CRI & TLCI of 85 across the white spectrum for accurate color reproduction and a specially developed 8° TIR lens for high illuminance.
Magnetic Barndoor & Filters
Optional magnetic filters and a magnetic barndoor provide precise beam control for ultimate flexibility. Available filters include circular angles of 10°, 15°, 40°, and 80°, as well as elliptical options of 10°x60° and 60°x10°, ensuring perfect on-camera applications. The magnetic barndoor allows for additional beam shaping, minimizing spill light and enhancing directional control for refined lighting designs.
- 10x60W RGBL LEDs deliver 20.000lm
- Linear CTC control from 2000K – 10.000K
- The NEO mini only weighs 7.5kg while delivering the same output as other, much bigger fixtures
- The specially developed 8° TIR lens enables high illuminance even at long distances and guarantees homogeneous color mixing
- Optional magnetic filters enable various circular and elliptical beam angles for perfect camera applications
- CRI & TLCI of up to 85 over the entire white color range
- The specially developed copper heatpipe cooling system guarantees stable luminous intensity even at high ambient temperatures
- IP65 rated for Indoor & Outdoor use
- Integrated CRMX transceiver and Bluetooth module for wireless DMX setup according to industry standard and direct control via ROXX app
- Integrated Near Field Communication (NFC) enables addressing and configuration of fixtures wirelessly and even when fixture power is not present
Near Field Communication (NFC)
Designed for professionals in the lighting industry, the ROXX NFC app offers state-of-the-art control over ROXX devices equipped with Near Field Communication (NFC) technology. With this app, users can manage and configure their devices directly from an iOS or android-compatible device, provided it supports NFC, optimizing workflows and increasing productivity.

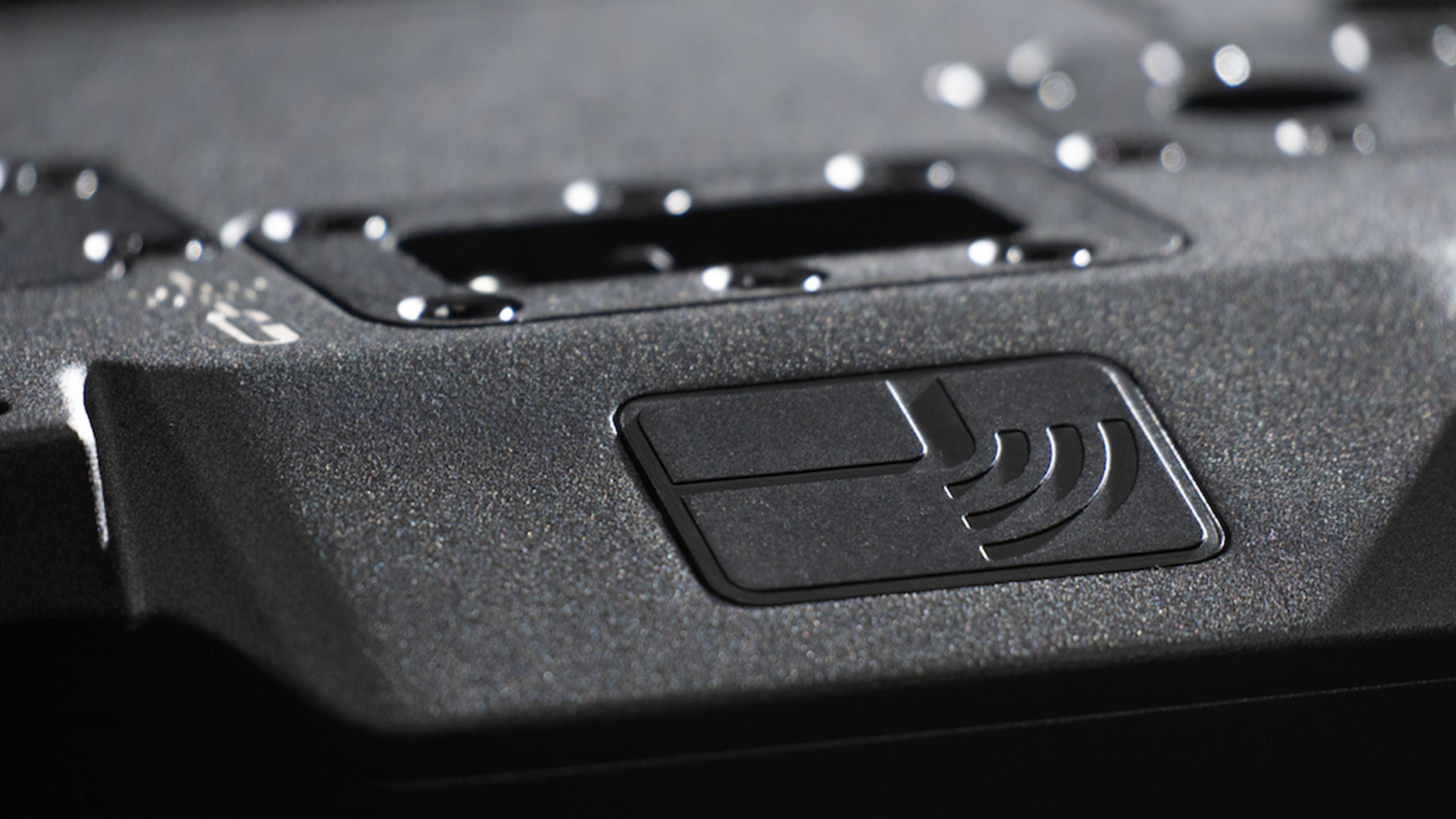

For the NEO mini, the NFC chip is conveniently located underneath the upwards-angled display for easy access.

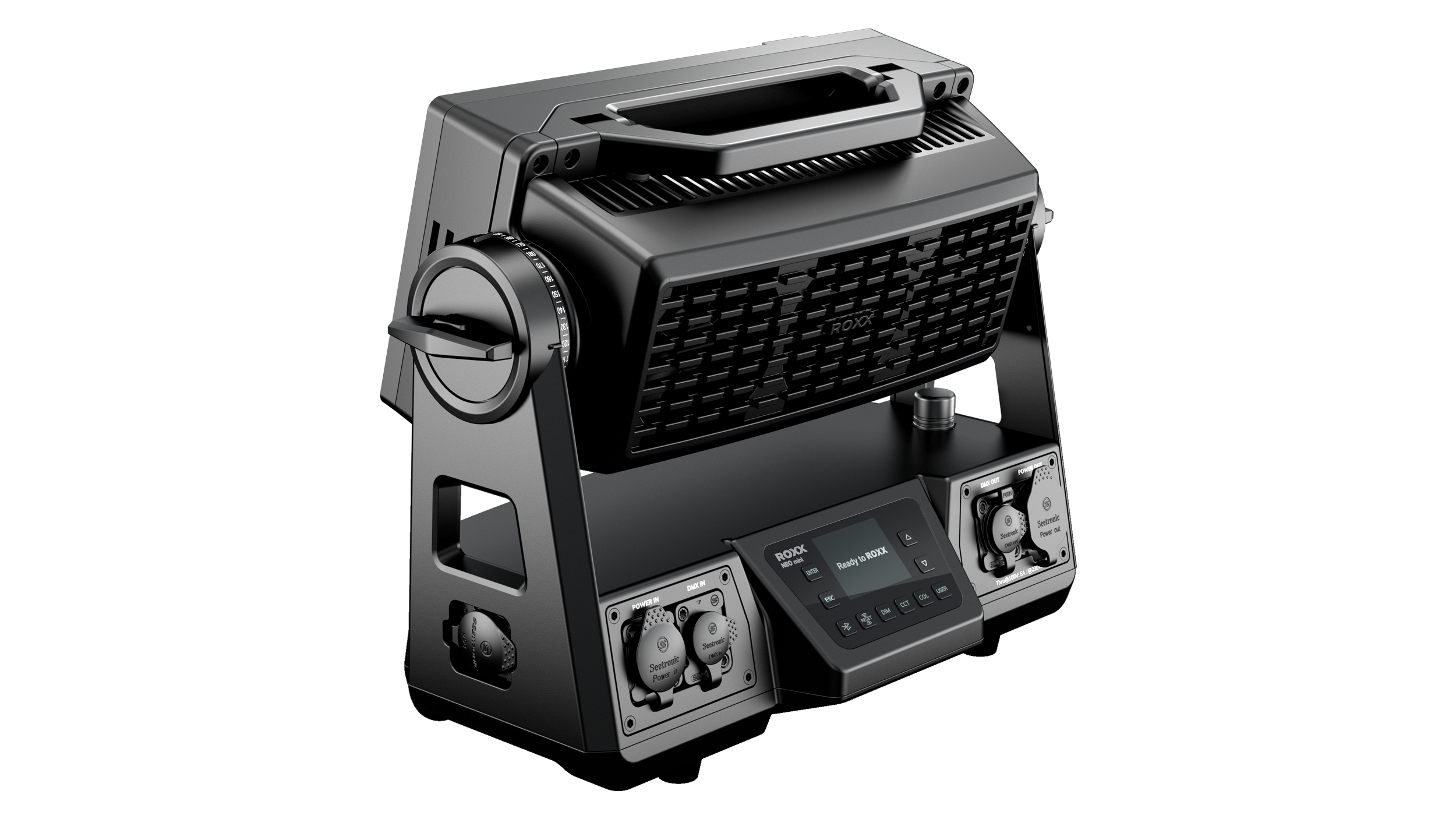

User-friendly 2″ TFT, angled upwards, display
The user-friendly 2” TFT display, complemented by backlighted buttons, provides direct access to dimmer, CCT, gels, app control and CRMX functions, simplifying operation for users of all levels.
In floor-mounted applications, the display is angled upwards, allowing for easy visibility and adjustment without the need to bend or reposition the fixture. This thoughtful design ensures quick and intuitive handling, even in challenging setups.
Technical Data
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 10x 60W RGBL |
| Type of optical system | TIR lens |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ Full (50%) | TBA |
| Maximum Field angles @ Full (10%) | TBA |
| Color temperature range | 2000-10.000K |
| CRI/Ra @ 5600K | TBA |
| TLCI @ 5600K | TBA |
| Luminous flux @ Full (RAW) | TBA |
| Luminous flux @ 5600K (Normal CRI) | TBA |
| Luminous flux @ 5600K (High CRI) | TBA |
| illuminance Lux @ 5m / 16,4ft (@ Full) | TBA |
| illuminance Lux @ 5m / 16,4ft (@ 5600K Normal CRI) | TBA |
| illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI) | TBA |
| Efficancy @ Full (max) | TBA |
Dimensions & Weight
| IP class | IP 65 |
| IK class | IK08 |
| Body material | Aluminum, Nylon |
| Lens material | Tempered glass front |
| Net dimensions (w x h x d) | 367,5 x 261,5 x 174,5 mm |
| Net dimensions inches (w x h x d) | 14,47 x 10,30 x 6,87 inches |
| Net weight (including Yoke) | 7,5 kg/16,5 lbs |
| Tilt | 220° |
| Tilt Locking System | Locking system including angle indicator |
Electrical Data
| AC Power, max | 90 – 285V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Max. power consumption | 674W @ 100V / 644W@ 230V |
| Standby Power | 13,4W |
| Power Thru max. @ 100V | 5A (ETL) / 8A |
| Power Thru max. @ 230V | 9A (ETL) / 12A |
| Power Linking | 3 units @ 230V / 1 unit @ 120V |
| Power Factor | PF0.996 @ 100V / PF0.979 @ 230V |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operation & Controller
| DMX channels | 3CH CCT, 3CH RGB, 6CH RGB, 8CH RGB, 11CH RGB, 15CH RGB, 4CH DIRECT, 8CH DIRECT, 9CH DIRECT, 12CH DIRECT, 17CH DIRECT, 12CH HSI |
| DMX modes | 12 |
| Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S USITT DMX512A RDM ANSI E1.20 Bluetooth Low Energy (BLE) |
| Setting and addressing | 2.0″ TFTdisplay / 10 controls Near Field Control (NFC) RDM ANSI E1.20 |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
| Wireless DMX | Lumen Radio transmitt & receive function (CRMX) |
| indicator | 2.0″ TFT display |
| controls | 10 backlighted controls |
| Strobe | 0-30Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power I/O | TRUE1 compatible input & link-thru sockets |
| USB Firmware Update | IP65 USB socket |
Installation
| Mounting point on fixture bottom side | 1x 1/4 turn Omega Bracket |
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 1x bottom mount for fixtures safety wire / 2x Yoke mount for accessory safety wires |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Forced Air, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, Operating | -40°C to 45°C |
| Temperature range, Start-up | -20°C to 45°C |
| Temperature range, Storage | -40°C to 80°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | 2 m power cable |
| Optional Accessories | Multiple magnetic filters (circular / elliptical), 8-Way Barndoor, Omega Bracket ST |
| Color options | Black – RAL 9004 (Standard) |
| Custom color – any RAL (on request) |
Conformity
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| ROXX NEO mini | Code |
| ROXX NEO mini | 14201001 |
| Accessories | Code |
| Omega Bracket ST | 90900002 |
| NEO mini 8-Way Barndoor | 14907601 |
| NEO mini Filterframe 10° very narrow | 14907001 |
| NEO mini Filterframe 15° narrow | 14907101 |
| NEO mini Filterframe 40° medium | 14907201 |
| NEO mini Filterframe 80° wide | 14907301 |
| NEO mini Filterframe 60°x10° Horizontal | 14907401 |
| NEO mini Filterframe 10°x60° Vertical | 14907501 |
| NEO mini Casetec Case 6 pcs. | 14907741 |
| NEO mini Amptown Case 6 pcs. | 14907711 |
