B.SHOW mini FC
 Battery Powered | RGBL |  |  |  Wireless DMX |
Halfsized but packed with power
With the SHOW mini series, ROXX® continues to fulfill the demand for very high performance, weatherproof lighting fixtures for entertainment and architectural applications, in addition to a major new addition, a battery version. The flexibility and variety of options previously offered in terms of light quality, size and accessories is now even more pronounced, giving customers that special extra bit of freedom of choice.
SHOW mini, the little brother of the SHOW Series.
1
Lithium-ion battery powered
Say goodbye to cable chaos with the new standard battery fixture for ultimate flexible usage without compromise. The powerful lithium-ion battery ensures reliable operation and a runtime of up to 24 hours. The integrated battery management system protects against deep discharge and overcharging.
1
Lithium-ion battery powered
Say goodbye to cable chaos with the new standard battery fixture for ultimate flexible usage without compromise. The powerful lithium-ion battery ensures reliable operation and a runtime of up to 24 hours. The integrated battery management system protects against deep discharge and overcharging.
2
The Fixture
FC Version
FC Version
Whether on stage, at trade fairs or corporate events, the B.SHOW mini FC is convincing in every area of application with a very balanced, luminous light without color shadows, strong and saturated colors as well as high white light quality.

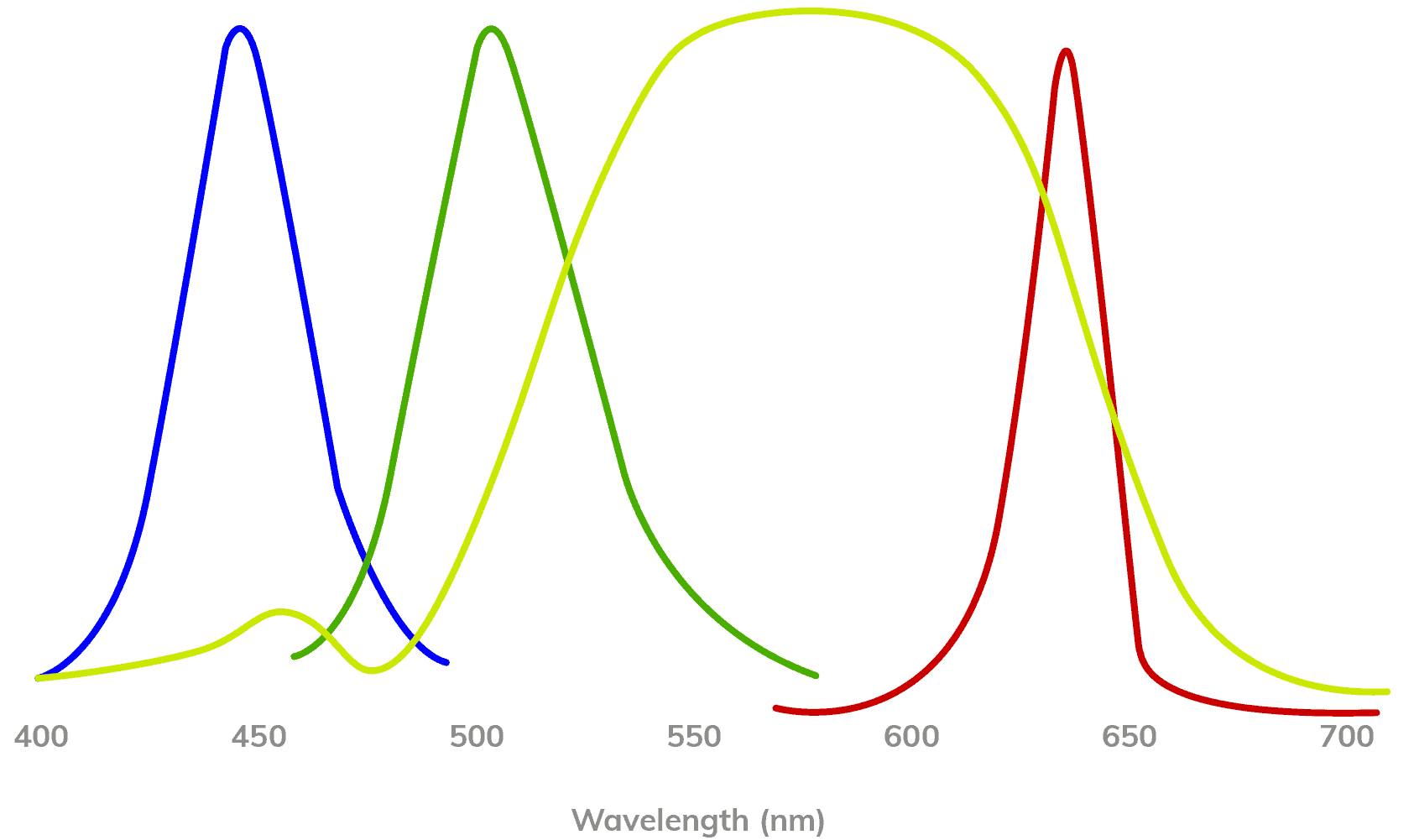

Color Range
Color Range
Adding Lime closes the gap between RGB, extends the color spectrum and improves the white light quality. Therefore, the B.SHOW mini FC enables a great CRI/Ra and ensures a natural color reproduction.
ROXX Color Calibration
ROXX Color Calibration
Whether on stage, at a trade fair or at corporate events, the B.SHOW mini FC convinces in every area of application with a very balanced, luminous light without colour shadows, with strong and saturated colours as well as a high white light quality (CCT 2,000-10,000 Kelvin).
3
Quick and easy. The lens change
LENSES
Thanks to the specially developed and patented ROXX® . R.LOK technology, the lenses can be changed easily, quickly and without any tools. This allows the beam angle to be conveniently adjusted, whether from 14°, 23°, 35°, 52° or elliptical 30°x15° and 46°x17.5°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.
R.LOK
Thanks to the specially developed and patented ROXX® R.LOK technology, the lenses can be changed easily, quickly and without any tools. This allows the beam angle to be conveniently adjusted, whether from 19°, 36°, 59° or elliptical 17°x24° and 19°x57°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.
COLOR CODE
A color and letter code on the lens ring guarantees quick identification of the according beam angle when installed. Inside its touring case, the coding makes it easy to find the desired lens quickly.
BUMPER
The rubberised lens ring is used for safely placing the fixture on its front, without leaving scratch marks on neither housing nor floor.
4
Everything under control, App / Wireless
Wireless DMX
ROXX® integrates the latest Wireless DMX technology from Swedish manufacturer Lumenradio and is already using the soon to be available DMX Mesh™ technology, bringing the expertise and benefits of mesh networking to the lighting industry.
The CRMX transceiver module integrated in our fixture realises wireless DMX reception as well as a separate transmission option. A signal can thus be received via radio and transmitted via cable or alternatively be received via cable and transmitted via radio to other fixtures. Full bi-directional communication via RDM is supported in receive mode at the same time.
DMX / RDM
Via two IP65-certified 5-pole XLR sockets, the fixture can be integrated into a wired DMX line and furthermore uses via bi–directional RDM communication.
Stand Alone
Via two IP65-certified 5-pole XLR sockets, the fixture can be integrated into a wired DMX line and furthermore uses via bi–directional RDM communication.
5
Ultra flexible. The accessories
Circular as well as elliptical emitting Micro-Fresnel lenses can be changed easily, quickly and without any tools thanks to the specially developed and protected ROXX® R.LOK technology. A barndoor, honeycomb, softbox and anti-glare shield are available as accessories. The lightweight luminaire quickly proves to be the go-to tool for everyday use, but the smaller sibling of the SHOW mini series can also be used super flexibly for long-term installations thanks to its compact design.
Safety Free Accessory Holder
Two new features make the accessory holder for the Show mini "Safety Free":
1. the optional screw connection of the holder to the spotlight, which means that safety is no longer necessary.
2. the magnetic lock for beam shaping accessories such as Barndoor and Honey Comb.
Safety Free Barndoor
A 360° rotatable 8-bladed barndoor is available for optimal beam control.
Safety Free Honey Comb
A honeycomb filter is available to limit stray light and lateral reflections.
Suspended luminaire
The SHOW mini also helps to create a uniform design language as a pendant luminaire. For this purpose, the handle is removed and the mounting points are simply closed with the caps provided. Stylish, isn’t it?
Full Anti-Glare Shield
The Full Anti-Glade Shield prohibits the direct view of the LED and thus reduces glare and stray light to a minimum.
Tracklight Kit
The new Tracklight Kit offers a quick and easy way to transform your Show mini fixture into a sleek and modern tracklight. The kit contains a new slim yoke with a 3-phase track adapter including a connecting cable for the standard Seatronic plug of the Show Mini. The new yoke can be changed without tools and is thus converted in no time at all. The built-in LumenRadio W-DMX module or direct control via the iOS app, without additional hardware, allows for incredibly smooth and wireless operation. The new accessory kit for the Show Mini fixtures!
Omega Bracket ST
Tool-free and fast mounting via ¼ turn fasteners
6
Electronics & Software
High-resolution dimming
The advanced 16-bit technology enables the highest resolution of dimming behaviour and color mixing. Continuous dimming down to zero without visible jumps or color shifts is guaranteed.
Dimmer curves & Tungsten emulation
Four selectable dimmer curves with adjustable response and redshift function for tungsten emulation are also available.
Flicker-free
Six adjustable PWM frequencies up to 25kHz guarantee a flicker-free camera image even when taking high-speed recordings.
Timer
Via the internal timer function, the stand-alone modes can be conveniently faded in and out after the fixture is switched on, without the need for an external control. Simultaneously, the timer function is available via cable as well as via wireless DMX for master & slave operation.
Full Color Version
Multi color LED source delivers smooth pastel- to punchy saturated colors and linear CCT control.
IP 65
The fixture is fully protected against dust and water jets from any direction.
ROXX® color calibration
Dim to warm
Switchable Dim-To-Warm function to simulate traditional halogen fixtures while dimming down.
Dimming curves
Four high resolution dimming curves and adjustable dimming response to adapt to the respective application.
Master & Slave
Once the fixture is set to “Master” and on first postion of the chain, it controls the following “Slave” units.
Multiple Angles
Multi beam angles due to optional lenses.
Stand Alone
Extensive stand alone modes for brilliant lighting effects even without the need of external controller.
Flicker-free
Six selectable PWM frequencies up to 25kHz guarantees flicker free operation in front of camera, even at high-speed recordings.
Quicklight Function
Quick-light function allows a direct access to dimmer & CCT for easy and fast operation while setting lights.
Wireless Master & Slave
The device features wireless Master & Slave function so that Standalone modes can be easily passed through.
Green Solution
Long life-time of the LED and high energy saving make this product particularly environment-friendly.
Timer
Due the internal timer function the fixtures standalone modes can be easily fade in & out after switching on the device, without the need of external controller.
OLED Display
OLED display with four touch-sensitive buttons, backlight- and auto flip function for easy configuration.
ROXX.APP
Integrated bluetooth interface enables direct controlling with mobile devices via ROXX.APP without the need of extra hardware.
Battery Powered
Integrated bluetooth interface enables direct controlling with mobile devices via ROXX.APP without the need of extra hardware.
RDM enable
Remote Device Management enables bi-directional communication over DMX network, for external programming and monitring functions.
Temperature controlled fan
Temperature controlled fan for optimized and silent operation.
FCC
Besides the product compliance for european market this product is also FCC certified and complies to the requirements of the Federal Communications Commission.
W-DMX
Integrated wireless DMX receiver & transmitter from Lumenradio (CRMX) guarantees safe radio transmission of DMX data. Receive mode is full RDM-enabaled.
16-Bit Technology
16-bit technology for high-resolution color mixing and ultra-smooth dimming behaviour.
Intertek
Besides the product compliance for european market this product is also ETL certified and complies to the safety norms and requirements for North-America.
Technical Data
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 1x 60W RGBL |
| Type of optical system | Reflector + interchangeable lens plate |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles (50%) | 14° (with VN lens) |
| 23° (with N lens) | |
| 35° (with M lens) | |
| 52° (with W lens) | |
| 30° x 15° (with EN lens) | |
| 46° x 17,5° (with EW lens) | |
| Maximum Field angles (10%) | 25° (with VN lens) |
| 43° (with N lens) | |
| 69° (with M lens) | |
| 86° (with W lens) | |
| 58° x 34° (with EN lens) | |
| 73,5° x 40° (with EW lens) | |
| Color temperature range | 2.000-10.000K |
| CRI/Ra | 80 |
| Efficancy (max) | 43,56 lm/W |
| Luminous flux | 2.831 lm |
| illuminance Lux @ 3m (with VN lens) | 2710lx |
| illuminance Lux @ 3m (with N lens) | 1550lx |
| illuminance Lux @ 3m (with M lens) | 550lx |
| illuminance Lux @ 3m (with W lens) | 305lx |
| illuminance Lux @ 3m (with EN lens) | 930lx |
| illuminance Lux @ 3m (with EW lens) | 640lx |
Dimensions & Weight
| IP class | IP65 |
| Body material | Aluminum, Nylon |
| Lens material | Tempered glass front |
| Net dimensions (w x h x d) | 170 x 273 x 230mm |
| Net dimensions inches | 6,69 x 10,75 x 9,06 inches |
| Physical Head Straight Up Height | 310mm (12,20 inches) |
| Net weight (incl. Yoke) | 4,85 kg (10,69lbs) |
| Tilt | 360° |
| Tilt Locking System | Locking system with angle indicator |
Electrical Data
| AC Power, max | 90 – 285V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Max Inrush Current | 1,102A |
| Max power consumption | 110W |
| Standby power | 5,5W |
| Max Power thru @ 100 V | 11A |
| Max power thru @ 230 V | 11A |
| Power Factor | 0.853 PF (230V) / 0.988 PF (120V) |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
| Power Linking | 12 units @ 120 V; 22 units @ 230 V |
| Battery | 217Wh / Lithium-Ionen including BMS |
| Lifetime | 70% after 300 cycles |
| Battery Run Time | up to 24 hours |
| Charging Time (nominal) | 5h |
Operator & Controller
| DMX Functions | Dimmer, Dimmer Fine, Shutter, Duration, Hue, Saturation, Red, Red Fine, Green, Green Fine, Blue, Blue Fine, Lime, Lime Fine, CCT, Tint, Color Macro, Color Macro Crossfade, Device Settings |
| DMX channels | 3CH CCT, 3CH RGB, 6CH RGB, 9CH RGB, 11CH RGB, 14CH RGB, 4CH DIRECT, 8CH DIRECT, 11CH DIRECT, 16CH DIRECT, 3CH HSI, 10CH HSI |
| DMX modes | 12 |
| Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S |
| USITT DMX512A | |
| RDM ANSI E1.20 | |
| Bluetooth Low Energy (BLE) | |
| Setting and addressing | OLED graphical display / 4 controls |
| RDM ANSI E1.20 | |
| Standalone mode | Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer |
| Wireless DMX | Lumenradio with RDM (CRMX) |
| Indicator | OLED graphical display |
| Controls | 4 touch sensitive, backlighted controls |
| Strobe | 0-20Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power In | TRUE1 compatible input & link-thru sockets |
Installation
| Mounting point on fixture | 1 x two quarter-turn locking points for optional Omega Bracket, centric hole 13mm (1/2″), 2x extra holes for TV Spigot |
| Orientation | Any |
| Rigging possibilities | Hanging or ceiling / pendant mount (Pendant blind caps included) |
| Safety features | rear mount for safety wire |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | convection cooling |
| Humidity (max.) | 95% |
| Temperature range, Operating on Battery | -20°C to 40°C |
| Temperature range, Start-Up on Battery | -20°C to 40°C |
| Temperature range, Operating on AC Power Supply | 0°C to 40°C |
| Temperature range, Start-Up on AC Power Supply | 0°C to 40°C |
| Temperature range, Storage | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
Included / Optional
| Included items | 2x radiator caps for pendant installation |
| 2m power cord | |
| Optional Accessories | Multiple Lens Plates (circular & elliptical), Safety-Free Accessory Adapter, 8-Way Barndoor, Honey Comb, Full Anti-Glare Shield, Gel-Frame, Omega Bracket with quater-turn fasteners, Touring Cases |
| Color options | Black – RAL 9004 (Standard) |
| White – RAL 9010 (on request) | |
| Custom color – any RAL (on request) |
Compliance
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
Order Number
| Show Mini | Code |
| B.Show mini FC | 11401101 |
| B.Show mini TW+ | 11401001 |
| E.Show mini FC | 11201101 |
| E.Show mini TW+ | 11201001 |
| Accessories | Code |
| Safety Free Accessory Holder | 11909401 |
| Safety Free 8-way Barndoor | 11909501 |
| Full Anti Glare Shield | 11909801 |
| Honey Comb | 11909601 |
| Very Narrow Lens | 11409701 |
| Narrow Lens | 11408901 |
| Medium Lens | 11409001 |
| Wide Lens | 11409101 |
| Elliptical Narrow Lens | 11409201 |
| Elliptical Wide Lens | 11409301 |
