E.SHOW D

5.600K daylight LED – Powerful daylight

200W
13.500lm luminous flux
CRI / TLCI 98
IP65 In/Outdoor

1

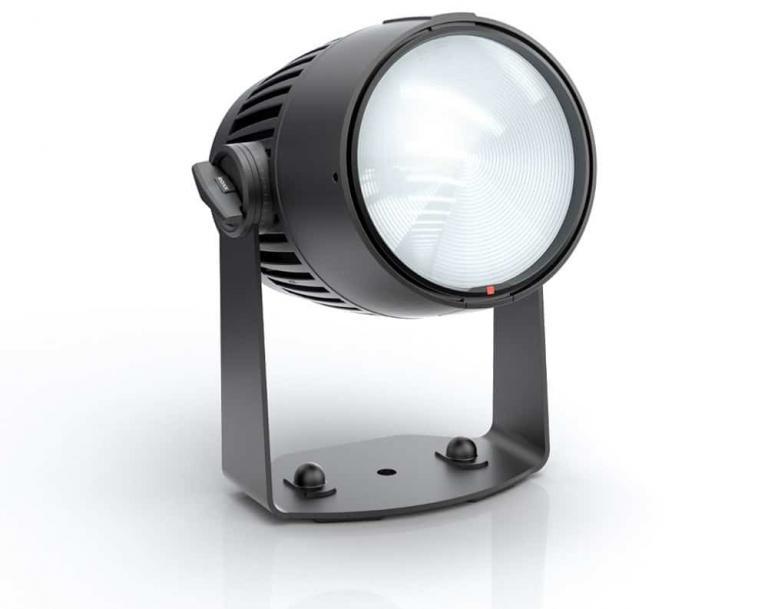

The Fixture

Daylight Version

ROXX^® E.SHOW D is a compact IP65 certified spotlight with added brightness and white light quality. The spotlight impresses with its homogeneous light. Its central 200W daylight LED with 5.600 Kelvin color temperature and a service life of 50.000 hours produces an enormous 13.500lm luminous flux.

Perfect White

Colors and skin tones are reproduced naturally and unaltered due to the extremely high color rendering of CRI/Ra 98 and TLCI 98, making the E.SHOW D the perfect tool for trade fairs, theatre, broadcast and film.

2

Quick and easy. The lens change

Lenses / R.LOK

Thanks to the specially developed and patented ROXX^® R.LOK technology, the lenses can be changed easily, quickly and without any tools. This allows the beam angle to be conveniently adjusted, whether from 20°, 35°, 55° or elliptical 21°x27° and 22°x57°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.

Color Code

A color and letter code on the lens ring guarantees quick identification of the according beam angle when installed. Inside its touring case, the coding makes it easy to find the desired lens quickly.

Bumper

The rubberised lens ring is used for safely placing the fixture on its front, without leaving scratch marks on neither housing nor floor.

Bumper

The rubberised lens ring is used for safely placing the fixture on its front, without leaving scratch marks on neither housing nor floor.

Lenses / R.LOK

Thanks to the specially developed and patented ROXX® R.LOK technology, the lenses can be changed easily, quickly and without any tools. This allows the beam angle to be conveniently adjusted, whether from 24°, 36°, 54° or elliptical 21°x27° and 22°x57°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.

Color Code

3

Everything under control, App / Wireless

Smart control via ROXX.APP

The integrated Bluetooth interface enables direct control of the spotlights via Apple tablet or phone with the ROXX.APP, without the need for additional hardware.

More about ROXX.APP

Wireless DMX

ROXX^® integrates the latest Wireless DMX technology from Swedish manufacturer Lumenradio and is already using the soon to be available DMX Mesh™ technology, bringing the expertise and benefits of mesh networking to the lighting industry.

The CRMX transceiver module integrated in our fixture realises wireless DMX reception as well as a separate transmission option. A signal can thus be received via radio and transmitted via cable or alternatively be received via cable and transmitted via radio to other fixtures. Full bi-directional communication via RDM is supported in receive mode at the same time.

DMX / RDM

Via two IP65-certified 5-pole XLR sockets, the fixture can be integrated into a wired DMX line and furthermore uses via bi–directional RDM communication.

4

Ultra flexible. The accessories

PO YOKE

The additionally available PO Yoke empowers you to effortlessly bar-operated pan and tilt your luminaire, granting you full control over your lighting setup. The PO Yoke serves as the ultimate solution for mounting onto tripods or clamps, offering unparalleled flexibility in your designs. Crafted with attention to detail, the PO Yoke features a 28mm Junior Pin/TV-Spigot, providing a universal connection point for seamless integration with a variety of equipment.

Accessory Holder

The elegant design of the E.SHOW makes it the perfect luminaire even when a stylish appearance is a must. That is why we have placed great emphasis on inconspicuous technical details - the accessory holder is only placed on the luminaire when needed and otherwise is concealed in the case.

Barndoor

A 360° rotatable 8-bladed barndoor is available for optimal beam control.

Honey Comb

A honeycomb filter is available to limit stray light and lateral reflections.

DoPchoice Snapbag®

For an absolutely even illumination of motifs in camera applications, ROXX^® E.SHOW allows a direct connection of a foldable softbox from the established manufacturer DoPchoice, which was specially developed for the fixture.

Suspended luminaire

The E.SHOW also helps to create a uniform design language as a pendant luminaire. For this purpose, the handle is removed and the mounting points are simply closed with the caps provided. Stylish, isn’t it?

Full Anti-Glare Shield

The Full Anti-Glade Shield prohibits the direct view of the LED and thus reduces glare and stray light to a minimum.

5

Electronics & Software

High-resolution dimming

The advanced 16-bit technology enables the highest resolution of dimming behaviour. Continuous dimming down to zero without visible jumps is guaranteed.

Dimmer curves

Four selectable dimmer curves with adjustable response are also available.

Flicker-free

Six adjustable PWM frequencies up to 25kHz guarantee a flicker-free camera image even when taking high-speed recordings.

Timer

Via the internal timer function, the stand-alone mode can be conveniently faded in and out after the fixture is switched on, without the need for an external control. Simultaneously, the timer function is available via cable as well as via wireless DMX for master & slave operation.

6

Always well shielded

An IP65 rating is just what you need to protect your product from ingress of dust and rain. Our products are extensively tested to meet these standards and make our fixtures multifunctional, safe and durable in any situation.

7

User-friendly down to the last detail

The OLED display ensures quick configuration of the headlamps. The backlit and touch sensitive buttons allow safe navigation even in dark surroundings. A convenient overhead installation of the spotlight can be realised through the automatic display flip function.

Daylight Version

Daylight with a fixed color temperature of 5,600 Kelvin.

IP 65

The fixture is fully protected against dust and water jets from any direction.

Green Solution

Long life-time of the LED and high energy saving make this product particularly environment-friendly.

Dimming Curves

Four high resolution dimming curves and adjustable dimming response to adapt to the respective application.

Master & Slave

Once the fixture is set to “Master” and on first postion of the chain, it controls the following “Slave” units.

Multiple Angle

Multi beam angles due to optional lenses.

Flicker-free

Six selectable PWM frequencies up to 25kHz guarantees flicker free operation in front of camera, even at high-speed recordings.

Quicklight Function

Quick-light function allows a direct access to dimmer & CCT for easy and fast operation while setting lights.

Wireless Master & Slave

The device features wireless Master & Slave function so that Standalone modes can be easily passed through.

Timer

Due the internal timer function the fixtures standalone modes can be easily fade in & out after switching on the device, without the need of external controller.

OLED Display

OLED display with four touch-sensitive buttons, backlight- and auto flip function for easy configuration.

ROXX.APP

Integrated bluetooth interface enables direct controlling with mobile devices via ROXX.APP without the need of extra hardware

RDM enable

Remote Device Management enables bi-directional communication over DMX network, for external programming and monitring functions.

Temperature controlled fan

Temperature controlled fan for optimized and silent operation.

FCC

Besides the product compliance for european market this product is also FCC certified and complies to the requirements of the Federal Communications Commission.

W-DMX

Integrated wireless DMX receiver & transmitter from Lumenradio (CRMX) guarantees safe radio transmission of DMX data. Receive mode is full RDM-enabaled.

16-Bit Technology

16-bit technology for high-resolution color mixing and ultra-smooth dimming behaviour.

Intertek

Besides the product compliance for european market this product is also ETL certified and complies to the safety norms and requirements for North-America.

Technical Data

Photometrics

LED expected lifetime	50.000 hours
Lightsource	1x200W Daylight
Type of optical system	reflector + interchangable lens plates
LED PWM Frequency	selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz
Beam angles (50%)
	24° (with narrow lens)
	36° (with medium lens)
	54° (with wide lens)
	21°x27° (with elliptical narrow lens)
	22°x57° (with elliptical wide lens)
Maximum Field angles (10%)
	38° (with narrow fresnel lens)
	69° (with medium fresnel lens)
	85° (with wide compound-eye lens)
	41°x51° (with elliptical-narrow lens)
	48°x82° (with elliptical-wide lens)
Color temperature range	fixed 5.600K
CRI / Ra	98
TLCI	98
TM-30-15	Rf 94 / Rg 103
Efficancy	61,55 lm/W
Luminous flux	13.222 lm
illuminance Lux @ 5m (narrow lens)	1.989 lx
illuminance Lux @ 5m (medium lens)	743 lx
illuminance Lux @ 5m (wide lens)	430 lx
illuminance Lux @ 5m (elliptical-narrow lens)	1.340 lx
illuminance Lux @ 5m (elliptical-wide lens)	641 lx

Dimensions & Weight

IP class	IP65
Body material	Aluminium die-cast
Lens material	Tempered glass front
Net dimensions (w x h x d)	261 x 311 x 258 mm
Net dimensions inches	10,3 x 12,2 x 10,1 inches
Physical Head Straigt Up Height	339 mm
Net weight	5,7 kg (12,6 lbs)
Tilt	360°
Tilt Locking System	Locking system with angle indicator

Electrical Data

AC power, max.	90 – 285V 50/60Hz
AC Power, nominal	100 – 260V 50/60Hz
Electrical Protection	Overload protection with automatic recover
Max Inrush Current	50A
Max power consumption	220W
Typical power consumption	160W
Standby power	6,7W
Max power thru @ 100 V	8A
Max power thru @ 230 V	8A
Power factor	0,92 PF (230 V) / 0,99 PF (100V)
Power Supply Unit	Inbuilt auto-ranging electronic switch-mode
Power Linking	4 units @ 120 V; 8 units @ 230 V

Operator & Controller

DMX Functions	Dimmer, Dimmer Fine, Shutter, Duration, Device Settings
DMX channels	1CH, 2CH, 3CH, 4CH
DMX modes	4
Protocol	CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
	USITT DMX512A
	RDM ANSI E1.20
	Bluetooth (Low Energy)
Setting and addressing	OLED graphical display / 4 controls
	RDM ANSI E1.20
Standalone mode	Quick Color, Timer
Wireless DMX	Lumenradio with RDM (CRMX)
indicator	OLED graphical display
controls	4 touch sensitive, backlighted controls
Strobe	0-20Hz
DMX I/O	IP65 XLR 5-pin male/female
Power I/O	TRUE1 compatible input & link-thru sockets

Installation

Mounting point	1 x two quarter-turn locking points for optional Omega Bracket, centric M12 hole
Orientation	Any
Rigging possibilities	Hanging or ceiling / pendant mount (Pendant blind caps included)
Safety features	rear mount for safety wire
Minimum distance from flammable materials	0,3 meters (11,8 inch)

Thermal Characteristics

Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	95%
Temperature range, Operating	-20°C to 45°C
Temperature range, Start-up	-20°C to 50°C
Temperature range, Storage	-20°C to 80°C
Thermal Protection	Automatic overtemperature protection

Included / Optional

Included items	2x radiator caps for pendant installation
	2 m power cable
Optional Accessories	Multiple Lens Plates (circular & elliptical), Snapbag™, Snapgrid™ 30°, 40°, 50°, Accessory Adapter, 8-Way Barndoor, Honey Comb, Full Anti-Glare Shield, Gel-Frame, Omega Bracket with quater-turn fasteners, Touring Cases, PO YOKE
Color options	Black – RAL 9004 (Standard)
	White – RAL 9010
	Custom color – any RAL

Compliance

CE – 2014/30/EU: EMC Directive

EN 55103-2

EN 55015

EN 61547

EN 61000-3-2

EN 61000-3-3

EN 55032

CE – 2014/35/EU: Low Voltage Directive

EN 60598-1

EN 60598-2-17

EN 62471

EN 60529

RoHS2 Directive

2011/65/EU

ETL C/US

FCC

UKCA

Order Number

E.SHOW	Code
E.SHOW D Black	11202301
E.SHOW D White	11202302
E.SHOW D Custom	11202303
E.SHOW FC Black	11202101
E.SHOW FC White	11202102
E.SHOW FC Custom	11202103
E.SHOW T Black	11202201
E.SHOW T White	11202202
E.SHOW T Custom	11202203
E.SHOW TW+ Black	11202o01
E.SHOW TW+ White	11202002
E.SHOW TW+ Custom	11202003

E.SHOW	Code
E.SHOW TW+ PO YOKE	11202023
E.SHOW FC PO YOKE	11202123
E.SHOW T PO YOKE	11202223
E.SHOW D PO YOKE	11202323

Accessories	Code
E.SHOW Lens Narrow (black)	11207001
E.SHOW Lens Medium (black)	11207101
E.SHOW Lens Wide (black)	11207201
E.SHOW Lens Elliptical Narrow (black)	11207301
E.SHOW Lens Elliptical Wide (black)	11208201
E.SHOW Accessory Holder (black)	11907401
E.SHOW PO YOKE (black)	11906801
E.SHOW Barndoor (black)	11907501
E.SHOW Honey Comb (black)	11907601
SHOW Gel Frame (black)	11907701
E.SHOW Omega Bracket ST (black)	90900002
SHOW Full Anti-Glare Shield (black)	11308401
SHOW Full Anti-Glare Shield (custom)	11308403
SHOW Snapgrid 40° DoPchoice (black)	11208501
SHOW Snapbag by DoPchoice (black)	11908301
E.SHOW Case 4 (black)	11907801
E.SHOW Case 6 (black)	11907901
E.SHOW Case 8 (black)	11908001
