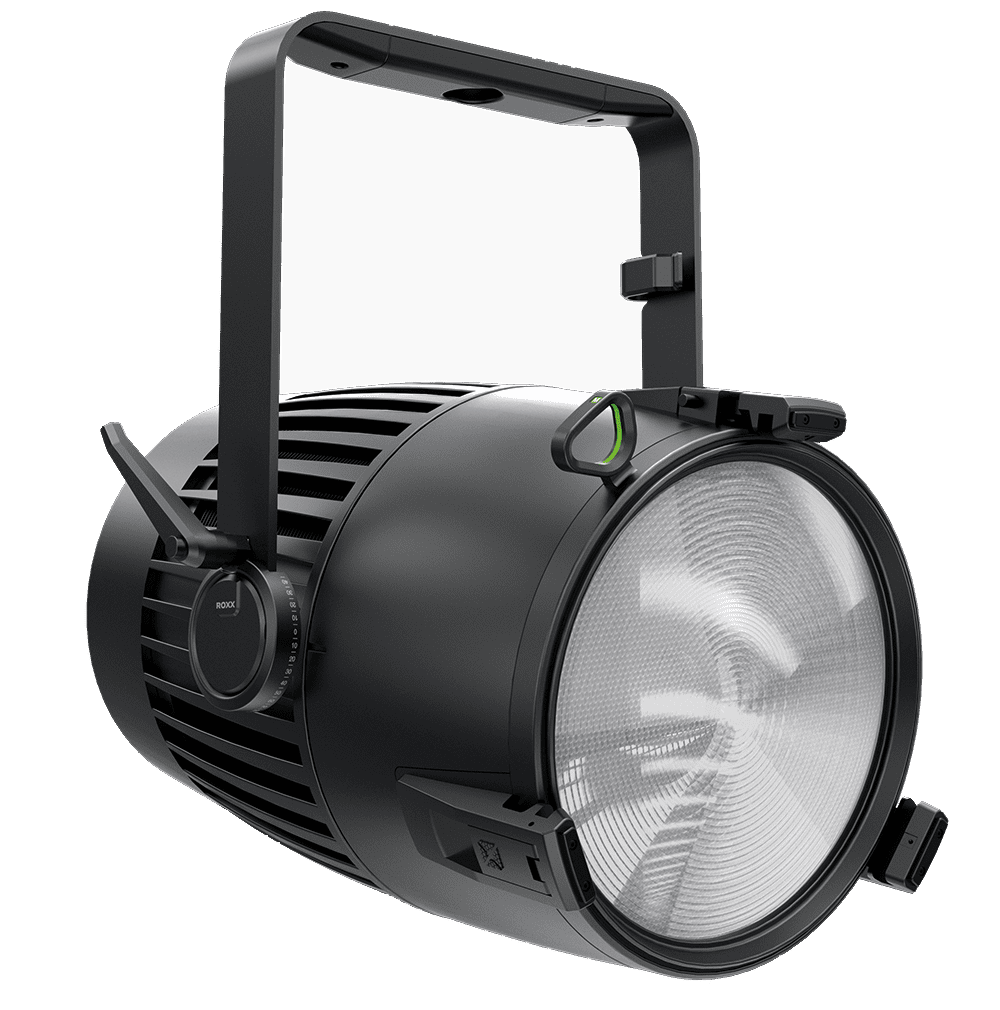

E.SHOW maxx TW+

The new E.SHOW maxx TW+ expands the SHOW series with a 800W luminaire with perfect whites and brilliant colors. The new IP65-certified spotlight with its specially developed 6-colour LED chip has an enormous output of up to 10,000lx at a beam angle of 14° / 5m. For big shows, large exhibitions and studio applications, where up to now costly and maintenance-intensive discharge lamps were used.

In addition, there is a novel “one-hand lens change system” and there is the option for powerless presets of dimmer, CCT and colours, which saves enormous time during set-up and setup. This is complemented by an optimised rigging bracket, an integrated CRMX transmit and receive function and, of course, the new spotlight also works directly with the ROXX.APP.

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Always unlock YouTube

800W RGBALC | SINGLE SOURCE LED | PERFECT WHITES & BRILLIANT COLORS | INTEGRATED ACCESSORY HOLDER | ONE-HAND LENS SYSTEM | CURRENTLESS PRESETTINGS | OPTIMIZED RIGGING YOKE | IP65 (IN- /OUTDOOR) | CRI/Ra 97 / TLCI 98 | INTEGRATED CRMX TRANSMIT & RECEIVE FUNCTION | ROXX.APP READY

1

The Fixture

TW+ Version

Whether stage, trade fair, corporate, theatre, broadcast or film, the E.SHOW maxx TW+ convinces in every sort of application with excellent whites and a wide color range. The central, bundled 6 color LED, which was specially developed for this application, produces a very balanced and luminous light without color shadows.

Perfect Tunable White

With colors red, green, blue, amber, lime and cyan the ROXX^® 6 color LED engine produces a massive light luminosity with very high color rendering for up to 97 CRI/Ra and 98 TLCI. This excellent reproduction quality is available across the entire white spectrum of 2.000-10.000 Kelvin, ensuring perfectly natural colors. The color temperature can be easily adjusted via +/- green function and magentashift.

Color Range

The additional use of amber, lime and cyan extends the color spectrum by 15%, thus significantly increasing the color variety of the ROXX® E.SHOW maxx TW+.

ROXX Color Calibration

ROXX^® Color Calibration ensures excellent white tones (CCT 2.000-10.000K), precisely on the black body curve. It also performs color matching over the entire range, ensuring uniform colors across all ROXX^® fixtures. The special ROXX^® algorithm enables a user-friendly control of the 6 color LED via only three channels, both in RGB or HSI mode.

TW+ Version

Whether stage, trade fair, corporate, theatre, broadcast or film, the E.SHOW maxx TW+ convinces in every sort of application with excellent whites and a wide color range. The central, bundled 6 color LED, which was specially developed for this application, produces a very balanced and luminous light without color shadows.

Perfect Tunable White

With colors red, green, blue, amber, lime and cyan the ROXX^® 6 color LED engine produces a massive light luminosity with very high color rendering for up to 97 CRI/Ra and 98 TLCI. This excellent reproduction quality is available across the entire white spectrum of 1.800-10.000 Kelvin, ensuring perfectly natural colors. The color temperature can be easily adjusted via +/- green function and magentashift.

Extended Color Range

The additional use of amber, lime and cyan extends the color spectrum by 15%, thus significantly increasing the color variety of the ROXX^® E.SHOW maxx TW+.

ROXX Color Calibration

ROXX^® Color Calibration ensures excellent white tones (CCT 1.800-10.000K), precisely on the black body curve. It also performs color matching over the entire range, ensuring uniform colors across all ROXX^® fixtures.

The special ROXX^® algorithm enables a user-friendly control of the 6 color LED via only three channels, both in RGB or HSI mode.

2

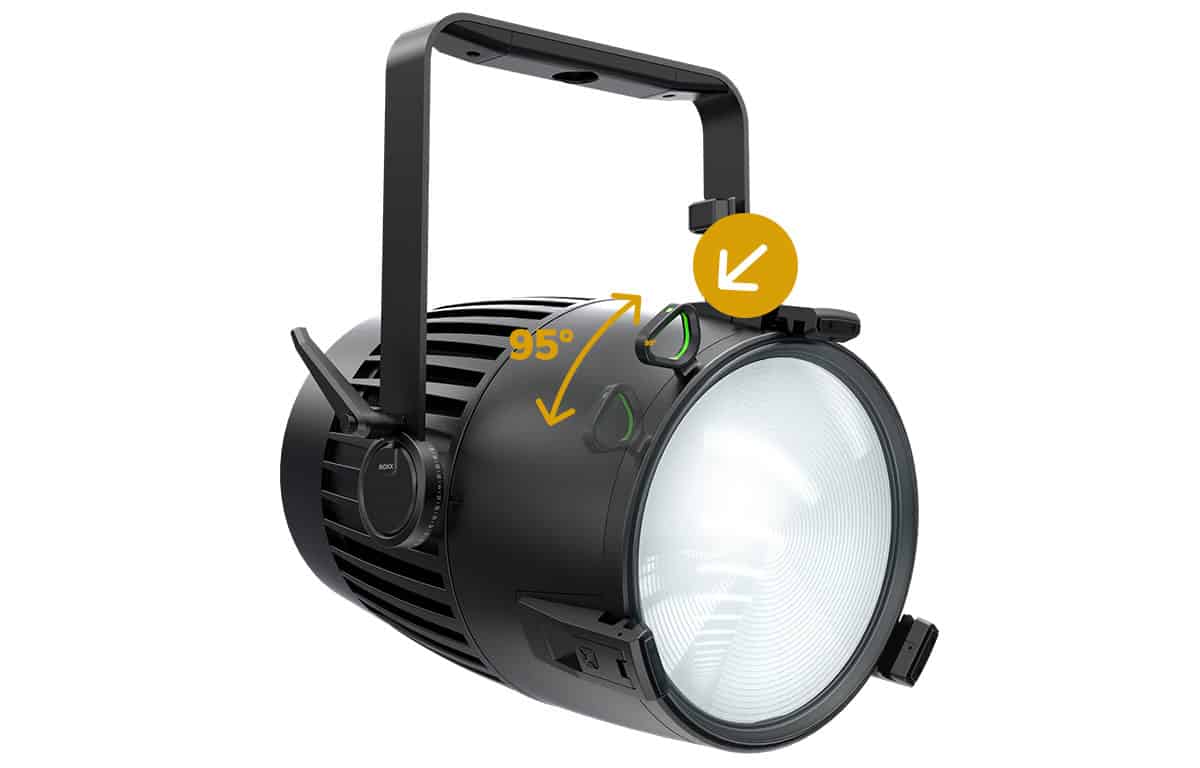

One-Hand Lens System

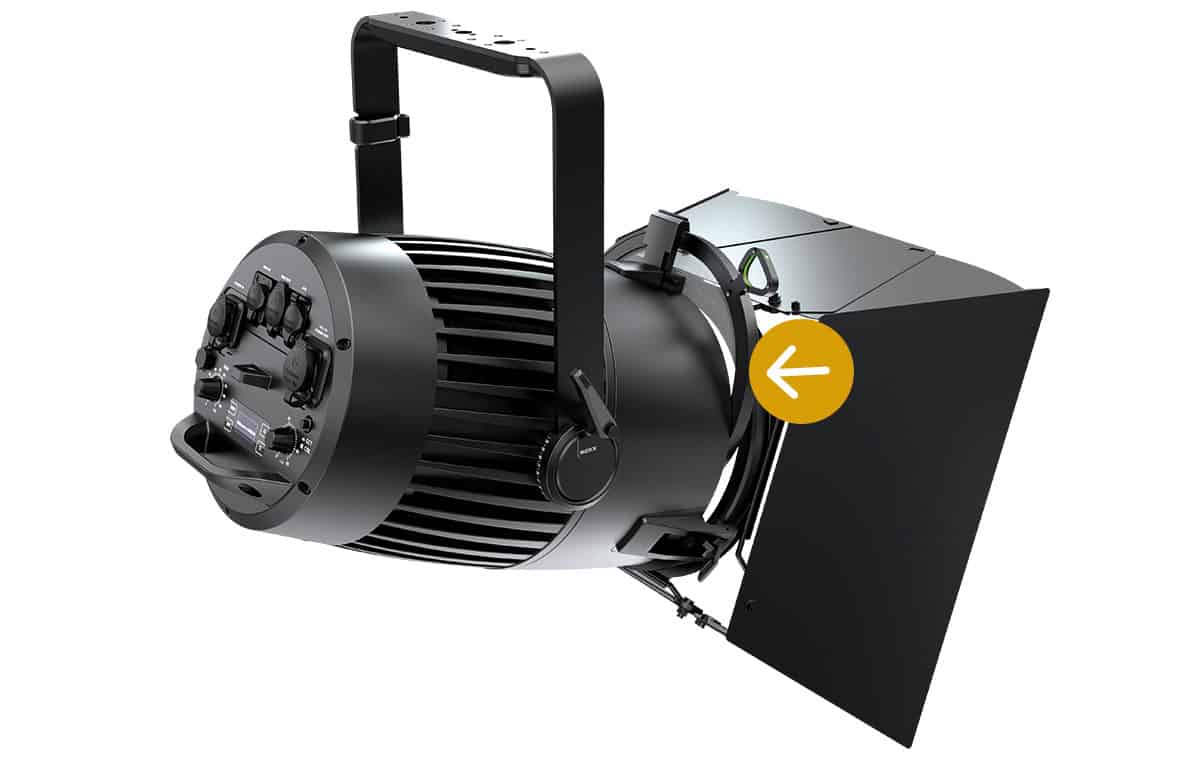

1 | Convenient and quick lens exchange with mounted barndoor

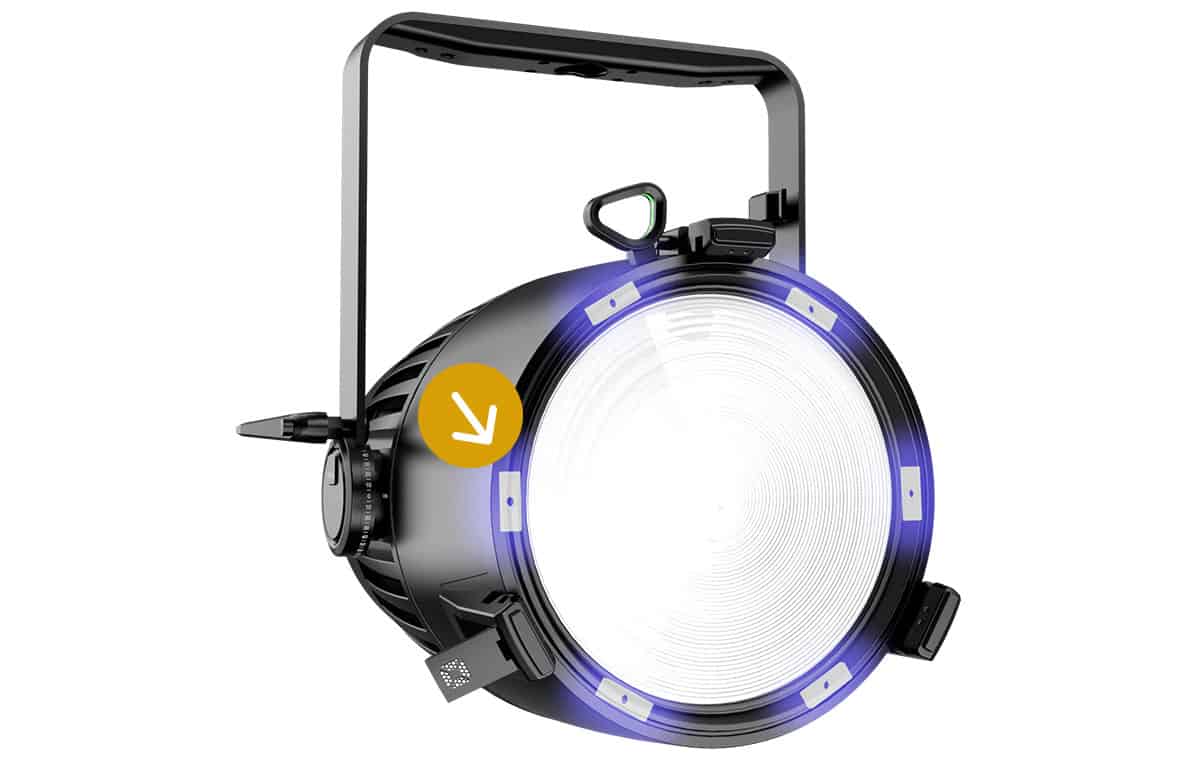

2 | Safety free lens system due integrated magnets (second safety)

3 | Easy alignment of elliptical lenses

4 | Color coated lens handle

3

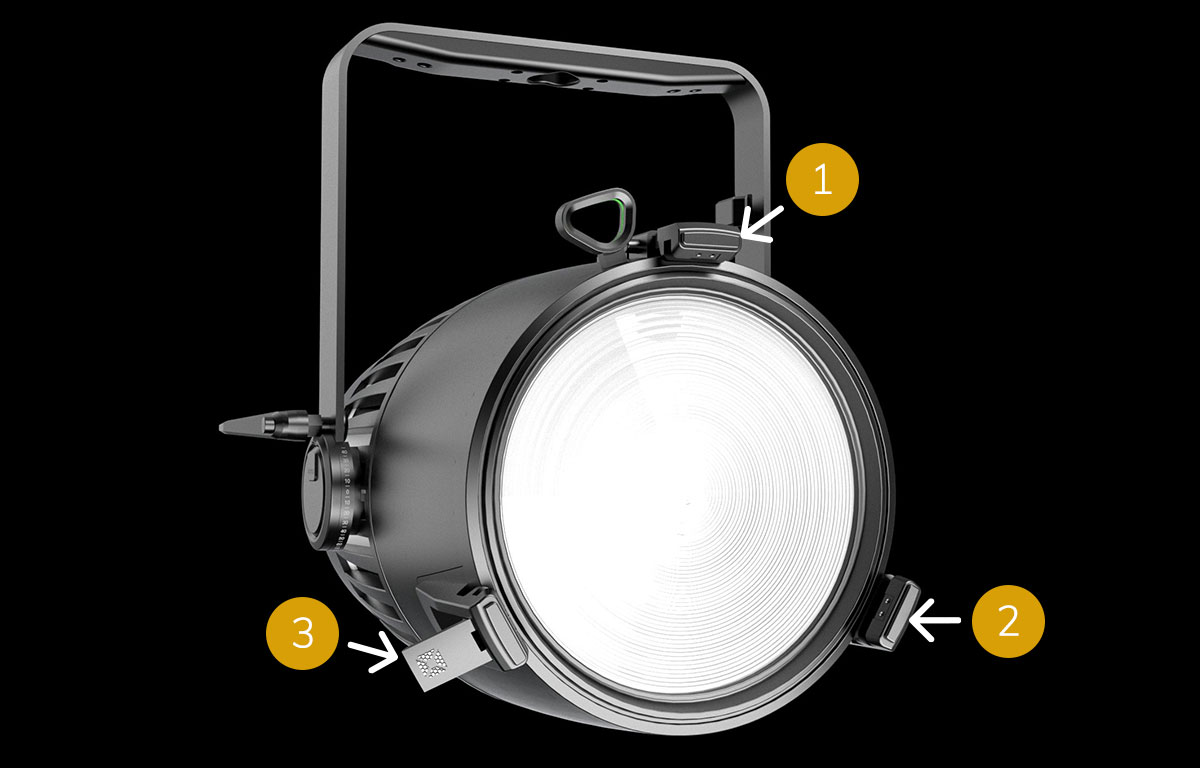

Integrated Accessory Holder

1 | Integrated accessory holder including

- Front bumpers
- Pressure springs

2 | Additional Safety

3 | Magnetic second safety for beam-shaping accessories

4 | Solid steel locker

4

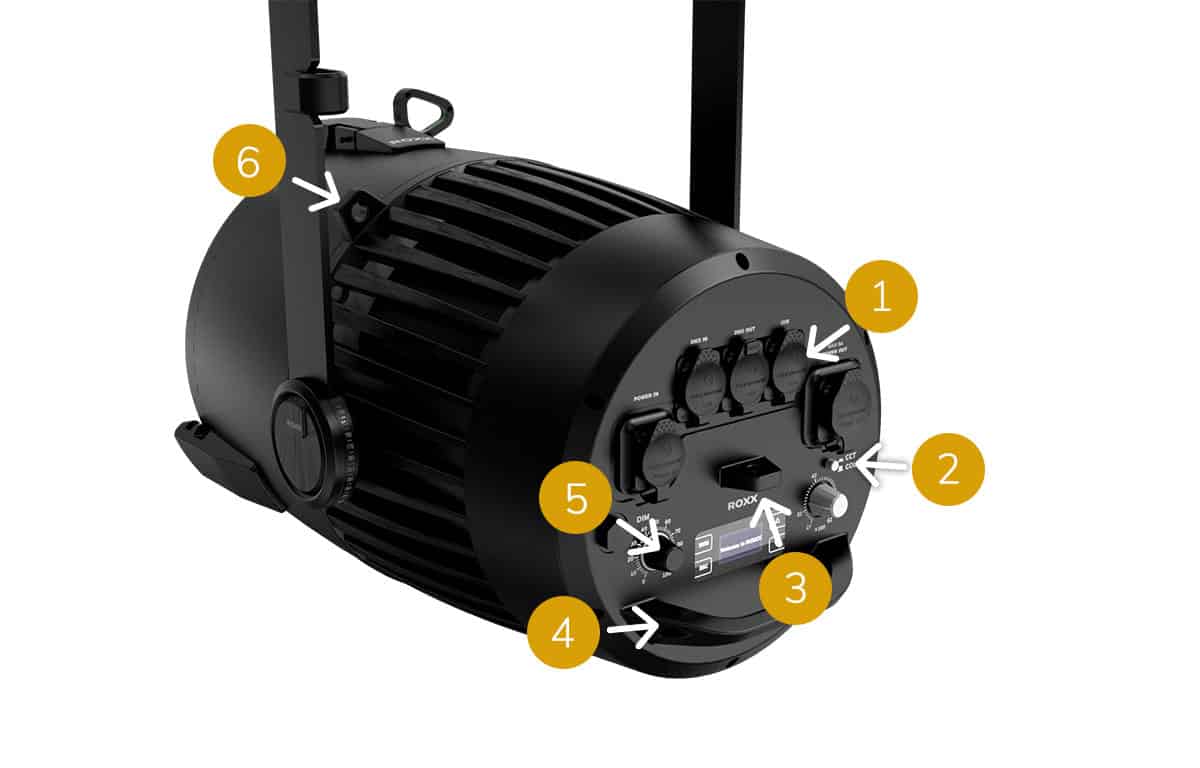

Currentless presettings

1 | Firmware / USB

2 | Pre-adjustable CCT and pallet

3 | Safety eye (pendant)

4 | Handle

5 | Pre-adjustable dimmer

6 | Fixture´s safety eye

ROXX_E.SHOW-MAXX_currentless-presettings

5

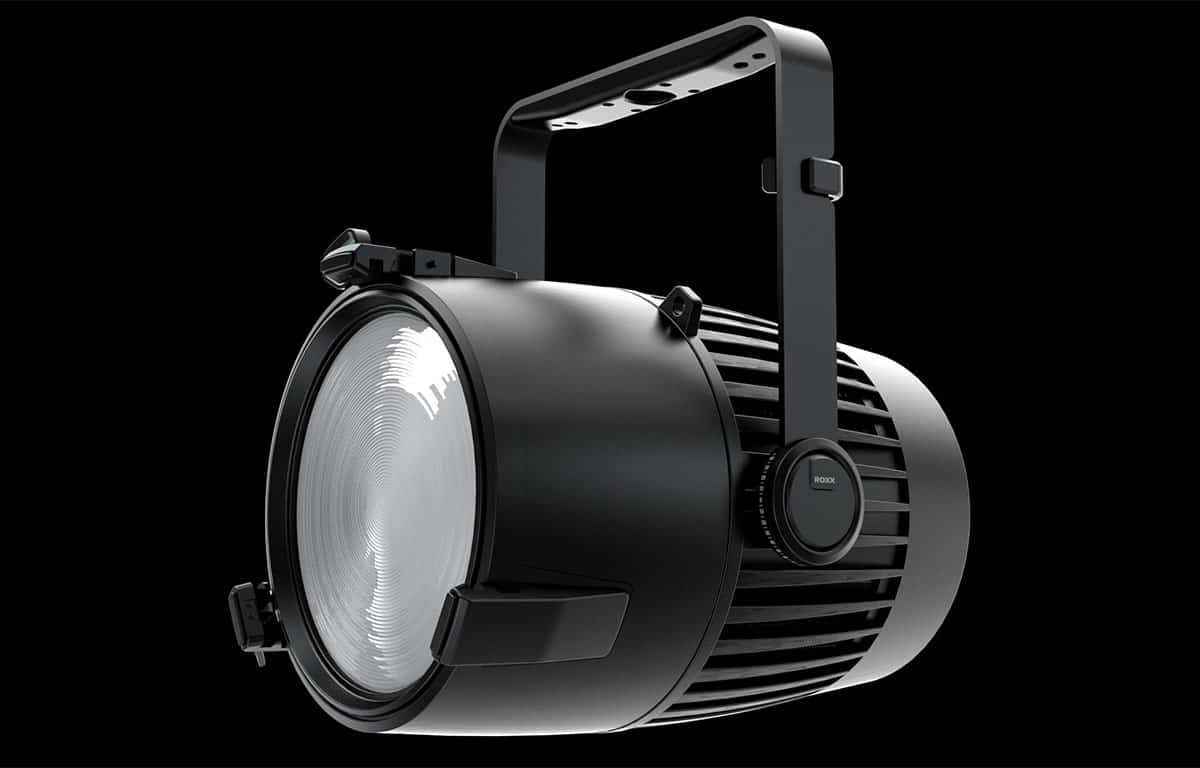

Optimized Rigging Yoke

1 | Integrated handle

2 | Cable guide

3 | One-sided tilt knob

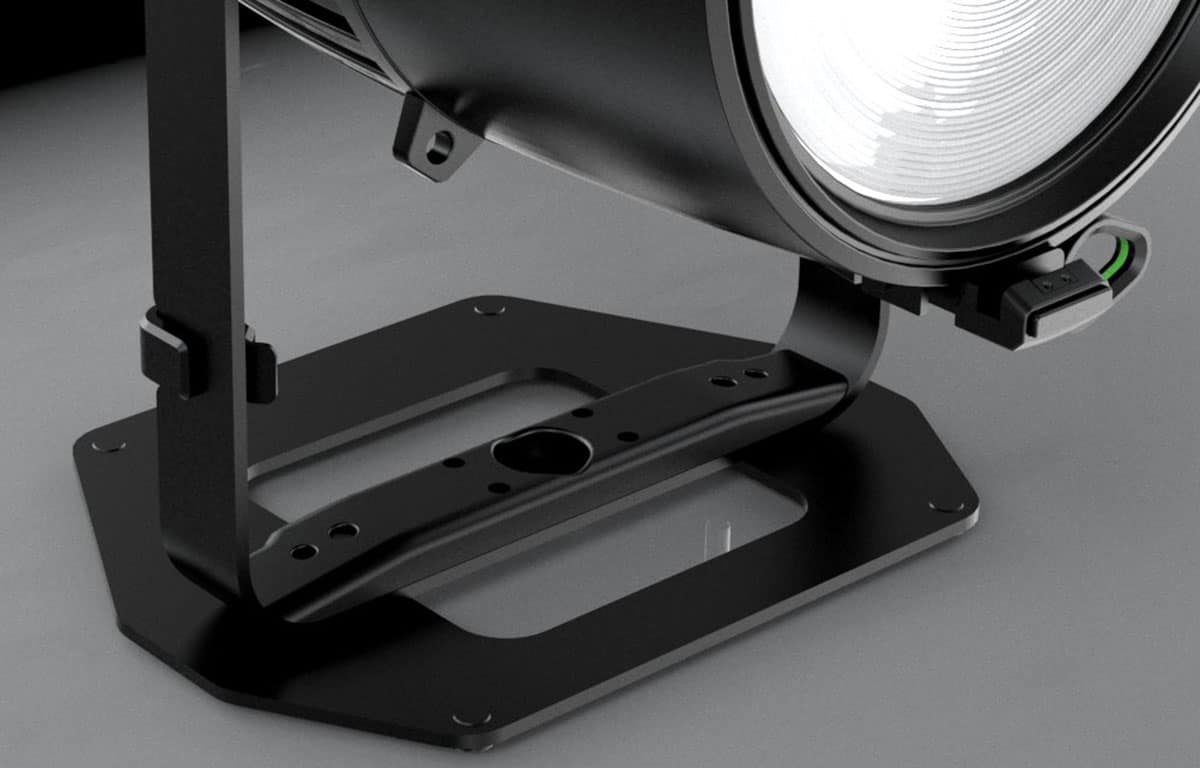

4 | Floor extension (optional)

5 | Integrated camlocks

6 | TV spigot holes

7 | Tilt scale

6

Cooling Concept

800 W LED board

Copper base plate with 12 heatpipes

Black coated cooling discs
120mm fan

7

Everything under control, App / Wireless

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Always unlock YouTube

Wireless DMX

ROXX^® integrates the latest Wireless DMX technology from Swedish manufacturer Lumenradio and is already using the soon to be available DMX Mesh™ technology, bringing the expertise and benefits of mesh networking to the lighting industry.

The CRMX transceiver module integrated in our fixture realises wireless DMX reception as well as a separate transmission option. A signal can thus be received via radio and transmitted via cable or alternatively be received via cable and transmitted via radio to other fixtures. Full bi-directional communication via RDM is supported in receive mode at the same time.

DMX / RDM

Via two IP65-certified 5-pole XLR sockets, the fixture can be integrated into a wired DMX line and furthermore uses via bi–directional RDM communication.

Stand Alone

Via two IP65-certified 5-pole XLR sockets, the fixture can be integrated into a wired DMX line and furthermore uses via bi–directional RDM communication.

Smart control via ROXX.APP

The integrated Bluetooth interface enables direct control of the spotlights via Apple tablet or phone with ROXX.APP, without the need for additional hardware.

8

Ultra flexible. The accessories

8-way Barndoor

A 360° rotatable 8-bladed barndoor is available for optimal beam control.

Honey Comb

A honeycomb filter is available to limit stray light and lateral reflections.

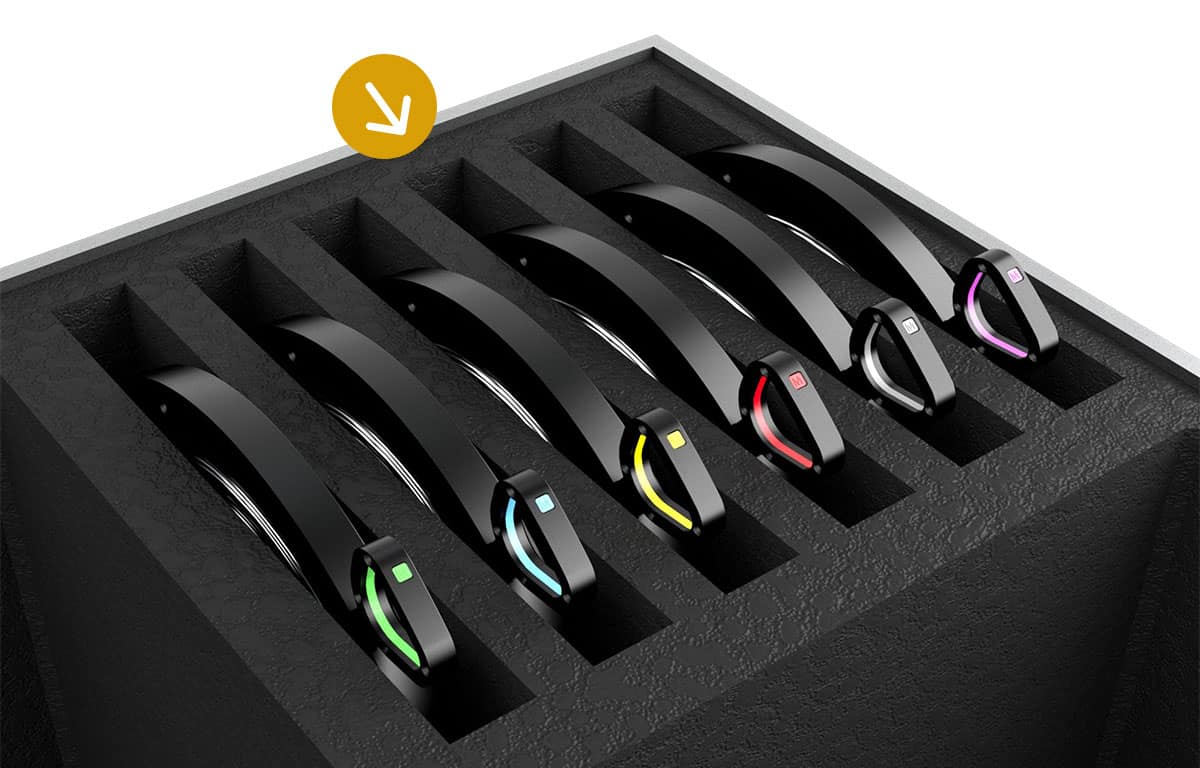

Circular & elliptical lenses

The circular and elliptical lenses can be convenient and quick exchanged with mounted barndoor. The elliptical lenses are easy to aligne. Quick installation with color coated lens handle.

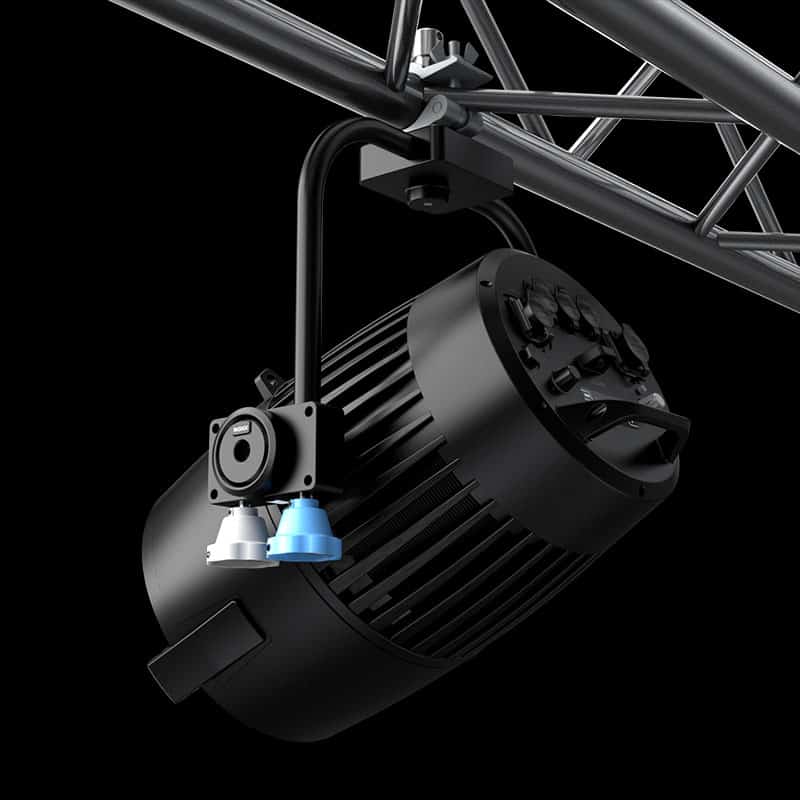

PO yoke

Including 28mm junior pin.

Floor extension

With the floor extension the E.SHOW maxx TW+ can als be used as floor application.

9

Electronics & Software

High-resolution dimming

The advanced 16-bit technology enables the highest resolution of dimming behaviour and color mixing. Continuous dimming down to zero without visible jumps or color shifts is guaranteed.

Dimmer curves & Tungsten emulation

Four selectable dimmer curves with adjustable response and redshift function for tungsten emulation are also available.

Flicker-free

Six adjustable PWM frequencies up to 25kHz guarantee a flicker-free camera image even when taking high-speed recordings.

Stand Alone

Elaborate stand-alone modes, including cinema effects, various auto programs, customisable scenes, CCT, LEE adjusted color macros and custom color templates (RGBALC) enable great lighting effects without using external lighting controls.

Timer

Via the internal timer function, the stand-alone modes can be conveniently faded in and out after the fixture is switched on, without the need for an external control. Simultaneously, the timer function is available via cable as well as via wireless DMX for master & slave operation.

TW+ Version

Variable CCT plus saturated- to smooth pastel colors.

IP 65

The fixture is fully protected against dust and water jets from any direction.

ROXX® color calibration

ROXX^® color calibration guarantees vivid and uniform colors plus excellent whites precisley on the black body curve.

Dim to warm

Switchable Dim-To-Warm function to simulate traditional halogen fixtures while dimming down.

Dimming curves

Four high resolution dimming curves and adjustable dimming response to adapt to the respective application.

Master & Slave

Once the fixture is set to “Master” and on first postion of the chain, it controls the following “Slave” units.

Multiple Angles

Multi beam angles due to optional lenses.

Stand Alone

Extensive stand alone modes for brilliant lighting effects even without the need of external controller.

Flicker-free

Six selectable PWM frequencies up to 25kHz guarantees flicker free operation in front of camera, even at high-speed recordings.

Quicklight Function

Quick-light function allows a direct access to dimmer & CCT for easy and fast operation while setting lights.

Wireless Master & Slave

The device features wireless Master & Slave function so that Standalone modes can be easily passed through.

Green Solution

Long life-time of the LED and high energy saving make this product particularly environment-friendly.

Timer

Due the internal timer function the fixtures standalone modes can be easily fade in & out after switching on the device, without the need of external controller.

OLED Display

OLED display with four touch-sensitive buttons, backlight- and auto flip function for easy configuration.

ROXX.APP

Integrated bluetooth interface enables direct controlling with mobile devices via ROXX.APP without the need of extra hardware.

RDM enable

Remote Device Management enables bi-directional communication over DMX network, for external programming and monitring functions.

Temperature controlled fan

Temperature controlled fan for optimized and silent operation.

FCC

Besides the product compliance for european market this product is also FCC certified and complies to the requirements of the Federal Communications Commission.

W-DMX

Integrated wireless DMX receiver & transmitter from Lumenradio (CRMX) guarantees safe radio transmission of DMX data. Receive mode is full RDM-enabaled.

16-Bit Technology

16-bit technology for high-resolution color mixing and ultra-smooth dimming behaviour.

Intertek

Besides the product compliance for european market this product is also ETL certified and complies to the safety norms and requirements for North-America.

Technical Data

Photometrics

LED expected lifetime	50.000 hours
Lightsource	1×800 W RGBALC
Type of optical system	reflector + interchangable lens plates
LED PWM Frequency	selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz
Beam angles (50%)	14° (with VN lens) 24° (with N lens) 35° (with M lens) 49° (with W lens) 22°x16° (with EN lens) 54°x18° (with EW lens)
Maximum Field angles (10%)	28° (with VN lens) 40° (with N lens) 63° (with M lens) 78° (with W lens) 41°x31° (with EN lens) 79°x39° (with EW lens)
Color temperature range	2.000K – 10.000K
Efficancy (max)	36lm/W
CRI/RA	97
TLCI	99
TM-30-15	Rf 96 / Rg 103
Luminous flux	29.596 lm
illuminance Lux @ 5m (very narrow lens)	8551 lx
illuminance Lux @ 5m (narrow lens)	4696 lx
illuminance Lux @ 5m (medium lens)	2229 lx
illuminance Lux @ 5m (wide lens)	1312 lx
illuminance Lux @ 5m (elliptical-narrow lens)	5512 lx
illuminance Lux @ 5m (elliptical-wide lens)	2263 lx

Dimensions & Weight

IP class	IP 65
Body material	Aluminum, Nylon
Lens material	Tempered glass front
Net dimensions incl. Yoke (w x h x d)	350 x 280 x 450mm
Net dimensions incl. Yoke inches (w x h x d)	13,78 x 11,02 x 17,72 inches
Physical Head Straight Up Height	516,5mm (20,33 inches)
Net weight (including Yoke)	13,5 kg (29,76lbs)
Tilt	360°
Tilt Locking System	Locking system with angle indicator

Electrical Data

AC power, max.	90 – 285V 50/60Hz
AC Power, nominal	100 – 260V 50/60Hz
Electrical Protection	Overload protection with automatic recover
Max power consumption	900W
Standby power	10,5W (230V) / 0,992PF (120V)
Max power thru @ 100 V	7A
Max power thru @ 230 V	11A
Power factor	0,968PF (230V) / 0,992PF (120V)
Power Supply Unit	Inbuilt auto-ranging electronic switch-mode
Power Linking	1 units @ 120 V; 3 units @ 230 V

Operation & Controller

DMX Functions	Dimmer, Dimmer Fine, Shutter, Duration, Hue, Saturation, Red, Red Fine, Green, Green Fine, Blue, Blue Fine, Lime, Lime Fine, CCT, Tint, Color Macro, Color Macro Crossfade, Device Settings
DMX channels	3CH CCT, 3CH RGB, 6CH RGB, 9CH RGB, 11CH RGB, 14CH RGB, 6CH DIRECT, 12CH DIRECT, 13CH DIRECT, 20CH DIRECT, <3CH HSI, 10CH HSI
DMX modes	12
Protocol	CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S USITT DMX512A RDM ANSI E1.20 Bluetooth Low Energy (BLE)
Setting and addressing	OLED graphical display / 4 controls
	RDM ANSI E1.20
Standalone mode	Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer
Wireless DMX	Lumen Radio with RDM (CRMX)
indicator	OLED graphical display
controls	4 touch sensitive, backlighted controls
Strobe	0-20Hz
DMX I/O	IP65 XLR 5-pin male/female
Power I/O	TRUE1 compatible input & link-thru sockets

Installation

Mounting point	1 x two quarter-turn locking points for optional Omega Bracket, centric hole 13mm (1/2″), 2x extra holes for TV Spigot
Orientation	Any
Rigging possibilities	Hanging or ceiling / pendant mount (Pendant blind caps included)
Safety features	rear mount for safety wire
Minimum distance from flammable materials	0,3 meters (11,8 inch)

Thermal Characteristics

Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	95%
Temperature range, Operating	-20°C to 45°C
Temperature range, Start-up	-20°C to 50°C
Temperature range, Storage	-20°C to 80°C
Thermal Protection	Automatic overtemperature protection

Included / Optional

Included items	2x radiator caps for pendant installation
	2 m power cable
Optional Accessories	Multiple Lens Plates (circular & elliptical), 8-Way Barndoor, Honey Comb, PO Yoke, Omega Bracket with quater-turn fasteners, Touring Cases
Color options	Black – RAL 9004 (Standard)
	White – RAL 9010 (on request)
	Custom color – any RAL (on request)

Conformity

CE – 2014/30/EU: EMC Directive

EN 55103-2

EN 55015

EN 61547

EN 61000-3-2

EN 61000-3-3

EN 55032

CE – 2014/35/EU: Low Voltage Directive

EN 60598-1

EN 60598-2-17

EN 62471

EN 60529

RoHS2 Directive

2011/65/EU

ETL C/US

FCC

UKCA

Order Number

E.SHOW maxx	Code
E.SHOW maxx TW+ Black	11201201

Accessories	Code
E.SHOW maxx Lens VN (Very Narrow)	11205001
E.SHOW maxx Lens N (Narrow)	11205101
E.SHOW maxx Lens M (Medium)	11205201
E.SHOW maxx Lens W (Wide)	11205301
E.SHOW maxx Lens EN (Elliptical Narrow)	11205401
E.SHOW maxx Lens EW (Elliptical Wide)	11205501
E.SHOW maxx Barndoor (black)	11205601
E.SHOW maxx Honey Comb (black)	11205701
E.SHOW maxx PO-Yoke	11205801
E.SHOW maxx Omega Bracket ST	90900002
E.SHOW maxx Floor Extension	13907201
