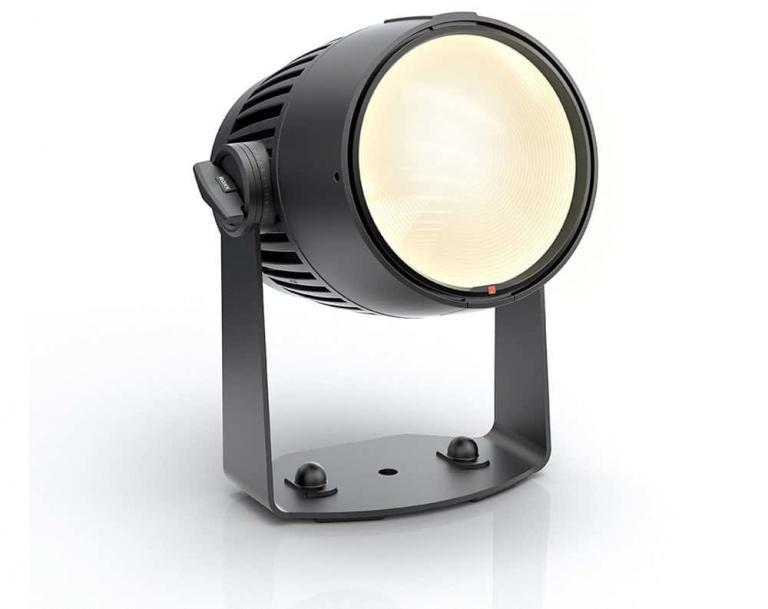

E.SHOW TW+

Single-Source LED – Perfect whites and brilliant colors

200W / 6 color LED
9.000lm luminous flux
CRI/Ra 97 / TLCI 98
IP65 In/Outdoor

1

The Fixture

Version

Whether stage, trade fair, corporate, theatre, broadcast or film, the E.SHOW TW+ convinces in every sort of application with excellent whites and a wide color range. The central, bundled 6 color LED, which was specially developed for this application, produces a very balanced and luminous light without color shadows.

Perfect Tunable White

With colors red, green, blue, amber, lime and cyan the ROXX 6 color LED engine produces a massive light luminosity with very high color rendering for up to 97 CRI/Ra and 98 TLCI.

This excellent reproduction quality is available across the entire white spectrum of 2.000-10.000 Kelvin, ensuring perfectly natural colors. The color temperature can be easily adjusted via +/- green function and magentashift.

Extended Color Range

The additional use of amber, lime and cyan extends the color spectrum by 15%, thus significantly increasing the color variety of the ROXX E.SHOW TW+.

Badget Text

ROXX Color Calibration

ROXX Color Calibration ensures excellent white tones (CCT 2.000-10.000K), precisely on the black body curve.

It also performs color matching over the entire range, ensuring uniform colors across all ROXX fixtures.

The special ROXX algorithm enables a user-friendly control of the 6 color LED via only three channels, both in RGB or HIS mode.

2

Quick and easy. The lens change

Bumper

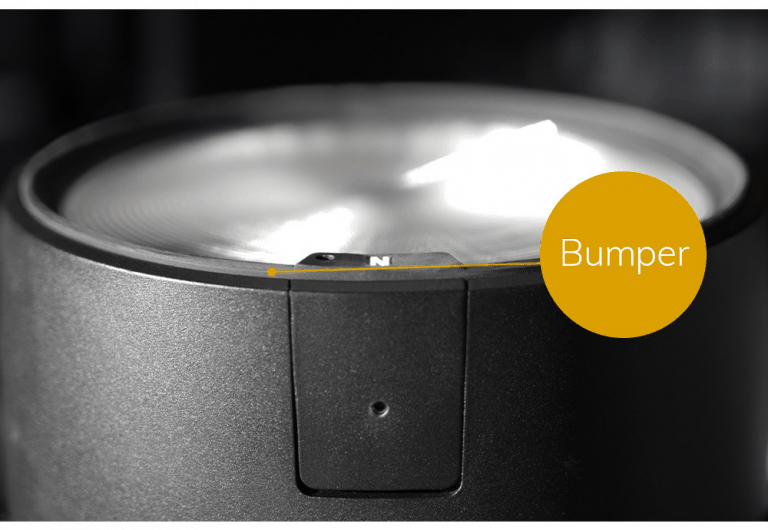

The rubberised lens ring is used for safely placing the fixture on its front, without leaving scratch marks on neither housing nor floor.

Lenses / R.LOK

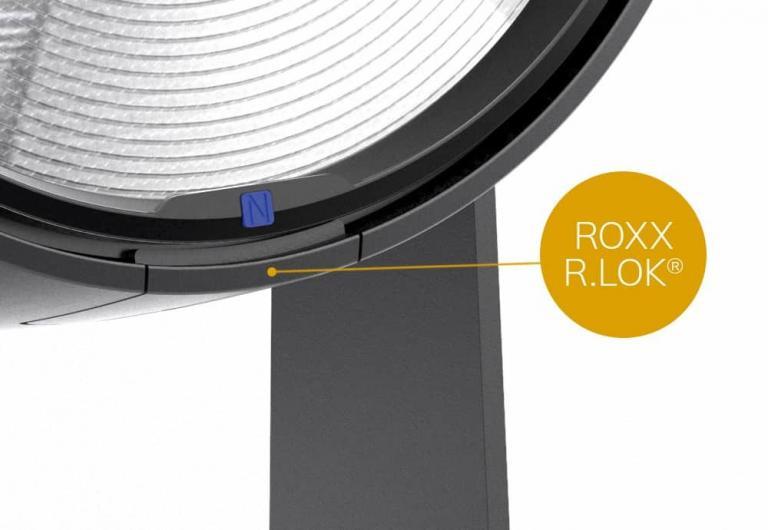

Thanks to the specially developed and patented ROXX® R.LOK technology, the lenses can be changed easily, quickly and without any tools. This allows the beam angle to be conveniently adjusted, whether from 19°, 36°, 59° or elliptical 17°x24° and 19°x57°. The 360° slot rotation also allows the elliptical lenses to be aligned continuously.

Color Code

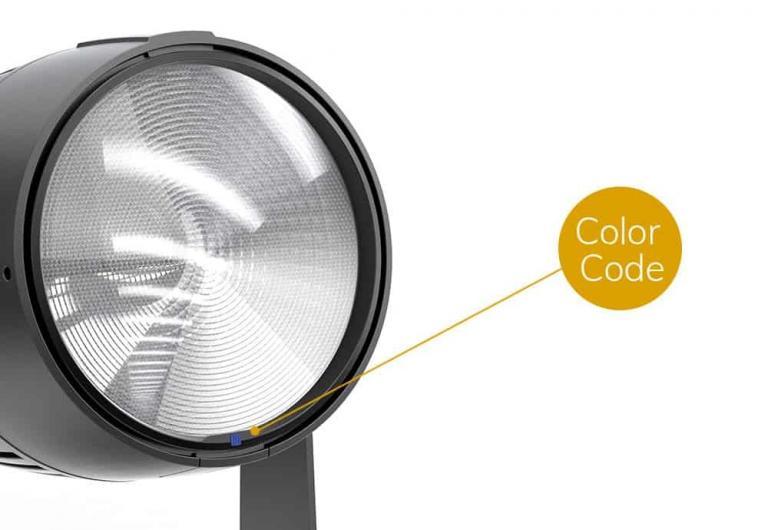

A color and letter code on the lens ring guarantees quick identification of the according beam angle when installed. Inside its touring case, the coding makes it easy to find the desired lens quickly.

3

Everything under control, App / Wireless

Smart control via ROXX.APP

The integrated Bluetooth interface enables direct control of the spotlights via Apple tablet or phone with ROXX.APP, without the need for additional hardware.

More about ROXX.APP

Wireless DMX

ROXX^® integrates the latest Wireless DMX technology from Swedish manufacturer Lumenradio and is already using the soon to be available DMX Mesh™ technology, bringing the expertise and benefits of mesh networking to the lighting industry.

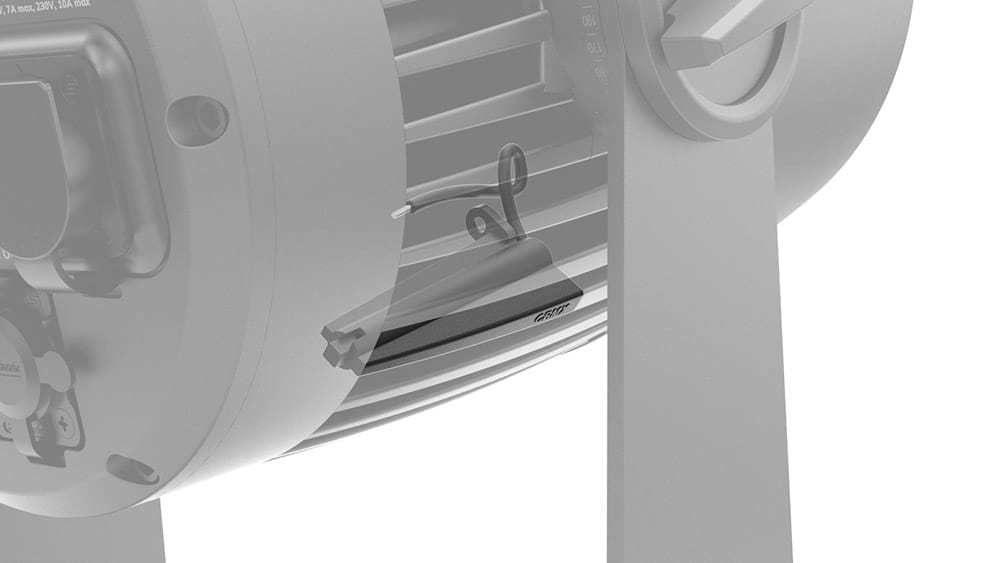

The CRMX transceiver module integrated in our fixture realises wireless DMX reception as well as a separate transmission option. A signal can thus be received via radio and transmitted via cable or alternatively be received via cable and transmitted via radio to other fixtures. Full bi-directional communication via RDM is supported in receive mode at the same time.

DMX / RDM

Via two IP65-certified 5-pole XLR sockets, the fixture can be integrated into a wired DMX line and furthermore uses via bi–directional RDM communication.

4

Ultra flexible. The accessories

PO YOKE

The additionally available PO Yoke empowers you to effortlessly bar-operated pan and tilt your luminaire, granting you full control over your lighting setup. The PO Yoke serves as the ultimate solution for mounting onto tripods or clamps, offering unparalleled flexibility in your designs. Crafted with attention to detail, the PO Yoke features a 28mm Junior Pin/TV-Spigot, providing a universal connection point for seamless integration with a variety of equipment.

Accessory Holder

The elegant design of the E.SHOW makes it the perfect luminaire even when a stylish appearance is a must. That is why we have placed great emphasis on inconspicuous technical details - the accessory holder is only placed on the luminaire when needed and otherwise is concealed in the case.

Barndoor

A 360° rotatable 8-bladed barndoor is available for optimal beam control.

Honey Comb

A honeycomb filter is available to limit stray light and lateral reflections.

DoPchoice Snapbag®

For an absolutely even illumination of motifs in camera applications, ROXX^® E.SHOW allows a direct connection of a foldable softbox from the established manufacturer DoPchoice, which was specially developed for the fixture.

Suspended luminaire

The E.SHOW also helps to create a uniform design language as a pendant luminaire. For this purpose, the handle is removed and the mounting points are simply closed with the caps provided. Stylish, isn’t it?

Full Anti-Glare Shield

The Full Anti-Glade Shield prohibits the direct view of the LED and thus reduces glare and stray light to a minimum.

5

Electronics & Software

High-resolution dimming

The advanced 16-bit technology enables the highest resolution of dimming behaviour and color mixing. Continuous dimming down to zero without visible jumps or color shifts is guaranteed.

Dimmer curves & Tungsten emulation

Four selectable dimmer curves with adjustable response and redshift function for tungsten emulation are also available.

Flicker-free

Six adjustable PWM frequencies up to 25kHz guarantee a flicker-free camera image even when taking high-speed recordings.

Stand Alone

Elaborate stand-alone modes, including cinema effects, various auto programs, customisable scenes, CCT, LEE adjusted color macros and custom color templates (RGBALC) enable great lighting effects without using external lighting controls.

Timer

Via the internal timer function, the stand-alone modes can be conveniently faded in and out after the fixture is switched on, without the need for an external control. Simultaneously, the timer function is available via cable as well as via wireless DMX for master & slave operation.

6

Always well shielded

An IP65 rating is just what you need to protect your product from ingress of dust and rain. Our products are extensively tested to meet these standards and make our fixtures multifunctional, safe and durable in any situation.

7

User-friendly down to the last detail

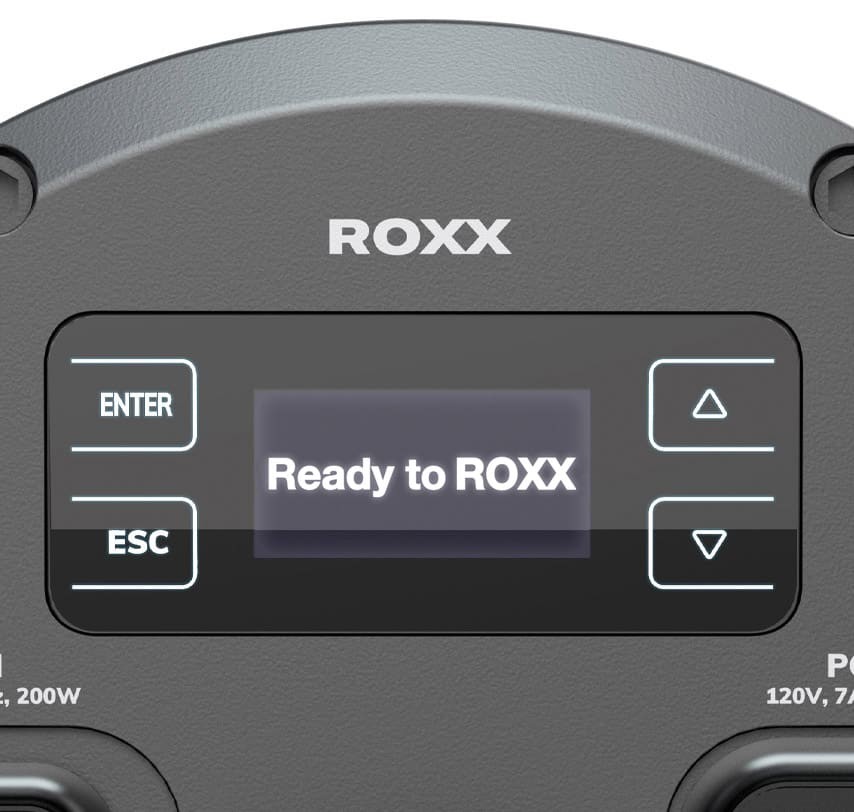

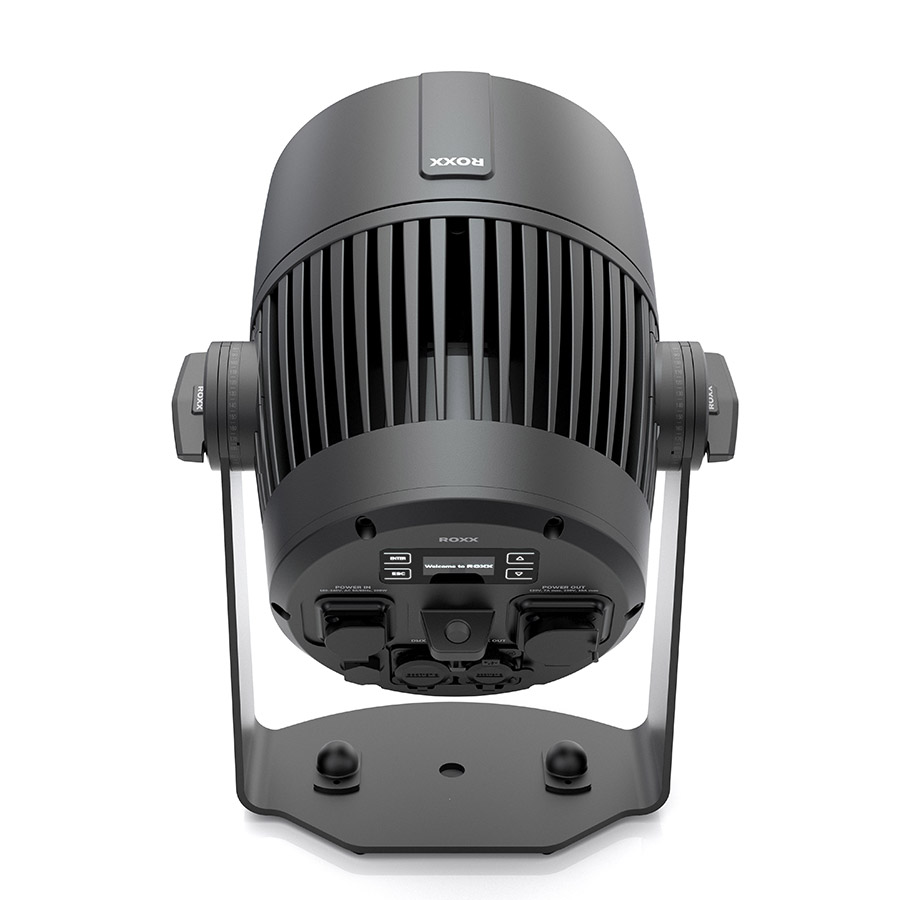

The OLED display ensures quick configuration of the headlamps. The backlit and touch sensitive buttons allow safe navigation even in dark surroundings. A convenient overhead installation of the spotlight can be realised through the automatic display flip function.

TW+ Version

Variable CCT plus saturated- to smooth pastel colors.

IP 65

The fixture is fully protected against dust and water jets from any direction.

ROXX® color calibration

ROXX^® color calibration guarantees vivid and uniform colors plus excellent whites precisley on the black body curve.

Dim to warm

Switchable Dim-To-Warm function to simulate traditional halogen fixtures while dimming down.

Dimming curves

Four high resolution dimming curves and adjustable dimming response to adapt to the respective application.

Master & Slave

Once the fixture is set to “Master” and on first postion of the chain, it controls the following “Slave” units.

Multiple Angles

Multi beam angles due to optional lenses.

Stand Alone

Extensive stand alone modes for brilliant lighting effects even without the need of external controller.

Flicker-free

Six selectable PWM frequencies up to 25kHz guarantees flicker free operation in front of camera, even at high-speed recordings.

Quicklight Function

Quick-light function allows a direct access to dimmer & CCT for easy and fast operation while setting lights.

Wireless Master & Slave

The device features wireless Master & Slave function so that Standalone modes can be easily passed through.

Green Solution

Long life-time of the LED and high energy saving make this product particularly environment-friendly.

Timer

Due the internal timer function the fixtures standalone modes can be easily fade in & out after switching on the device, without the need of external controller.

OLED Display

OLED display with four touch-sensitive buttons, backlight- and auto flip function for easy configuration.

ROXX.APP

Integrated bluetooth interface enables direct controlling with mobile devices via ROXX.APP without the need of extra hardware.

RDM enable

Remote Device Management enables bi-directional communication over DMX network, for external programming and monitring functions.

Temperature controlled fan

Temperature controlled fan for optimized and silent operation.

FCC

Besides the product compliance for european market this product is also FCC certified and complies to the requirements of the Federal Communications Commission.

W-DMX

Integrated wireless DMX receiver & transmitter from Lumenradio (CRMX) guarantees safe radio transmission of DMX data. Receive mode is full RDM-enabaled.

16-Bit Technology

16-bit technology for high-resolution color mixing and ultra-smooth dimming behaviour.

Intertek

Besides the product compliance for european market this product is also ETL certified and complies to the safety norms and requirements for North-America.

Technical Data

Photometrics

LED expected lifetime	50.000 hours
Lightsource	1x200W RGBLAC
Type of optical system	reflector + interchangable lens plates
LED PWM Frequency	selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz
Beam angles (50%)
	19° (with narrow fresnel lens)
	36° (with medium lens)
	59° (with wide lens )
	17°x24° (with elliptical narrow lens)
	19°x57° (with elliptical wide lens)
Maximum Field angles (10%)
	36° (with narrow fresnel lens)
	72° (with medium fresnel lens)
	88° (with wide compound-eye lens )
	35°x46° (with elliptical-narrow lens)
	43°x81° (with elliptical-wide lens )
Color temperature range	2.000K – 10.000K
CRI / Ra	97
TLCI	98
TM-30-15	Rf 96 / Rg 103
Efficancy (max)	49,8 lm/W
Luminous flux	9.049 lm
illuminance Lux @ 5m (narrow lens)	1.690 lx
illuminance Lux @ 5m (medium lens)	471 lx
illuminance Lux @ 5m (wide lens)	251 lx
illuminance Lux @ 5m (elliptical-narrow lens)	1.191 lx
illuminance Lux @ 5m (elliptical-wide lens)	490 lx

Dimensions & Weight

IP class	IP65
Body material	Aluminium die-cast
Lens material	Tempered glass front
Net dimensions (w x h x d)	261 x 311 x 258 mm
Net dimensions inches	10,3 x 12,2 x 10,1 inches
Physical Head Straigt Up Height	339 mm
Net weight	5,7 kg (12,6 lbs)
Tilt	360°
Tilt Locking System	Locking system with angle indicator

Electrical Data

AC power, max.	90 – 285V 50/60Hz
AC Power, nominal	100 – 260V 50/60Hz
Electrical Protection	Overload protection with automatic recover
Max Inrush Current	50A
Max power consumption	220W
Typical power consumption	153W
Standby power	6,7W
Max power thru @ 100 V	8A
Max power thru @ 230 V	8A
Power factor	0,92 PF (230 V) / 0,99 PF (100V)
Power Supply Unit	Inbuilt auto-ranging electronic switch-mode
Power Linking	4 units @ 120 V; 8 units @ 230 V

Operator & Controller

DMX Functions	Dimmer, Dimmer Fine, Shutter, Duration, Hue, Saturation, Red, Red Fine Green, Green Fine, Blue, Blue Fine, Amber, Amber Fine, Lime, Lime Fine, Cyan, Cyan Fine, CCT, Tint, Color Macro, Color Macro Crossfade, Device Settings
DMX channels	3CH CCT, 3/6/9/11/14CH RGB, 6/12/13/20CH DIRECT, 3/10CH HSI
DMX modes	12
Protocol	CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
	USITT DMX512A
	RDM ANSI E1.20
	Bluetooth (Low Energy)
Setting and addressing	OLED graphical display / 4 controls
	RDM ANSI E1.20
Standalone mode	Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer
Wireless DMX	Lumen Radio with RDM (CRMX)
indicator	OLED graphical display
controls	4 touch sensitive, backlighted controls
Strobe	0-20Hz
DMX I/O	IP65 XLR 5-pin male/female
Power I/O	TRUE1 compatible input & link-thru sockets

Installation

Mounting point	1 x two quarter-turn locking points for optional Omega Bracket, centric M12 hole
Orientation	Any
Rigging possibilities	Hanging or ceiling / pendant mount (Pendant blind caps included)
Safety features	rear mount for safety wire
Minimum distance from flammable materials	0,3 meters (11,8 inch)

Thermal Characteristics

Cooling	Active, Forced Air, Temperature-regulated
Humidity (max.)	95%
Temperature range, Operating	-20°C to 45°C
Temperature range, Start-up	-20°C to 50°C
Temperature range, Storage	-20°C to 80°C
Thermal Protection	Automatic overtemperature protection

Included / Optional

Included items	2x radiator caps for pendant installation
	2 m power cable
Optional Accessories	Multiple Lens Plates (circular & elliptical), Snapbag™, Snapgrid™ 30°, 40°, 50°, Accessory Adapter, 8-Way Barndoor, Honey Comb, Full Anti-Glare Shield, Gel-Frame, Omega Bracket with quater-turn fasteners, Touring Cases, PO Yoke
Color options	Black – RAL 9004 (Standard)
	White – RAL 9010
	Custom color – any RAL

Compliance

CE – 2014/30/EU: EMC Directive

EN 55103-2

EN 55015

EN 61547

EN 61000-3-2

EN 61000-3-3

EN 55032

CE – 2014/35/EU: Low Voltage Directive

EN 60598-1

EN 60598-2-17

EN 62471

EN 60529

RoHS2 Directive

2011/65/EU

ETL C/US

FCC

UKCA

Order Number

E.SHOW	Code
E.SHOW TW+ Black	11202001
E.SHOW TW+ White	11202002
E.SHOW TW+ Custom	11202003
E.SHOW FC Black	11202101
E.SHOW FC White	11202102
E.SHOW FC Custom	11202103
E.SHOW T Black	11202201
E.SHOW T White	11202202
E.SHOW T Custom	11202203
E.SHOW D Black	11202301
E.SHOW D White	11202302
E.SHOW D Custom	11202303

E.SHOW	Code
E.SHOW TW+ PO YOKE	11202023
E.SHOW FC PO YOKE	11202123
E.SHOW T PO YOKE	11202223
E.SHOW D PO YOKE	11202323

Accessories	Code
E.SHOW Lens Narrow (black)	11207001
E.SHOW Lens Medium (black)	11207101
E.SHOW Lens Wide (black)	11207201
E.SHOW Lens Elliptical Narrow (black)	11207301
E.SHOW Lens Elliptical Wide (black)	11208201
E.SHOW Accessory Holder Safety Free(black)	11907423
E.SHOW PO YOKE (black)	11906801
E.SHOW Barndoor (black)	11907501
E.SHOW Honey Comb Safety Free (black)	11907623
SHOW Gel Frame (black)	11907701
E.SHOW Omega Bracket ST (black)	90900002
SHOW Full Anti-Glare Shield (black)	11308401
SHOW Full Anti-Glare Shield (custom)	11308403
SHOW Snapgrid 40° DoPchoice (black)	11208501
SHOW Snapbag by DoPchoice (black)	11908301
E.SHOW Case 4 (black)	11907801
E.SHOW Case 6 (black)	11907901
E.SHOW Case 8 (black)	11908001
